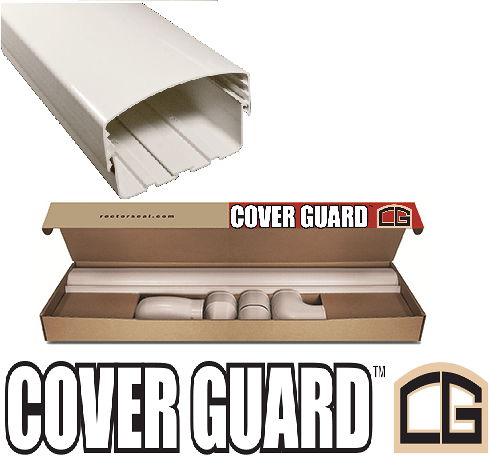

4.5” Expandable Line Cover in Minisplitwarehouse.com Choose from more than 200 products that suits your needs exactly! Shop 4.5” Expandable Line Cover Heavy Duty by CoverGuard. Price: $169.99 ex. tax. Call us 877-770-3548 or visit our website.
Listed below are standard features for Cover Guards unique line set cover system.Guards single size expands in depth to save you time and money. The multi zone mini split solution. Cover Guard is heavy duty, its the strongest line set cover on the market.
The Cover Guards 4-stage adjustability is perfect to accommodate multiple zone line sets and allow the duct to expand from 2 to 4 inches deep.
Stay-Clean peel-n-go film allows for a no-fuss clean-up following an install.
Free-sliding zip-tie clips are pre-installed, relocating quickly and easily to position the zip tie where its needed most.
Components are paintable (see instructions for painting directions).
Components are UV stabilized and tested to temperatures from -4 degrees F to 140 degrees F.
Cover Guard components do not release under pressure. In fact, the greater the pressure exerted against the inside walls, the tougher the structure becomes, because the pressure causes the pieces to lock more tightly.
Fittings can be opened and closed as needed, so the system can be adjusted as necessary at any time.
Cam screws are constructed of hardened gun stock plastic. They will never rust. Quarter turn of the screw locks it in place for quick installation.
Ordering with a system? Use the Following Coupon Code to get $19.99 OFF: CGKIT (Coupon Only Valid with Qualified Systems)
Ducted Hyper Heat Pump Wholesale Lots in Minisplitwarehouse.com Our store offers a huge selection of Multi Zone Ductless Mini Splits online at wholesale prices. Get 6 Midea 60000 BTU 18 SEER Ducted Mini Split Hyper Heat Pump AC Lot. Price: $22,845.98 ex. tax. Call us 877-770-3548 or visit our website.
Wholesale Lot :6x60000 BTU Midea Ducted System /18 SEER
Included in Package: *(6) Indoor Ducted Units with Programmable Thermostats *(6) Hyper Heat Pump Outdoor Units (-22F/-13F)
INDOOR KEY FEATURES
Built-In Condensate Lift Pump Supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit.
FEATURES
Available in 208/230V
Up to 18.0 SEER and up to 12.0 HSPF when paired with DLCLR outdoor unit.
Modes: Cool, Heat, Dry, Fan, Auto
Horizontal installation ONLY (Vertical is allowed on 36/48K Models)
Up to 0.8 in WG
Rear Return ONLY (bottom return allowed on 36/48K Models)
Built-in condensate lift pump
Follow Me (senses temperature at optional handheld remote)
Heating Setback (46° F Heating Mode)
Quiet indoor operation, as low as 51 dB(A)
Aluminum Golden Hydrophilic pre-coated fins
Compatible With:
DLCLR Outdoor Unit Single Zone
Color: NoneDOCUMENTS SPECIFICATIONS
OUTDOOR KEY FEATURES
Longer Piping Lengths Piping flexibility up to a total piping length of 213 ft. (65 m.)
Low Ambient Cooling With built-in Low Ambient Kit or special designed PCB, outdoor fan speeds can be changed automatically based on the temperature. The unit can run cooling operation even in low ambient temperatures.
FEATURES
Available in 208/230V
Built-in basepan heater
Condenser high-temperature protection
Refrigerant leakage detection
Quiet outdoor operation, as low as 64 dB(A)
Aluminum Golden Hydrophilic pre-coated fins
Piping length 213 ft. (65 m)
Cooling operating range
-13° ~ 122° F (-25° ~ 50° C)
Heating operating range
-22° ~ 86° F (-30° ~ 30°C)
Compatible With:
DLFLD Ducted
DLFLF Console
Color: Clay
DOCUMENTS SPECIFICATIONS
Wholesale Lot :6x60000 BTU Midea Ducted System /18 SEER
Included in Package: *(6) Indoor Ducted Units with Programmable Thermostats *(6) Hyper Heat Pump Outdoor Units (-22F/-13F)
INDOOR KEY FEATURES
Built-In Condensate Lift Pump Supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit.
FEATURES
Available in 208/230V
Up to 18.0 SEER and up to 12.0 HSPF when paired with DLCLR outdoor unit.
Modes: Cool, Heat, Dry, Fan, Auto
Horizontal installation ONLY (Vertical is allowed on 36/48K Models)
Up to 0.8 in WG
Rear Return ONLY (bottom return allowed on 36/48K Models)
Built-in condensate lift pump
Follow Me (senses temperature at optional handheld remote)
Heating Setback (46° F Heating Mode)
Quiet indoor operation, as low as 51 dB(A)
Aluminum Golden Hydrophilic pre-coated fins
Compatible With:
DLCLR Outdoor Unit Single Zone
Color: NoneDOCUMENTS SPECIFICATIONS
OUTDOOR KEY FEATURES
Longer Piping Lengths Piping flexibility up to a total piping length of 213 ft. (65 m.)
Low Ambient Cooling With built-in Low Ambient Kit or special designed PCB, outdoor fan speeds can be changed automatically based on the temperature. The unit can run cooling operation even in low ambient temperatures.

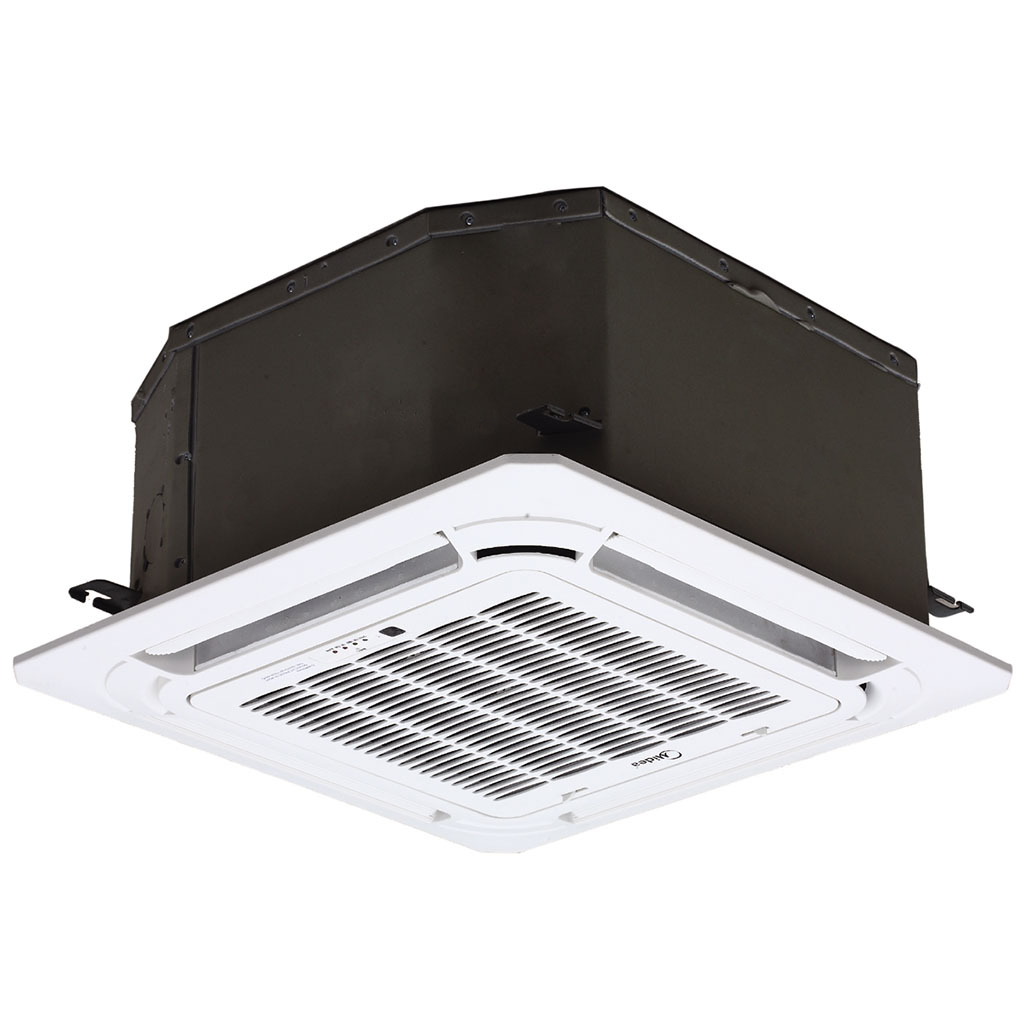

Ceiling Cassette Indoor Unit in Minisplitwarehouse.com Ceiling cassettes are installed into the ceiling where the mechanics are hidden. Get 12000 btu DLFSC Ceiling Cassette Indoor Unit. Price: $607.69 ex. tax. Call us 877-770-3548 or visit our website.
Built-in Condensate Lift pump The cassette is supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit.
Integrated Electrical Components Easy maintenance with the circuit box inside the unit, provides a more compact size for easier installation.
FEATURES
Available in 208/230V
Up to 22.5 SEER and 12.0 HSPF when paired with DLCSRA outdoor unit
Modes: Cool, Heat, Dry, Fan, Auto
Auto-restart function
Louver control (fixed or swing)
Three fan speeds
Outside air intake
Built-in condensate lift pump
Follow Me (senses temperature at handheld remote)
Heating Setback (46° F Heating Mode)
Quiet indoor operation, as low as 27 dB(A)
Aluminum Golden Hydrophilic pre-coated fins
Grille/ceiling panel 3 x 3 sizes 24 to 48 KSALG0201AAA

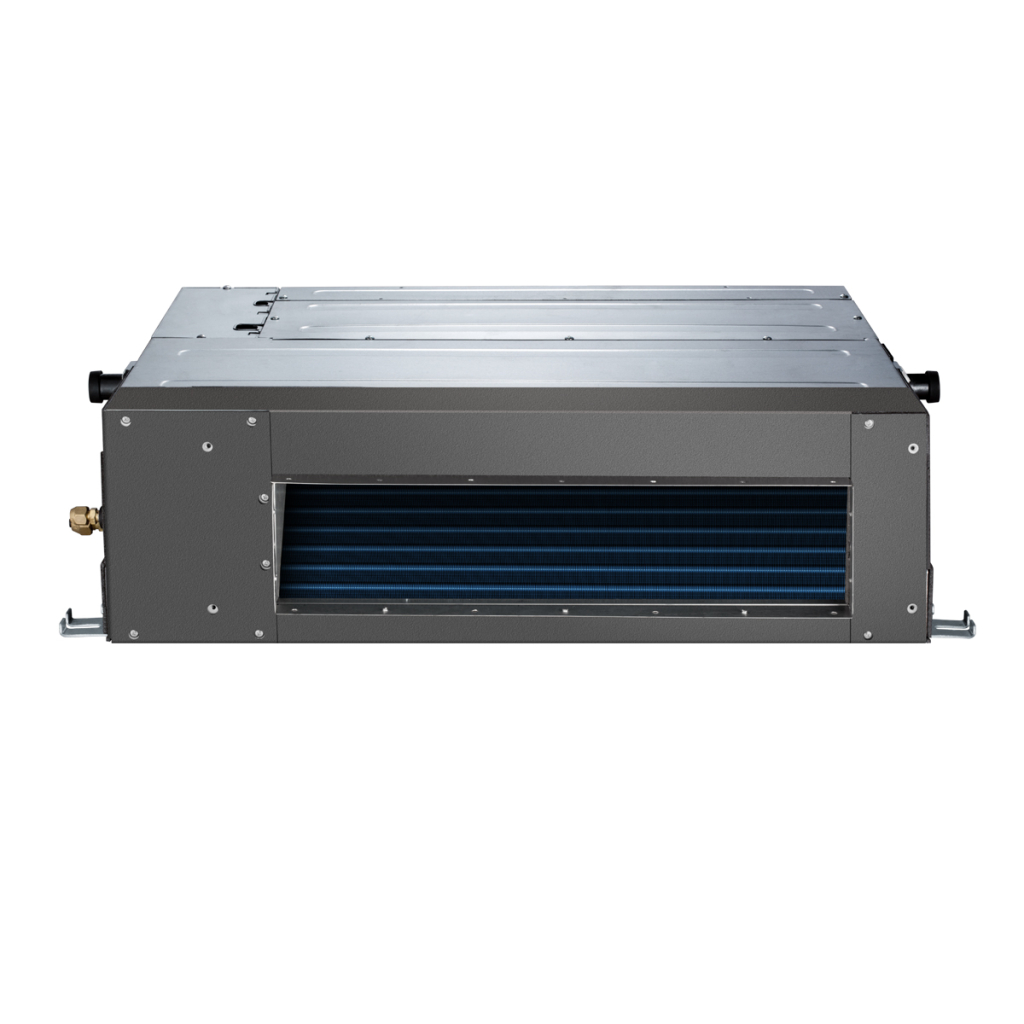

Ducted Indoor Unit in Minisplitwarehouse.com Ducted Heat Pumps provide discreet air conditioned comfort. Shop 9000 btu DLFSD Ducted Indoor Unit. Price: $607.37 ex. tax. Call us 877-770-3548 or visit our website.
Vertical or Horizontal Installation Designed for maximum installation flexibility with the built-in secondary drain pan which allows the unit to be mounted vertically for either a floor or ceiling-concealed installation depending on existing conditions.
Built-In Codensate Lift Pump Supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit.
FEATURES
Available in 208/230V
Up to 22.5 SEER and up to 12.0 HSPF when paired with DLCSR outdoor unit.
Modes: Cool, Heat, Dry, Fan, Auto
Vertical or horizontal installation
Up to 0.64 in WG
Rear or bottom return
Constant CFM operation
Built-in condensate lift pump
Follow Me (senses temperature at optional handheld remote)

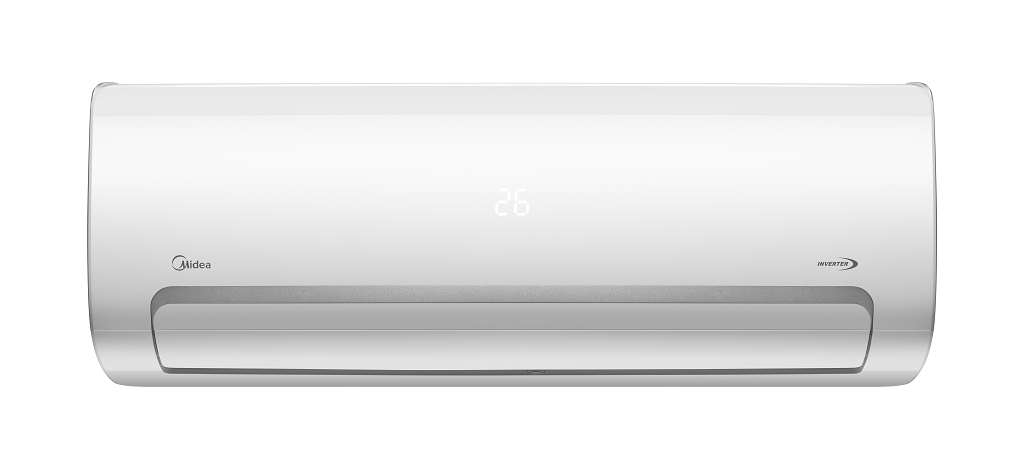

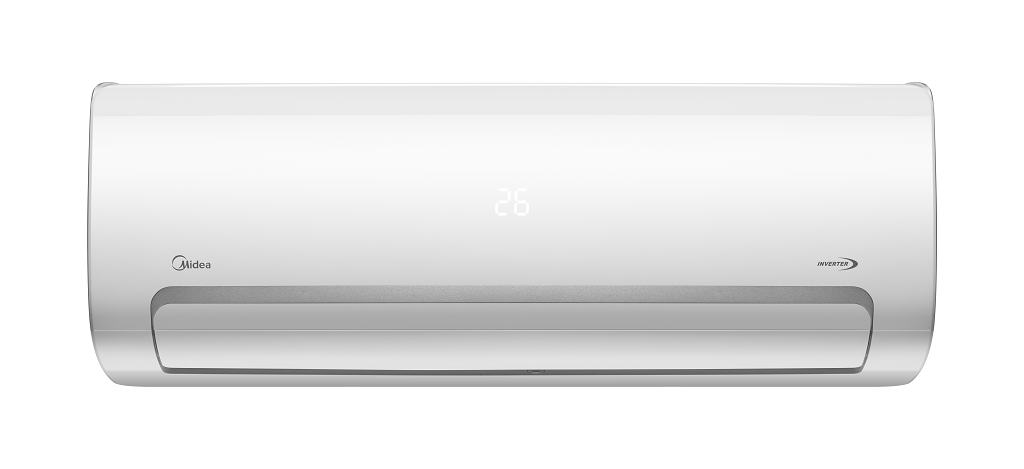

High Wall Indoor Unit in Minisplitwarehouse.com Choose from more than 200 products that suits your needs exactly! Get 12000 btu DLFSH High Wall Indoor Unit 110v. Price: $440.81 ex. tax. Call us 877-770-3548 or visit our website.
ECO Mode The intelligent 8-hour night cycle program saves up to 60% of energy to make it more comfortable at night when sleeping.
Follow Me Built-in temperature sensor in the Remote Controller will sense its surrounding temperature and adjust the room temperature more accurately to provide comfort.
FEATURES
Available in 110V
Up to 24.7 SEER and 11.0 HSPF when paired with the DLCSR outdoor unit

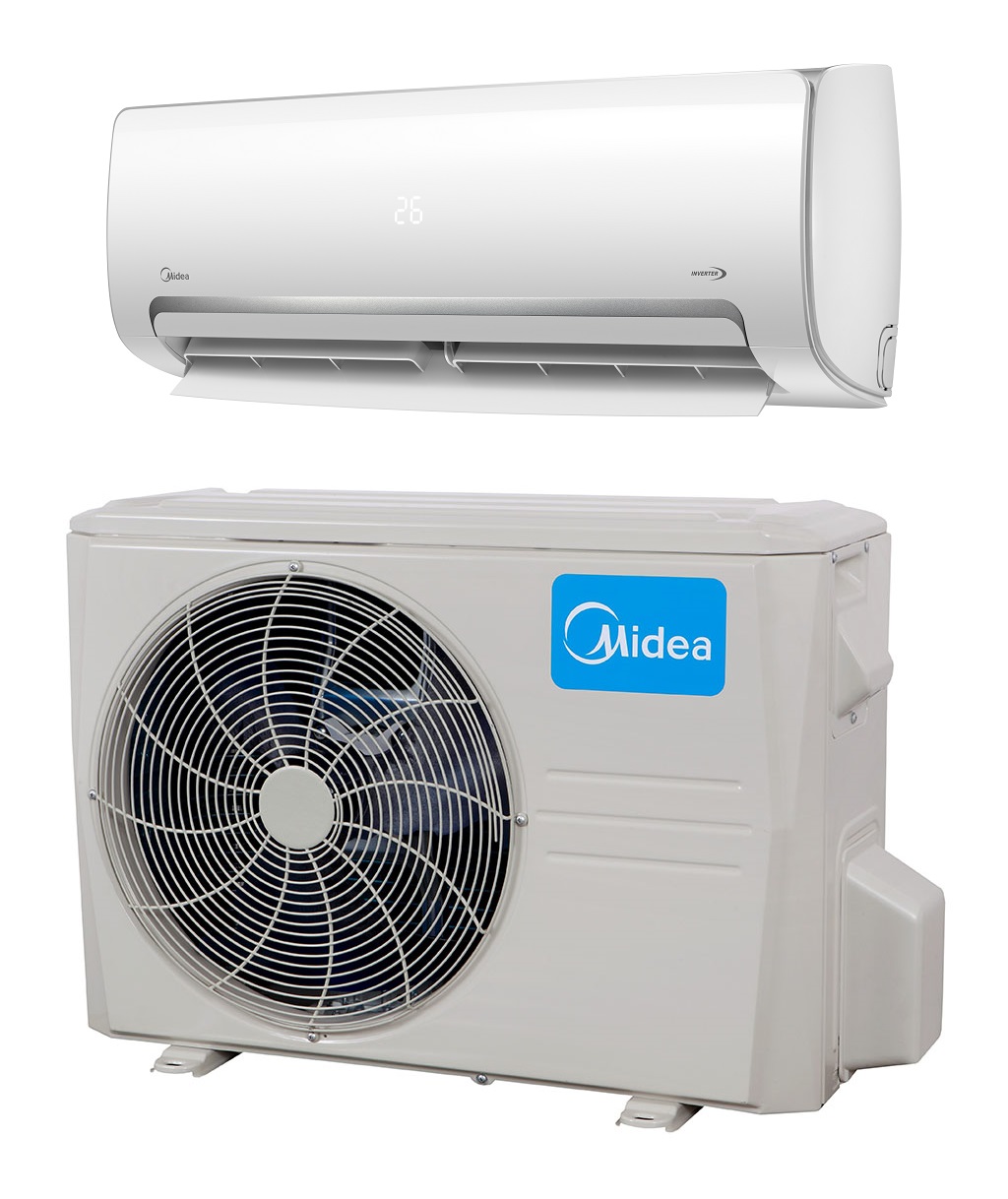

Mini Split Hyper Heat Pump AC in Minisplitwarehouse.com Discover the best heating and air conditioning products for your home. Get Midea 12000 Btu 110v 20 SEER Ductless Mini Split Hyper Heat Pump AC. Price: $1,238.84 ex. tax. Call us 877-770-3548 or visit our website.
Extra Low Temperature Heating For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -13° F (-25° C), making this a primary heat source and eliminating the need for a backup heat source.
Stepless Frequency Adjustment Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.
FEATURES
Available in 110v
Built-in basepan heater
Auto-restart function
Condenser high-temperature protection
Refrigerant leakage detection
Quiet outdoor operation, as low as 54.6 dB(A)
Aluminum Golden Hydrophilic pre-coated fins
Piping length 82 ~ 164 ft. (25 ~ 50 m.)
Cooling operating range
-13° ~ 122° F
Heating operating range -13° ~ 86° F
Compatible With:
DLFSHA High Wall (110v)
Color: Clay
DOCUMENTS SPECIFICATIONS
Indoor KEY FEATURES
ECO Mode The intelligent 8-hour night cycle program saves up to 60% of energy to make it more comfortable at night when sleeping.
Follow Me Built-in temperature sensor in the Remote Controller will sense its surrounding temperature and adjust the room temperature more accurately to provide comfort.
FEATURES
Available in 110V
Up to 24.7 SEER and 11.0 HSPF when paired with the DLCSRA outdoor unit

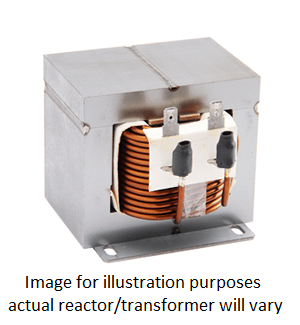

Reactor/Transformer in Minisplitwarehouse.com Lowest price on best accessories and parts for Mini Split units. Free shipping! Shop Reactor/Transformer for Mini Split Systems. Price: $159.99 ex. tax. Call us 877-770-3548 or visit our website.

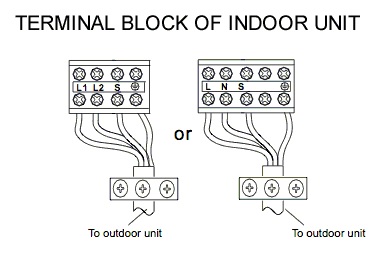

Indoor Wiring Terminal in Minisplitwarehouse.com Choose from more than 200 products that suits your needs exactly! Get Indoor Wiring Terminal For Ductless Mini Split Wall Mount Indoor Unit. Price: $49.99 ex. tax. Call us 877-770-3548 or visit our website.
Please make sure to email us pictures and models before ordering, so we can make sure we find the right part before you spend anything. Email is parts@minisplitwarehouse.com
Image used is for illustration purposes, your terminal may vary.
Expandable Line Cover in Minisplitwarehouse.com Why shop anywhere else when we have the best deals around? Get 3” Expandable Line Cover Heavy Duty by CoverGuard. Price: $139.99 ex. tax. Call us 877-770-3548 or visit our website.
Cover Guards single size expands in depth to save you time and money. The best mini split solution (Best for Single Zone Systems, any BTU/Ton!). Cover Guard is heavy duty, its the strongest line set cover on the market.
*Also suitable for smaller 2 zone applications (using 1/4 & 3/8 Copper Lines)
The Cover Guards 4-stage adjustability is perfect to accommodate single zone line sets and allow the duct to expand.
Stay-Clean peel-n-go film allows for a no-fuss clean-up following an install.
Free-sliding zip-tie clips are pre-installed, relocating quickly and easily to position the zip tie where its needed most.
Components are paintable (see instructions for painting directions).
Components are UV stabilized and tested to temperatures from -4 degrees F to 140 degrees F.
Cover Guard components do not release under pressure. In fact, the greater the pressure exerted against the inside walls, the tougher the structure becomes, because the pressure causes the pieces to lock more tightly.
Fittings can be opened and closed as needed, so the system can be adjusted as necessary at any time.
Cam screws are constructed of hardened gun stock plastic. They will never rust. Quarter turn of the screw locks it in place for quick installation.
Ordering with a system? Use the Following Coupon Code to get $19.99 OFF: 3CGKIT (Coupon Only Valid with Qualified Systems)

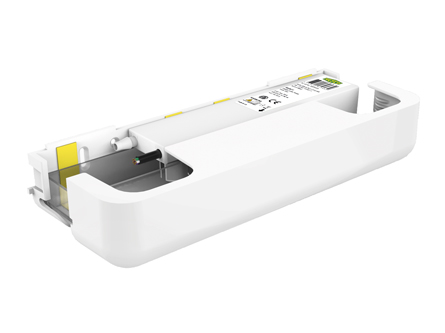

Gobi II Condensate Pump in Minisplitwarehouse.com We can help you decide what suits your needs. Shop Gobi II Condensate Pump for Ductless Air Conditioner – Refco. Price: $129.99 ex. tax. Call us 877-770-3548 or visit our website.
The all new Gobi II condensate pump has been completely redesigned retaining all the good features you like and upgrading everything else. The Gobi II has a massive flow rangeallowing its use from 6,000 Btu/H (1.75kW) up to 120,000 Btu/H (35 kW). Its digital water sensor, universal voltage and user configurable flow ensure it is the strongest, quietest under A/C mounted condensate pump on the market today.
Technical Data:
Maximum flow rate:
11 GPH (42 l/h)
Maximum suction:
10 ft. (3 m) self priming
Maximum head:
65.60 ft. (20 m)
Sound:
20dBA at 3 ft. (1m) / 19 dBA at 1 m EN ISO 3744:2010
Wireless access:
Remote wireless access with smartphone (optional feature)
Voltage:
100 ~ 240 VAC 50/60 Hz auto sensing universal power input
Power:
8 watts during maximum operation at 110V
Alarm relay:
10 Amps NO/NC contacts with integratedd replaceable HRC 10A glass fuse 5 × 20 mm
Weight:
1.3 Lbs.
Discharge star tube:
1/4“ I.D. (6.25 mm) × 3.3 ft. (1 m)
Protection:
Class II double insulation, Fully potted, IP-44
Operation temp:
Ambient 37.5°F to 104°F (3°C to 40°C) / Water 41°F to 77°F (5°C to 25°C)
Compliance:
Conforms to UL: 778 and certified to CSA C22.2 #68
