Slim Ducted Mini Split Heat Pump AC in Minisplitwarehouse.com

Get AirCon 24000 BTU 18 SEER Slim Ducted Mini Split Heat Pump AC.

Included In Package:
(1) One Indoor Slim Ducted (with Wired Thermostat)
(1) One Heat Pump Outdoor Unit (5F/5F)
Factory Warranty:
7Yr Compressor/5Yr Parts

PRICE: $1,928.99 ex. tax

24000 btu mini split, 24000 btu mini split ac, 24000 btu mini split air conditioner, 24000 btu mini split heat pump, 24000 btu ductless mini split (2 ton)

ducted mini split, “slim” ducted mini split, ducted mini split ac, ducted mini split air conditioner, ducted mini split heat pump, ducted heat pump, ducted ac, ducted air conditioner

LINK:
https://www.minisplitwarehouse.com/category/24000_btu_mini_split_prices

https://www.minisplitwarehouse.com/category/slim-ducted

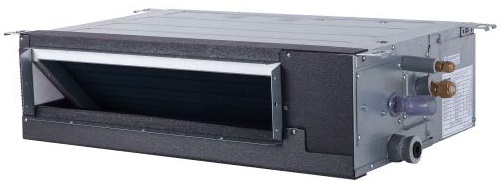

*New AirCon Slim Ducted Heat Pump AC System

*Included In Package:
*(1) One Indoor Slim Ducted (with Wired Thermostat)
*(1) One Heat Pump Outdoor Unit (5F/5F)



⇓ See Related Items Below For More Accessories ⇓

KEY FEATURES

• Vertical or Horizontal Installation
  Designed for maximum installation flexibility with the built-in secondary drain pan which allows the unit to be mounted vertically for either a floor or ceiling-concealed installation depending on existing conditions.
• Built-In Codensate Pump

FEATURES

• Available in 208/230V
• Modes: Cool, Heat, Dry, Fan, Auto
• Vertical or horizontal installation
• Rear or bottom return
• Constant CFM operation
• Built-in condensate pump
• Follow Me (senses temperature)
• Aluminum Hydrophilic pre-coated fins
• Wired Thermostat Included

DOCUMENTS WIKI

24000 Btu DLFSA Ducted Indoor Unit in Minisplitwarehouse.com

Get 24000 Btu DLFSA Ducted Indoor Unit.

Compatible With:

DLCSR(A/B) Outdoor Unit Single Zone
DLCMR Outdoor Unit Multi-Zone

PRICE: $1,419.99 ex. tax

24000 btu mini split, 24000 btu mini split ac, 24000 btu mini split air conditioner, 24000 btu mini split heat pump, 24000 btu ductless mini split (2 ton)

ducted mini split, “slim” ducted mini split, ducted mini split ac, ducted mini split air conditioner, ducted mini split heat pump, ducted heat pump, ducted ac, ducted air conditioner

LINK:
https://www.minisplitwarehouse.com/category/24000_btu_mini_split_prices
https://www.minisplitwarehouse.com/category/slim-ducted

KEY FEATURES

• Installation Flexibility
  A built-in secondary drain allows the unit to be mounted vertically (up flow or down flow) or horizontally (left or right), enabling multi-position installation. All three sizes are capable of operating as traditional central ducted systems when paired with a compatible single zone outdoor unit.
• Multi-Zone Compatibility
  The size 24 Air Handler can connect to select multizone outdoor units to create one integrated system, enabling unique zoned comfort and efficiency.
• Efficient Comfort
  As an alternate to gas furnaces, reduce the use of fossil fuels and experience cleaner energy and efficiency levels that meet many local and federal requirements.
• CONTROLS: Factory installed 24V interface for third-party thermostat compatibility* (*Wireless Remote included, **Wired thermostat not included)
• Indoor copper connections require brazing, while outdoor connections are standard hvac flared.
• ACCESSORIES: Electric Heat Packages EHKMA05KN, EHKMA10KN, HKMA15KN, EHKMA20KN (*Optional, Requires Separate 208-230V Power)

  FEATURES
• Modes: Cool, Heat, Dry, Fan, Auto
• 2 Ton: 20.0 SEER/ 12.5 EER/ 10.4 HSPF/ COP: 47F (3.48), 17F (2.3), 5F (2.1)
• Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
• Total system static pressure up to 0.8 in. W.C
• Less than 2% air leakage
• Quiet indoor operation
• Anti-corrosive fin coating
• Extreme heating operation in as low as -22° F (-30° C) based on outdoor unit pairing
• Optional Electric Heat Packages available (5, 10, 15 and 20 KW)
• Built-in third-party thermostat compatibility (Single Stage): Not Included.

Compatible With:

• DLCSR(A/B) Outdoor Unit Single Zone
• DLCMR Outdoor Unit Multi-Zone

DOCUMENTS SPECIFICATIONS

Ducted Indoor Unit in Minisplitwarehouse.com We have a variety of air conditioners for sale. Ducted air systems are the most common type of central heating and cooling used. Get 24000 btu ASLEK Ducted Indoor Unit. Price: $769.13 ex. tax. Call us 877-770-3548 or visit our website.

LINK:
https://www.minisplitwarehouse.com/category/slim-ducted

https://www.minisplitwarehouse.com/category/24000_btu_mini_split_prices

KEY FEATURES

• Vertical or Horizontal Installation
  Designed for maximum installation flexibility with the built-in secondary drain pan which allows the unit to be mounted vertically for either a floor or ceiling-concealed installation depending on existing conditions.
• Built-In Codensate Pump

FEATURES

• Available in 208/230V
• Up to 18 SEER and up to 10 HSPF when paired with ASLC outdoor unit.
• Modes: Cool, Heat, Dry, Fan, Auto
• Vertical or horizontal installation
• ESP Up to 100Pa
• Rear or bottom return
• Constant CFM operation (706 CFM)
• Built-in condensate pump
• Follow Me (senses temperature)
• Quiet indoor operation, as low as 36 dB(A)
• Aluminum Golden Hydrophilic pre-coated fins
• Wired Thermostat Included

Compatible With:

• ASLC Outdoor Unit Single Zone
• AMSC Outdoor Unit Multi-Zone

Color: NoneDOCUMENTS WIKI
