Daikin 2×24000 Btu Dual Zone in Minisplitwarehouse.com Get Daikin 2×24000 Btu Dual Zone Mini Split Heat Pump Air Conditioner. Price: $5,291.99 ex. tax. Call us 877-770-3548 or visit our website.
*This Package Includes:
*(1) Outdoor Unit
RMXS48LVJU: 48000 Btu
(Allows up to 62,400 Btu)
(up to 18.8 SEER)
Features Include:
∼Heats & Cools (5F/23F)
-Max Allowed Total Copper Lines 633′-
Cut Sheet Brochure
Specifications

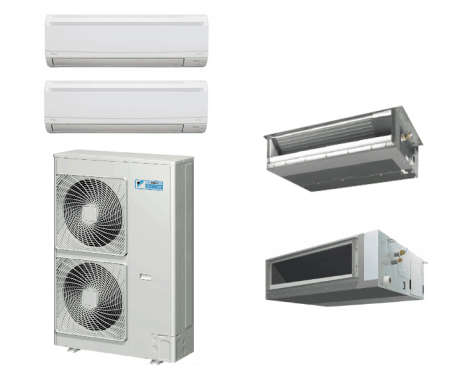

*(2) Indoor Units
(CTXS)24LVJU: 24000 Btu Wall Mounts
(includes remotes)
*Make sure not to exceed the allowed indoor combinations when upgrading*
-Please contact us before or after ordering, we have software that can validate combinations-
Allowed Indoor Combinations *Branch Box (BPMK)/REFNET Joint (KHRP) are required other sellers do not include this*
*(1) BPMKS048A2U: 2 Port Branch Boxes
*(25′) Copper Line (3/8” & 3/4”)
**Copper Lines for indoor units to BPMK are NOT INCLUDED**
(Please see dropdown boxes to add)
MAX ALLOWED Copper =633′
-BPMK requires 2-wire communication & 3-wire power (Not Included/Offered)-
-Wires we do offer as an option are 4-wire from the BPMK to the indoor unit-
_________________________________________________________
*With This Package “CUSTOMIZE” the default indoor units
with different series and types of indoor units like:
FTXS Series Wall Mounts
CTXG EMURA Wall Mount, FFQ Ceiling Cassette’s,
FDXS/CDXS/FDMQ Slim Hidden Ducted, FVXS Floor Mount
(Click For More Info/Specs):
CTXS/FTXS: Wall Mounts
 |
CTXS / FTXS Wall Mount (FTXS)24LVJU *Intelligent Eye *3D Air Flow *Weekly Timer *Wireless Remote Included |
FDXS/CDXS: Low Static Ducted
 |
FDXS/CDXS Low Static Ducted (CDXS)24LVJU *Econo/Powerful Mode *Program Dry Function *Wireless Remote Included |
FDMQ: Mid Static Ducted
 |
FDMQ Mid Static Ducted (FDMQ)24RVJU *Longer Duct Runs *Powerful/Dry Function *Wired Thermostat Included (BRC1E73) |
Daikin’s Multi-Split Systems are ideal for multi-room applications desiring individual room comfort in a space-saving design. The Multi-Zone system is the ultimate, flexible solution for individual zone comfort. Connecting up to eight indoor units to a single outdoor unit reduces installation space and costs while maximizing comfort and energy savings. With a choice of three indoor unit types in a wide range of capacities, the Multi-Zone allows mixed and matched combinations for absolute comfort in almost any residential or light commercial application.
FDXS/CDXS – Slim Ducted Concealed Ceiling Unit capable of up to 0.18 esp
» External static pressure facilitates units use with minimal length of duct runs
» Discretely concealed in the ceiling: only the suction and discharge grills are visible
» DC fan motor for low energy consumption
A slim-ducted concealed ceiling unit provides an extremely unobtrusive, compact solution, where only the discharge and intake grilles are visible. In addition, they free up floor and wall space to minimize the impact on décor.
FDMQ – Ducted Concealed Indoor Unit capable of up to .6 esp
» Higher external static pressure capabilities allow for longer duct runs and easily implementing
high MERV filters
» Drain pan inspection port makes it easy to observe drain pan conditions
» Rear or bottom return air configurations for installation flexibility
The FDMQ ducted concealed indoor unit provides external static pressure capabilities of up to .6, allowing for longer duct runs and easy implementation of high MERV filters. This ducted unit on a multi-zone system delivers heating and cooling comfort for the entire home, without distracting from décor. With up to 20.2 SEER level, FDMQ ducted concealed indoor unit is ENERGY STAR
