Gobi II Condensate Pump in Minisplitwarehouse.comWe can help you find exactly what you’re looking for. Get Gobi II Condensate Pump for Ductless AC – Refco. Price: $119.99 ex. tax. Call us 877-770-3548 or visit our website.

The all new Gobi II condensate pump has been completely redesigned retaining all the good features you like and upgrading everything else. The Gobi II has a massive flow range allowing its use from 6,000 Btu/H (1.75kW) up to 120,000 Btu/H (35 kW). Its digital water sensoruniversal voltage and user configurable flow ensure it is the strongest, quietest under A/C mounted condensate pump on the market today.

Technical Data:
Maximum flow rate: 11 GPH (42 l/h)
Maximum suction: 10 ft. (3 m) self priming
Maximum head: 65.60 ft. (20 m)
Sound: 20dBA at 3 ft. (1m) / 19 dBA at 1 m EN ISO 3744:2010
Wireless access: Remote wireless access with smartphone (optional feature)
Voltage: 100 ~ 240 VAC 50/60 Hz auto sensing universal power input
Power: 8 watts during maximum operation at 110V
Alarm relay: 10 Amps NO/NC contacts with integratedd replaceable HRC 10A glass fuse 5 × 20 mm
Weight: 1.3 Lbs.
Discharge star tube: 1/4“ I.D. (6.25 mm) × 3.3 ft. (1 m)
Protection:  Class II double insulation, Fully potted, IP-44
Operation temp: Ambient 37.5°F to 104°F (3°C to 40°C) / Water 41°F to 77°F (5°C to 25°C)
Compliance: Conforms to UL: 778 and certified to CSA C22.2 #68


Single-Zone 30000 Btu (1200-1500 Sq Feet) in Minisplitwarehouse.com We have a variety of split air conditioners for sale. Get Daikin 30000 BTU 17.5 SEER Ductless Mini Split Heat Pump AC. Price: $2,479.99 ex. tax. Call us 877-770-3548 or visit our website.

New Daikin NV Series Heat Pump

*This Package Includes:

*(1) Indoor Unit with Remote

Indoor Unit Features:
-Intelligent Eye--Changes to Eco mode when movement is not detected for over 20 Min.
-Program Dry Function-Ability to Adjust Humidity Levels.
-Powerful Operation- – Button on the remote control gives you a boost in cooling/heating.
-ECONO Mode- – An intelligent feature that ensures optimum energy consumption.
-3D Air-Flow– Combines Vertical & Horizontle Swing for better air circulation.
-Titanium Apatite Photocatalytic Air Purifying Filter-– Air-purifying filter and deodorizing filter.
-Weekly Timer-

*(1) Outdoor Unit 220V


Brochure
Heats/Cools (5f/50f)
-Get Low Ambient Cooling to 14f via SW5-3 on the PCB-
Add Wind Baffle for -4F Operation
Inverter Variable Speed Compressor
Precharged for up to 33ft
Anti Corrosion Treatment
Auto-Restart

*Daikin 10 Year Parts Warranty
Warranty Card
Submittal

For the best in climate control and energy efficiency, Daikin has your answer. The NV Series is an excellent choice for your light commercial installations. Each single zone system comes complete with an indoor and outdoor unit as well as a remote. The streamlined, wall-mounted unit pairs with a quiet, compact outdoor unit.

In the cooling mode, this unit will operate with outdoor temperatures ranging from 50°F to 115°F. When you add the optional wind baffle (KPW063A4), your system will continue to air condition with outdoor temperatures as low as 0°F. This unit is optimized for great performance in many distinct climates.

Daikin is the world leader in cooling technology. They include many standard features in each mini split unit. For efficient, quiet service, the variable speed compressor features inverter technology. In a system that offers inverter technology, the compressor works at variable speeds, powering up and down as needed rather than full force on and completely off, ultimately using less power. This decreases temperature fluctuations, giving you with the right amount of cooling comfort. The wall mounted indoor unit provides super quiet operation packed into a space saving design.

Standard features include Intelligent Eye Operation, Econo and Stand-by modes, Titanium apatite deodorizing filter and air filter (prefilter), auto-swing (horizontal and vertical), auto fan speed, weekly timer, night set mode, dry function, fan only and on/off timer. WiFi Operation is possible with the ENVI thermostat and the Daikin Comfort Control App.

The outdoor compressor features quiet operation and a slim, compact design that will be relatively unassuming in any outdoor installation. Plus, it includes an Anti-Corrosion Treatment on the heat exchanger to protect against changing, outside weather conditions.

Whether you are building a new room or simply supplementing a central system, a mini split offers a great energy efficient solution. Since a mini split does not tie into your main cooling/heating source, it can be used in many installations including detached garages, basements or sun rooms, to name a few.

The Daikin NV Series mini split systems come with a 5 year parts and compressor warranty that is expandable to 10 years parts and compressor as long as the unit is registered after installation.

NV Series The new NV Series models provide an improved, modern designed indoor unit, enhanced overall performance as compared to previous models.


Single-Zone 12000 Btu (400-600 Sq Feet) in Minisplitwarehouse.com View our different types of ductless air conditioners and get free shipping. Get Daikin 12000 Btu Mini Split Heat Pump AC. Price: $1,129.99 ex. tax. Call us 877-770-3548 or visit our website.

New Daikin FDMQ & Vista Series Heat Pump AC

*Includes:

*(1) Outdoor Unit 220v


Features Include:
∼Heats
 & Cools (5°F/50°F)
Get Low Ambient Cooling to 14f by cutting Jumper 6 (J6) on PCB.

∼Anti-Corrosion Treatment on Heat Exchanger∼
∼Quick Warming Function∼
Prevents the compressor from pumping liquid refrigerant in low-ambient conditions.
∼Automatic Defrosting∼
Sensor performs automatic defrosting of the outdoor heat exchanger
∼Outdoor Unit Quiet Operation∼

∼12yr Warranty
Warranty Card

*Indoor Unit Not Included*


**You are able to ADD the indoor unit, different styles available**
(Click For More Info/Specs):
FFQ – Vista Series Ceiling Cassette (20.2 SEER)

FFQ Vista Ceiling Cassette
Specifications
*Grill Included
(BYFQ60C2W1W)
*Remote Included
(BRC082A42W)

FDMQ Mid Static Slim Ducted (19.4 SEER)

FDMQ Mid Static Ducted
Specifications
*Wall Thermostat Included
(BRC1E73)

Smart inverter technology

Integrated with an inverter variablespeed compressor, ductless systems deliver the capacity required to maintain desired room conditions, reducing energy consumption by up to 30% or more (compared to traditional fixed-speed ducted systems).
This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort.

The Daikin FFQ Vista is a remarkable blend of iconic design and engineering excellence with an elegant white or a silver and white finish. Fitting within the ceiling grid and discreetly mounted to the ceiling itself, VISTA is stylish, low profile, and compact. High efficiency and comfort is delivered through the combined use of floor and presence sensors (optional). It is also possible to close individual louvers via the wired remote control for personalized comfort.

The Daikin FDMQ Ducted expands on the current offering of single zone ducted systems by providing external static pressure capabilities of up to .6. This allows for longer duct runs and easy implementation of high MERV filters. The FDMQ unit can be converted from rear return-air configurations to a bottom return for installation flexibility. This completely concealed unit delivers heating and cooling comfort to a wide range of applications.


Replacement Compressor in Minisplitwarehouse.com If you’re looking for deals, Shop with us. Get Replacement Mini Split Compressor. Price: $299.99 ex. tax. Call us 877-770-3548 or visit our website.

Please use the dropdown box and select the correct compressor size.

Please be sure to provide us with the make and model of the system you have in the additional information box just before checkout.

Also, email us a picture of the old compressor and be sure to get the specification sticker in the picture.



Single-Zone 2 Ton (800-1200 Sq Feet) in Minisplitwarehouse.comMini-splits are heating and cooling systems that allow you to control the temperatures in individual spaces. Get Daikin 24000 Btu 17 SEER Ductless Mini Split Heat Pump AC. Price: $1,499.99 ex. tax. Call us 877-770-3548 or visit our website.

New Daikin 17 Series Heat Pump

*This Package Includes:

*(1) Indoor Unit with Remote

Indoor Unit Features:
Powerful Operation
– Pushing the POWERFUL button on the remote control gives you a boost in cooling or heating power for a 20-minute period, even if the unit is already operating at high capacity.
ECO+
– An intelligent feature that ensures optimum energy consumption while fulfilling basic human comfort needs. Once activated, set temperature will be adjusted automatically to an optimum energy consumption level.
Blue Fin Protection
– The hydrophilic coated fin ensures the condensate water moves easily to the drain pan — thus enhancing the cleanliness and lifespan of the cooling coil.
Titanium Apatite Photocatalytic Air Purifying Filter
– This filter combines the air-purifying filter and titanium apatite photocatalytic deodorizing filter in a single highly effective unit.

*(1) Outdoor Unit 220V


Brochure
Heats & Cools (5f / 50f)
Inverter Swing Compressor
Precharged for up to 24.6ft
Anti Corrosion Treatment
Auto-Restart

*Daikin 10 Year Parts Warranty
Warranty Card
User Manual  Submittal

As you think about the functionality of your home’s indoor comfort system, the Daikin brand is ready to help you achieve control, energy efficiency and long-term peace of mind. Take that attention to quality one step farther by choosing a Daikin brand energyefficient ductless split system. We have designed and engineered all of our products to provide years of consistent indoor comfort – delivering you and your family premium Comfort for Life.

  • Energy Efficient – 17 SEER, 9 HSPF
  • 10 Year Parts Limited Warranty
  • Turbo mode cools or warms up the room fast

A better understanding of how people inhabit their living spaces has led to products designed to create indoor environments that help use energy resources more effectively. The Daikin brand 17 Series is designed to blend in discreetly with any home design and are ideal for single rooms.

Smart inverter technology

Integrated with an inverter variablespeed compressor, 17 Series ductless systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption (compared to traditional fixed-speed ducted systems).
This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort.

Experience comfort

Designed for Comfort for Life, the Daikin 17 Series units include features to ensure a comfortable experience every moment.
From the wide angle louver design to the auto-swing and comfortable mode controller settings, effective heating and cooling is ensured throughout the space.

Quiet operation

Utilizing inverter technology to maintain comfort settings, Daikin systems most often operate at low speeds with indoor sound levels as low as 30 decibels (dB) and outdoor sound levels as low as 46 dB. Activate the indoor unit quiet operation and sound levels drop by 2-3 dB for gentler heating and cooling and quiet operation.

Additional features

  • Energy Efficient – 17 SEER, 9 HSPF
  • Undisturbed Comfort
  • Advanced Filtration
  • Wireless Control

01

4.5” Line Cover For Mini Split in Minisplitwarehouse.com We can help you find exactly what you’re looking for. 4.5” Line Cover For Mini Split Systems Fortress by RectorSeal. Price: $99.99 ex. tax. Call us 877-770-3548 or visit our website.

4.5” Fortress LDK 12′ Lineset Wall Duct Kit

Data Sheets: (SDS, PDS, etc…)

Kit includes 12′ of duct and fittings for a standard installation.

LDK Kit includes:
LD – Ducting 4 Long ( 3 )
LJ – Couplers ( 2 )
LW – Wall Inlet ( 1 )
LEN – End Fitting ( 1 )
LK – 90º Flat Ell ( 1 )

  • Assures complete flexibility of installation
  • Professional grade ducting, protects and hides unsightly mini-split linesets in a snap
  • Fortress is perfect for mini-splits, high velocity and conventional split air conditioning systems.
  • Fortress protects lineset, wiring and drain hose from weather, vandalism, pet and pest damage.
  • Fortress installs quickly, and can be easily accessed for repairs or replacement of the lineset.


Chigo 18000 Ductless Heat Pump in Minisplitwarehouse.com Why shop anywhere else when we have the best deals around? Get Chigo 18000 Btu 19 Seer Ductless Heat Pump AC. Price: $999.99 ex. tax. Call us 877-770-3548 or visit our website.

*Included In The Package:

*One (1) Indoor Unit with Remote
*One (1) Outdoor Unit (Compressor by Hitachi)

Heats & Cools

Specifications
CLICK HERE

*One (1) Factory Warranty:
Our Exclusive Warranty Card- CLICK HERE

7 Year Compressor
 / 5 Year Parts
*(Terms & Conditions Apply)
________________________________________________
19 & 20 SEER FULL Inverter Line:
Comes Pre-Charged with Eco-Friendly R410A.
Multi-fold evaporator increases heat exchange & enhances efficiency

Quiet
Efficient
COOLING
HEATING
Auto-Defrost
Auto-Restart
Independent DE-HUMIDIFICATION
AIR PURIFICATION (Washable Filters)
PG motor, Sleeping Mode
LED LCD display

Features:
Ultimate in energy savings
Hi-Efficiency Compressor (Panasonic & Hitachi)
Anti-corrosive treatment
LCD wireless remote control
Air purifying filter
24 hour on/off timer
Quiet sleep operation
Auto and 3 speeds fan control
Vertical auto-swing
Signal reception indicator

Cools when outdoor temps are:64.4F~114.8F
Heats when outdoor temps are:19.4F~75.2F.

Chigo is an International Air Conditioner Supplier, endorsed by Jackie Chan, with more than 21 years experience in the refrigeration and air conditioning industry. Chigo possesses a modern R&D (Research and Development) production base and an entire industrial chain including compressors. By focusing on high end products, commitment to innovation and delivering ultimate comfort for global users.Chigo has gained magnificent popularity in more than 200 countries and regions across the world.

Click the image below to see the brochure and specification


Wholesale Lots in Minisplitwarehouse.com Call our office today to get a new mini split system. Get 15 Chigo Ductless Mini Split Heat Pump AC Systems Wholesale Lot. Price: $8,999.99 ex. tax. Call us 877-770-3548 or visit our website.

Included In The Wholesale Lot:
Heats & Cools
(15) Indoor Units
(15) Remotes
(15) Outdoor Units

(Compressor by Hitachi/Panasonic)

(15) 25′ Install Kits (Copper & Wire) $129ea Value

-New 7yr Compressor/5yr Parts Warranty-

Warranty Card- CLICK HERE

ATTNWholesale Lots over $4k Cannot be Processed on a Credit Card. Please Contact Our Sales Department or Choose Check/Wire at Checkout and receive an additional discount.

Chigo is the Worlds 2nd Largest Air Conditioner Manufacturer, they specialize in long lasting quality systems. Chigo produces many private labels on the market today, they strive on quality and affordability.

Specifications
CLICK HERE
 AHRI Certificate
CLICK HERE


Chigo, endorsed by Jackie Chan, is an International Air Conditioner Supplier with more than 21 years experience in the refrigeration and air conditioning industry. Chigo possesses a modern R&D (Research and Development) production base and an entire industrial chain including compressors. By focusing on high end products, commitment to innovation and delivering ultimate comfort for global users.Chigo has gained magnificent popularity in more than 200 countries and regions across the world.

Click the image below to see the brochure and specification

Quiet
Efficient
COOLING
HEATING
Auto-Defrost
Auto-Restart
Independent DE-HUMIDIFICATION
AIR PURIFICATION (Washable Filters)
PG motor, Sleeping Mode
LED LCD display

Features:
Ultimate in energy savings
Hi-Efficiency Compressor (Panasonic & Hitachi)
Anti-corrosive treatment
LCD wireless remote control
Air purifying filter
24 hour on/off timer
Quiet sleep operation
Auto and 3 speeds fan control
Vertical auto-swing
Signal reception indicator

19 & 20 SEER FULL Inverter Line:
Comes Pre-Charged with Eco-Friendly R410A.
Multi-fold evaporator increases heat exchange & enhances efficiency

Cools when outdoor temps are:64.4F~114.8F
Heats when outdoor temps are:19.4F~75.2F.


WiFi Kit for Premier Wall Mount Systems in Minisplitwarehouse.comWe deliver the level of comfort, convenience, and reliability that you’ve come to expect. Get Midea WiFi Kit for Premier Wall Mount Systems. Price: $279.99 ex. tax. Call us 877-770-3548 or visit our website.

Sold as a Complete Kit

Sub-Assembly Parts
Assembly Part Number Description Part Number
WiFi Kit 1 WiFi Display Board 17222000002868
WiFi Control Box 17210900000001
WiFi Module 17310900000481
WiFi Kit 2 WiFi Display Board 17222000011590
WiFi Control Box 17222000A17851
WiFi Module 17210900000038

For use with the following Midea Indoor Models:

WiFi Kit 1:
MEHS-09PHH2
MEHU-12PHH2
MEHU-18PHH2
MEHU-24PHH2

WiFi Kit 2:
MEHU-30PSH2
MEHU-36PSH2

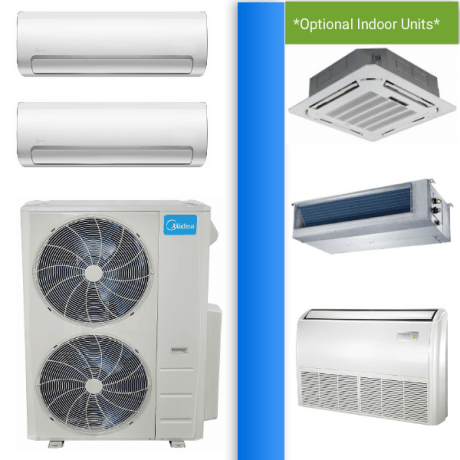

Midea 2×24000 Btu Ductless Mini Split in Minisplitwarehouse.com Our multi zone ductless experts are here to help you purchase a system at the best price possible. Get Midea 2×24000 Btu 20.5 SEER Ductless Mini Split Heat Pump AC. Price: $3,399.99 ex. tax. Call us 877-770-3548 or visit our website.

*This Package Includes:
*(1) 5 Zone Outdoor Unit 48,000Btu (21 SEER)

DLCMRA Features Include:
∼Heats
 & Cools (-22F/-13F)Basepan Heater (Built in)
∼Gold Coated Coils∼7yr Compressor 5yr Parts Warranty
Specifications Brochure AHRI
Allowed Indoor Combinations

*
(2) Indoor Units 24000 Btu Wall Mount (DLFSH)

DLFSH Features Include:
ECO-Mode∼ SAVE 60% Energy
8 Modes∼ Cool, Heat, Dry, Fan, Auto, TURBO, Sleep, Heating Setback(46F)
4 Fan SpeedsFollow Me∼ Uses remote control as the sensor
Gold Coated Coils∼Remote Controls∼
Specifications
Brochure
Warranty Card
____________________________________________________________
Installation Kits are not included, please see the dropdown boxes above for those options.
_______________________________________________________________________
With This Package you are able to
 “UPGRADE”
to different types of indoor units like:
Ceiling Cassette’s , Slim Hidden Ducted,
Console/Universal Mount
Click the Images Below for more information



_______________________________________________________


Midea Series is Energy Saving
DC Inverter 180 degree Sine Wave, Super DC Inverter Air Conditioner adopts the advanced 180 degree Sine Wave. DC Inverter driving technology and Brushless DC (BLDC) motor (Revolution Variable) compressor. More energy-saving, more consistent and quieter than 120 degree Square Wave DC Inverter.

Features————
Self-diagnosis and Auto-protection: Once abnormal operation or parts failure happen, the unit will shut off automatically to protect the system. Meanwhile it will indicate protection or error code for fast service.
Low Ambient Cooling: With built-in low ambient kit or special designed PCB, outdoor fan speed can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature down to 5°F.
Chassis Heating Belt: Heating belt is fitted on the base plate of outdoor unit to prevent defrosting water accumulated, which improves heat transfer efficiency.
Follow Me: Temperature sensor built in the remote controller will sense its surrounding temperature. So the unit can adjust room temperature more accurately to give you comfort.
Turbo Mode: This function gives you a boost in cooling and heating power for a period, and makes the room cool down or heat up rapidly.
Anti-cold Air Function: Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
Quiet Design: Indoor fan will run at super breeze speed and indoor noise level can be extremely low when the unit enters silent mode operation.
12 Grades Indoor Fan Speeds: Up to 12 grades indoor fan speeds, ensure more accurate control and bring more comfortable air flow.
5 Grades Outdoor Fan Speeds: Due to the DC fan motor, outdoor fan speeds increased from 2 grades to 5 grades, more comfortable and energy saving.
1W Standby: Intelligent on-off technology enables Midea products automatically enter energy-saving mode when standby, cut energy consumption from normal 5W to 1W or 0.5 W per hour which counts 80%-90% of saving.
Sleep Mode: The function enables the air conditioner to automatically increase cooling or decrease heating 1℃ per hour for the first 2 hours, then holds steady for the next 5 hours, after that it will switch off. This function maintains both energy saving and comfort at night.
2-way Draining: Both left and right sides of indoor unit are possible for drainage hose connection, easy for installation.
Auto Restart Function: If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.
Louver Position Memory Function: Horizontal louver will automatically move to the same position as you set last time when the unit turned on.
Timer: Set the unit to start and stop automatically in a 24h period.
Self-Cleaning: Indoor unit will continue running at special combined mode to blow and dry indoor evaporator after the unit switched off so as to keep clean and healthy.
