Floor Ceiling Mount Mini Split in Minisplitwarehouse.com We have a variety of split air conditioners for sale. Get Midea 60000 Btu 18 SEER Floor Ceiling Mount Mini Split Heat Pump AC. Price: $3,799.99 ex. tax. Call us 877-770-3548 or visit our website.

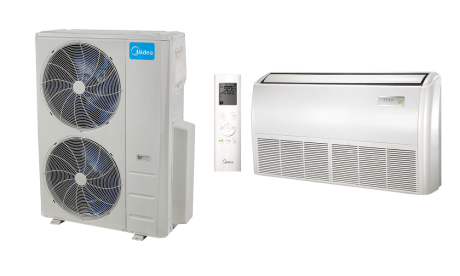

This Package Includes:

*(1) Commercial Grade Outdoor Unit
DLCLRAH58AAK


Heats and Cools (-22f/-13f)
*Built-in Basepan Heater
*Condenser High Temp Protection
*Refrigerant Leak Detection
*Quiet Operation (62.5dB)
*Gold Coated Fins
*213ft Max Piping Length
*7 Yr Compressor / 5 Yr Parts Warranty

Submittal Sheet  Brochure
User Manual  Install Manual

*(1) Commercial Grade Indoor Unit
DLFLFAH58XAK
(NO Condensate Pump)

*Gold Coated Fins

(Click The Images Below for More Information on the Indoor Units)
DLFLA Product Sheet
Remote Control with Floor/Ceiling Indoor

Outdoor KEY FEATURES

  • Longer Piping Lengths
    Piping flexibility up to a total piping length of 213 ft. (65 m.)
  • Low Ambient Cooling
    With built-in Low Ambient Kit or special designed PCB, outdoor fan speeds can be changed automatically based on the temperature. The unit can run cooling operation even in low ambient temperatures.

FEATURES

  • Available in 208/230V
  • Built-in basepan heater
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 62.5 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 213 ft. (65 m)
  • Cooling operating range
    • -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range
    • -22° ~ 86° F (-30° ~ 30°C)

Compatible With:

  • DLFLDA Ducted
  • DLFLFA Console

Color: Clay


DOCUMENTS

SPECIFICATIONS

DLCLRA Outdoor Unit
Heat Pump
Size 58
Outdoor Model DLCLRAH58AAK
Electrical
Voltage-Phase-Cycle V-Ph-Hz 208/230-1-60
MCA A 35
MOCP – Fuse Rating A. 50
Operating Range
Cooling Outdoor DB Min – Max ° F (° C) -13°~122° (-25°~50°)
Heating Outdoor DB Min – Max ° F (° C) -22°~86° (-30°~30°)
Piping
Total Piping Length ft (m) 213 (65)
Lift (OD below ID) ft (m) 98 (30)
Pipe Connection Size – Liquid in (mm) 3/8 (9.52)
Pipe Connection Size – Suction in (mm) 3/4 (19)
Refrigerant
Type R410A
Charge lbs (kg) 10.19 (4.62)
Outdoor
Unit Width in (mm) 37.48 (952)
Unit Height in (mm) 52.48 (1333)
Unit Depth in (mm) 16.34 (415)
Net Weight lbs (kg) 225.09 (102.1)
Airflow CFM 4,415
Sound Pressure dB(A) 64.0

Performance with DLFSDA Ducted
