Floor Ceiling Mount Mini Split in Minisplitwarehouse.com Discover the best heating and air conditioning products for your home. Get Midea 36000 BTU 16 SEER Floor Ceiling Mount Mini Split Heat Pump AC. Price: $2,449.99 ex. tax. Call us 877-770-3548 or visit our website.

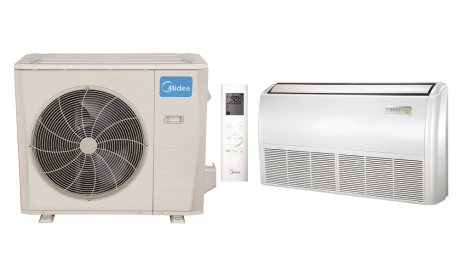

*This Package Includes:
*(1) Indoor Unit : (DLFLF)AH36XAK
Premier Floor/Ceiling Features Include:
˜Outside Air Intake˜ Outside air can be brought into the room through the connection available on the indoor unit which helps meet the ventilation requirement. (Only on sizes 18-24)
˜6 Modes˜ Cool, Heat, Dry, Fan, Auto, Heating Setback(46f)
˜Fully Modulating Fan Speeds˜Louver Control˜ (fixed or swing)
˜Follow Me˜ Uses remote control as the sensor.
˜Carbon Filter˜Gold Coated Coils˜
(No Condensate Pump)
Premier Floor/Ceiling Features Include:
˜Outside Air Intake˜ Outside air can be brought into the room through the connection available on the indoor unit which helps meet the ventilation requirement. (Only on sizes 18-24)
˜6 Modes˜ Cool, Heat, Dry, Fan, Auto, Heating Setback(46f)
˜Fully Modulating Fan Speeds˜Louver Control˜ (fixed or swing)
˜Follow Me˜ Uses remote control as the sensor.
˜Carbon Filter˜Gold Coated Coils˜
(No Condensate Pump)
*(1) Outdoor Unit: (DLCLR)AH36AAK
DLCLR Features Include:
∼Heats & Cools (-22°F/-13°F)∼Basepan Heater (Built in)∼
DLCLR Features Include:
∼Heats & Cools (-22°F/-13°F)∼Basepan Heater (Built in)∼
∼Golden Hydrophilic Fins∼7yr Compressor 5yr Parts Warranty∼
Click the Buttons below for detailed product info:
Product Brochure Compressor Specifications
Click the Buttons below for detailed product info:
Product Brochure Compressor Specifications
Mini Split Reviews | Compare to: Home Depot Mini Splits, Fujistu Mini Splits, Mitsubishi Mini Splits, LG Mini Splits, Samsung Mini Splits, Sanyo Mini Splits, Ramsond Mini Splits, Trane Mini Splits, Panasonic Mini Splits, Lennox Mini Splits, Questside Mini Splits, Daikin Mini Splits, Toshiba Mini Splits, Carrier Mini Splits, Hitachi Mini Splits, Lowes Mini Splits, Gree Mini Splits, Senville Mini Splits, Thermocore Mini Splits
Midea Series is Energy Saving
DC Inverter 180 degree Sine Wave, Super DC Inverter Air Conditioner adopts the advanced 180 degree Sine Wave. DC Inverter driving technology and Brushless DC (BLDC) motor (Revolution Variable) compressor. More energy-saving, more consistent and quieter than 120 degree Square Wave DC Inverter.
Indoor KEY FEATURES
- Outside Air Intake
Outside air can be brought into the room through the connection available on the indoor unit which helps meet the ventilation air requirements. - Flexible installation
Ability to be installed on the floor or ceiling depending on the application.
FEATURES
- Available in 208/230V
- Up to 16.0 SEER and 11.0 HSPF when paired with DLCLRA outdoor unit
- Modes: Cool, Heat, Dry, Fan, Auto
- Auto-restart function
- Capable to be mounted on floor or ceiling
- Louver control (fixed or swing)
- Three fan speeds
- Air discharge from top and bottom (size 12 only)
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 43 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
Compatible With:
- DLCLRA Outdoor Unit Single Zone
Color: White
DOCUMENTS
SPECIFICATIONS
| DLFLFA Console |
||
| Heat Pump | ||
| System | ||
| Size | 36 | |
| Indoor Model | DLFLFAH36XAK | |
| Electrical | ||
| Voltage-Phase-Cycle | V-PhHz | 208/230-1-60 |
| Power Supply | Indoor unit powered from outdoor unit | |
| MCA | 1.3 | |
| Operating Range | ||
| Cooling Indoor DB Min – Max | ° F (° C) | 63~90 (17~32) |
| Heating Indoor DB Min – Max | ° F (° C) | 32~86 (0~30) |
| Piping | ||
| Pipe Connection Size – Liquid | in (mm) | 3/8 (9.52) |
| Pipe Connection Size – Suction | in (mm) | 5/8 (16) |
| Indoor | ||
| Unit Width | in (mm) | 50.59 (1285) |
| Unit Height | in (mm) | 9.25 (235) |
| Unit Depth | in (mm) | 26.57 (675) |
| Net Weight | lbs (kg) | 69 (31.3) |
| Number of Fan Speeds | 3 | |
| Airflow (lowest to highest) | CFM | 638/917/1037 |
| Sound Pressure (lowest to highest) | dB(A) | 43/49/54 |
| Air Throw Data | ft (m) | 33(10) |
| Field Drain Pipe Size O.D. | in (mm) | 1 (25.4) |
Outdoor KEY FEATURES
- Longer Piping Lengths
Piping flexibility up to a total piping length of 213 ft. (65 m.) - Low Ambient Cooling
With built-in Low Ambient Kit or special designed PCB, outdoor fan speeds can be changed automatically based on the temperature. The unit can run cooling operation even in low ambient temperatures.
FEATURES
- Available in 208/230V
- Built-in basepan heater
- Condenser high-temperature protection
- Refrigerant leakage detection
- Quiet outdoor operation, as low as 62.5 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
- Piping length 213 ft. (65 m)
- Cooling operating range
- -13° ~ 122° F (-25° ~ 50° C)
- Heating operating range
- -22° ~ 86° F (-30° ~ 30°C)
