Hyper Heat Pump AC in Minisplitwarehouse.comDuctless wall mount mini split systems are available with different efficiency ratings and in a variety of capacities. Get Midea 12000 Btu 30 SEER Ductless Mini Split Hyper Heat Pump AC. Price: $1,689.99 ex. tax. Call us 877-770-3548 or visit our website.

MAX SERIES/30 SEER/220V

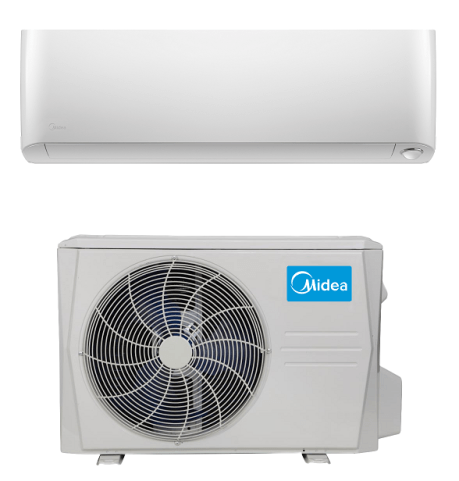

*This Package Includes:

*(1) Indoor Unit : (DLFPH)AH12XAK

DLFPH Features Include:
˜Relative Humidity Sensor˜ Set the desired relative humidity in 5% increments.
˜Occupancy Sensor˜ “EYE” can send airflow twords or away from people in the room.
˜9 Modes˜ Cool, Heat, Dry, Fan, Auto, Turbo, Eco, Sleep, Heating Setback(46f)
˜Fully Modulating Fan Speeds˜Louver Control˜ UP, Down, Left & Right.
˜Follow Me˜ Uses remote control as the sensor.
˜Carbon Filter˜Gold Coated Coils˜

*(1) Outdoor Unit: (DLCPR)AH12AAK

DLCPR Features Include:
˜Heats & Cools (-22F/-22F)˜Basepan Heater (Built in
˜100% Heat @ 0F˜ 100% Cool @-22F˜
˜Gold Coated Coils˜7yr Compressor 5yr Parts Warranty˜
˜Refrigerant Leak Detection˜Auto Restart˜

Specifications  AHRI Certificate  Service Manual

INDOOR KEY FEATURES

  • Relative Humidity Sensor
    Increasing comfort by setting the desired relative humidity in 5% increments in a range of 35%~85%.
  • Occupancy Sensor
    Detects activity in the room and adjusts the horizontal angle of airflow to blow away from people or follow people.

FEATURES

  • Available in 208/230V
  • Relative Humidity Sensor
  • Occupancy Sensor
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Turbo Mode
  • Fully modulating fan speeds
  • Sleep Mode
  • ECO Mode
  • Up-down / right-left louver control (fixed or swing)
  • Follow Me (senses temperature at handheld remote)
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 29 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Up to 40.0 SEER and 14.5 HSPF when paired with DLCPRA outdoor unit

Compatible With:

  • DLCPRA Outdoor Unit Single Zone
  • DLCMRA Outdoor Unit Multi-Zone

Color: White

DOCUMENTS

SPECIFICATIONS

DLFPHA High Wall
Heat Pump
System
Size 12
Indoor Model DLFPHAH12XAK
Electrical
Voltage-Phase-Cycle V-PhHz 208/230-1-60
Power Supply Indoor unit powered from outdoor unit
MCA 0.3
Operating Range
Cooling Indoor DB Min – Max ° F (° C) 62~90 (17~32)
Heating Indoor DB Min – Max ° F (° C) 32~86 (0~30)
Piping
Pipe Connection Size – Liquid in (mm) 1/4 (6.35)
Pipe Connection Size – Suction in (mm) 1/2 (12.7)
Indoor
Unit Width in (mm) 35.2 (895)
Unit Height in (mm) 11.7 (298)
Unit Depth in (mm) 9.8 (248)
Net Weight lbs (kg) 37.48 (17)
Number of Fan Speeds 4
Airflow (lowest to highest) CFM 168/252/306/357
Sound Pressure (lowest to highest) dB(A) 29/35.5/41.5/46.8
Air Throw Data ft (m) 22.97 (7)
Moisture Removal Pint/h (L/h) 2.53 (1.2)
Field Drain Pipe Size O.D. in (mm) 1 (25.4)

OUTDOOR KEY FEATURES

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for the system is up to 75% of rated capacity down to -22° F (-30° C), making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.
