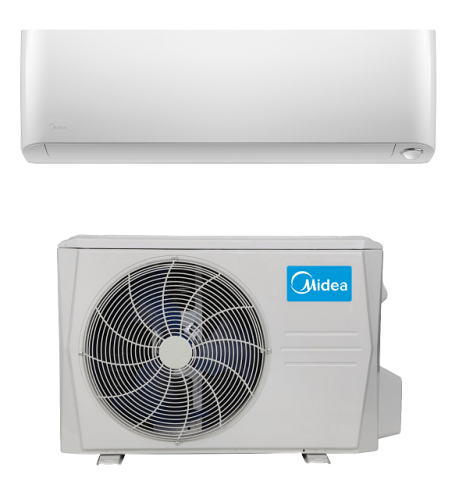

Single-Zone1 Ton (400-600 Sq Feet)in Minisplitwarehouse.com There’s nothing better than air conditioning on a hot day. When buying an air conditioner, look for a model with a high efficiency. Get Midea 12000 Btu 30 SEER Ductless Mini Split Hyper Heat Pump AC. Price: $1,689.99 ex. tax. Call us 877-770-3548.

MAX SERIES/30 SEER/220V

*This Package Includes:

*(1) Indoor Unit : (DLFPH)AH12XAK

DLFPH Features Include:
˜Relative Humidity Sensor˜ Set the desired relative humidity in 5% increments.
˜Occupancy Sensor˜ “EYE” can send airflow twords or away from people in the room.
˜9 Modes˜ Cool, Heat, Dry, Fan, Auto, Turbo, Eco, Sleep, Heating Setback(46f)
˜Fully Modulating Fan Speeds˜Louver Control˜ UP, Down, Left & Right.
˜Follow Me˜ Uses remote control as the sensor.
˜Carbon Filter˜Gold Coated Coils˜

*(1) Outdoor Unit: (DLCPR)AH12AAK

DLCPR Features Include:
˜Heats & Cools (-22F/-22F)˜Basepan Heater (Built in
˜100% Heat @ 0F˜ 100% Cool @-22F˜
˜Gold Coated Coils˜7yr Compressor 5yr Parts Warranty˜
˜Refrigerant Leak Detection˜Auto Restart˜

Specifications  AHRI Certificate  Service Manual

INDOOR KEY FEATURES

  • Relative Humidity Sensor
    Increasing comfort by setting the desired relative humidity in 5% increments in a range of 35%~85%.
  • Occupancy Sensor
    Detects activity in the room and adjusts the horizontal angle of airflow to blow away from people or follow people.

FEATURES

  • Available in 208/230V
  • Relative Humidity Sensor
  • Occupancy Sensor
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Turbo Mode
  • Fully modulating fan speeds
  • Sleep Mode
  • ECO Mode
  • Up-down / right-left louver control (fixed or swing)
  • Follow Me (senses temperature at handheld remote)
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 29 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Up to 40.0 SEER and 14.5 HSPF when paired with DLCPRA outdoor unit

Compatible With:

  • DLCPRA Outdoor Unit Single Zone
  • DLCMRA Outdoor Unit Multi-Zone

Color: White

DOCUMENTS

SPECIFICATIONS

DLFPHA High Wall
Heat Pump
System
Size 12
Indoor Model DLFPHAH12XAK
Electrical
Voltage-Phase-Cycle V-PhHz 208/230-1-60
Power Supply Indoor unit powered from outdoor unit
MCA 0.3
Operating Range
Cooling Indoor DB Min – Max ° F (° C) 62~90 (17~32)
Heating Indoor DB Min – Max ° F (° C) 32~86 (0~30)
Piping
Pipe Connection Size – Liquid in (mm) 1/4 (6.35)
Pipe Connection Size – Suction in (mm) 1/2 (12.7)
Indoor
Unit Width in (mm) 35.2 (895)
Unit Height in (mm) 11.7 (298)
Unit Depth in (mm) 9.8 (248)
Net Weight lbs (kg) 37.48 (17)
Number of Fan Speeds 4
Airflow (lowest to highest) CFM 168/252/306/357
Sound Pressure (lowest to highest) dB(A) 29/35.5/41.5/46.8
Air Throw Data ft (m) 22.97 (7)
Moisture Removal Pint/h (L/h) 2.53 (1.2)
Field Drain Pipe Size O.D. in (mm) 1 (25.4)

OUTDOOR KEY FEATURES

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for the system is up to 75% of rated capacity down to -22° F (-30° C), making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.

FEATURES

  • 100% Heating capacity at 0° F (-17° C)
  • 100% Cooling capacity at -22° F (-30° C) without additional kit
  • Up to 75% of Heating capacity at -22° F (-30° C)
  • Available in 208/230V
  • Built-in basepan heater
  • Auto-restart function
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 55 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 98 ft. (30 m.)
  • Cooling operating range
    • -22° ~ 122° F (-30° ~ 50° C)
  • Heating operating range
    • -22° ~ 86° F (-25° ~ 30° C)

Compatible With:

  • DLFPHA High Wall

Color: Clay


DOCUMENTS

SPECIFICATIONS

DLCPRA Outdoor Unit
Heat Pump
Size 12
Outdoor Model DLFPRAH12AAK
Electrical
Voltage-Phase-Cycle V-Ph-Hz 208/230-1-60
Power Supply Indoor unit powered from outdoor unit
MCA A 15
MOCP – Fuse Rating A. 20
Operating Range
Cooling Outdoor DB Min – Max ° F (° C) -22°~122° (-30°~50°)
Heating Outdoor DB Min – Max ° F (° C) -22°~86° (-30°~30°)
Piping
Total Piping Length ft (m) 98 (30)
Lift (OD below ID) ft (m) 49 (15)
Pipe Connection Size – Liquid in (mm) 1/4 (6.35)
Pipe Connection Size – Suction in (mm) 1/2 (12.7)
Refrigerant
Type R410A
Charge lbs (kg) 3.5 (1.58)
Outdoor
Unit Width in (mm) 33.27 (845)
Unit Height in (mm) 27.64 (702)
Unit Depth in (mm) 14.29 (363)
Net Weight lbs (kg) 108.47 (49.2)
Airflow CFM 1,380
Sound Pressure dB(A) 56.0

Performance with DLFPHA High Wall

DLFPHAH12XAK
ENERGY STAR® YES
Cooling System Tons 1.0
Cooling Rated Capacity Btu/h 12,000
Cooling Cap. Range Min – Max Btu/h 5,800~19,000
SEER 30.0
EER 13.5
Heating Rated Capacity (47° F) Btu/h 12,000
Heating Rated Capacity (17° F) Btu/h 6,800
Heating Maximum Capacity (17° F) Btu/h 17,070
Heating Maximum Capacity (5° F) Btu/h 13,800
Heating Cap. Range Min – Max Btu/h 8,790~21,310
HSPF 13.6
COP (47° F) W/W 4.24
COP (17° F) W/W 2.64
COP (5° F) W/W 2.0
