Floor Ceiling Mount Mini Split in Minisplitwarehouse.comWe Now Offer Floor Ceiling Mini Split Heat Pump Air Conditioner. Get Midea 60000 Btu 18 SEER Floor Ceiling Mount Mini Split Heat Pump AC. Price: $3,799.99 ex. tax. Call us 877-770-3548 or visit our website.

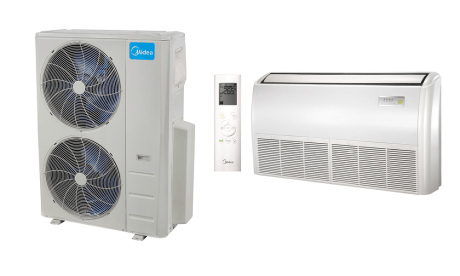

This Package Includes:

*(1) Commercial Grade Outdoor Unit
DLCLRAH58AAK


Heats and Cools (-22f/-13f)
*Built-in Basepan Heater
*Condenser High Temp Protection
*Refrigerant Leak Detection
*Quiet Operation (62.5dB)
*Gold Coated Fins
*213ft Max Piping Length
*7 Yr Compressor / 5 Yr Parts Warranty

Submittal Sheet  Brochure
User Manual  Install Manual

*(1) Commercial Grade Indoor Unit
DLFLFAH58XAK
(NO Condensate Pump)

*Gold Coated Fins

Copper Lines & Wires Not Included!
Please see the drop down boxes above to add copper lines & wires.
Requires 2 Sets of wires, 1-(set) for Power Indoor to Outdoor & 1-(set 18AWG) For Signal
(Copper Line & Wire Dropdown box bove includes power wire, you will still need the 18AWG signal wire)

(Click The Images Below for More Information on the Indoor Units)
DLFLA Product Sheet
Remote Control with Floor/Ceiling Indoor

Outdoor KEY FEATURES

  • Longer Piping Lengths
    Piping flexibility up to a total piping length of 213 ft. (65 m.)
  • Low Ambient Cooling
    With built-in Low Ambient Kit or special designed PCB, outdoor fan speeds can be changed automatically based on the temperature. The unit can run cooling operation even in low ambient temperatures.

FEATURES

  • Available in 208/230V
  • Built-in basepan heater
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 62.5 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 213 ft. (65 m)
  • Cooling operating range
    • -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range
    • -22° ~ 86° F (-30° ~ 30°C)

Compatible With:

  • DLFLDA Ducted
  • DLFLFA Console

Color: Clay


DOCUMENTS

SPECIFICATIONS

DLCLRA Outdoor Unit
Heat Pump
Size 58
Outdoor Model DLCLRAH58AAK
Electrical
Voltage-Phase-Cycle V-Ph-Hz 208/230-1-60
MCA A 35
MOCP – Fuse Rating A. 50
Operating Range
Cooling Outdoor DB Min – Max ° F (° C) -13°~122° (-25°~50°)
Heating Outdoor DB Min – Max ° F (° C) -22°~86° (-30°~30°)
Piping
Total Piping Length ft (m) 213 (65)
Lift (OD below ID) ft (m) 98 (30)
Pipe Connection Size – Liquid in (mm) 3/8 (9.52)
Pipe Connection Size – Suction in (mm) 3/4 (19)
Refrigerant
Type R410A
Charge lbs (kg) 10.19 (4.62)
Outdoor
Unit Width in (mm) 37.48 (952)
Unit Height in (mm) 52.48 (1333)
Unit Depth in (mm) 16.34 (415)
Net Weight lbs (kg) 225.09 (102.1)
Airflow CFM 4,415
Sound Pressure dB(A) 64.0

Performance with DLFSDA Ducted

DLFLDAH58XAK
ENERGY STAR® NO
Cooling System Tons 4.8
Cooling Rated Capacity Btu/h 58,000
Cooling Cap. Range Min – Max Btu/h 18,000-58,000
SEER 18.0
EER 10.0
Heating Rated Capacity (47° F) Btu/h 62,000
Heating Rated Capacity (17° F) Btu/h 37,600
Heating Maximum Capacity (5° F) Btu/h 35,000
Heating Cap. Range Min – Max Btu/h 12,000-63,000
HSPF 9.0
COP (47° F) W/W 3.6
COP (17° F) W/W 2.62
COP (5° F) W/W 1.91

Performance with DLFSFA Console

DLFLFAH58XAK
ENERGY STAR® NO
Cooling System Tons 4.5
Cooling Rated Capacity Btu/h 54,000
Cooling Cap. Range Min – Max Btu/h 18,000-58,000
SEER 18.0
EER 9.8
Heating Rated Capacity (47° F) Btu/h 60,000
Heating Rated Capacity (17° F) Btu/h 39,000
Heating Maximum Capacity (5° F) Btu/h 35,000
Heating Cap. Range Min – Max Btu/h 12,000-63,000
HSPF 10.5
COP (47° F) W/W 3.6
COP (17° F) W/W 2.62
COP (5° F) W/W 1.84

Indoor KEY FEATURES

  • Outside Air Intake
    Outside air can be brought into the room through the connection available on the indoor unit which helps meet the ventilation air requirements.
  • Flexible installation
    Ability to be installed on the floor or ceiling depending on the application.

FEATURES

  • Available in 208/230V
  • Up to 18.0 SEER and 11.0 HSPF when paired with DLCLRA outdoor unit
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Auto-restart function
  • Capable to be mounted on floor or ceiling
  • Louver control (fixed or swing)
  • Three fan speeds
  • Air discharge from top and bottom (size 12 only)
  • Follow Me (senses temperature at handheld remote)
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 43 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins

Compatible With:

  • DLCLRA Outdoor Unit Single Zone
