Midea 4 Zone 21 SEER in Minisplitwarehouse.com Our multi zone ductless experts are here to help you purchase a system at the best price possible. Get Midea 4 Zone 21 SEER Ductless Mini Split Hyper Heat Pump AC. Price: $2,880.99 ex. tax. Call us 877-770-3548 or visit our website.

*This Midea 4 Zone Mini Split Package Includes:

*(1) 4 Zone Outdoor Unit 36,000Btu (21.2 SEER)

DLCMRA Features Include:
∼Heats
 & Cools (-22F/-13F)Basepan Heater (Built in)

∼Gold Coated Coils∼7yr Compressor 5yr Parts Warranty
Specifications Brochure AHRI
Allowed Indoor Combinations

*
(4) Indoor Units 9000Btu Wall Mount (DLFEH)


DLFEH Features Include:


Convenient Filter Removal∼ Remove filter from top of unit, no need to open front cover.
Improved Servicability∼ Full Access to terminal connections and fan after lifting front cover.
8 Modes∼ Cool, Heat, Dry, Fan, Auto, TURBO, Sleep, Heating Setback(46F)
4 Fan SpeedsFollow Me∼ Uses remote control as the sensor
Gold Coated Coils∼Remote Controls∼
Specifications
Brochure
Warranty Card
____________________________________________________________
Installation Kits are not included, please see the dropdown boxes above for those options.
_______________________________________________________________________

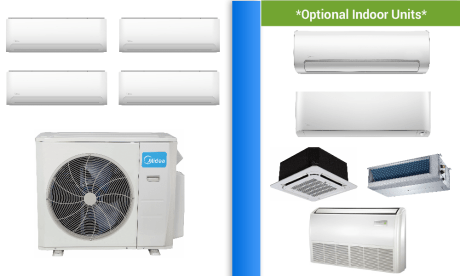

With This Package you are able to “UPGRADE”
The Outdoor unit to a Larger one and the default 9000btu Wall Mount DLFEH to larger sizes,
different series and types of indoor units like:
Advantage Series Wall Mount, Max Series Wall Mount,
Ceiling Cassette’s , Slim Hidden Ducted,
Console/Universal Mount

Click the Images Below for more information

DLFSH Specifications
Brochure
DLFPH Specifications
Brochure
DLFSC Specifications
Brochure
DLFSD Specifications
Brochure
DLFSF Specifications
Brochure
DLFSF Specifications
Brochure

Outdoor KEY FEATURES

  • Space Saving Installation
    Up to five indoor units can be connected to a single outdoor unit, reducing the number of outdoor units required. All indoor units can be individually controlled and do not need to be installed at the same time.
  • Multiple Indoor Unit Styles
    Flexibility on the options of indoor unit styles to fit any application or need.

FEATURES

  • Available in 208/230V
  • Connect 1 ~ 4, multiple style indoor units
  • Built-in basepan heater
  • Quiet outdoor operation, as low as 62 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Cooling operating range -13°~122° F (-25°~50° C)
  • Heating operating range -22°~86° F (-30°~30° C)

Compatible With:

  • DLFPHA High Wall
  • DLFSHA High Wall
  • DLFEHA High Wall
  • DLFSCA Cassette
  • DLFSDA Ducted
  • DLFSFA Console

Color: Clay


DOCUMENTS

SPECIFICATIONS

DLCMRA Outdoor Unit
Heat Pump
Size 36
Outdoor Model DLCMRAH36DAK
Max Number of Zones 4
Performance Non-Ducted
ENERGY STAR® NO
Cooling System Tons 3.0
Cooling Rated Capacity Btu/h 36,000
Cooling Cap. Range Min – Max Btu/h 8,090~41,470
SEER 21.4
EER 10.5
Heating Rated Capacity (47° F) Btu/h 36,000
Heating Maximum Capacity (5° F) Btu/h 26,200
Heating Cap. Range Min – Max Btu/h 6,350~41,950
HSPF 10.2
COP (47° F) W/W 3.7
COP (5° F) W/W 2.7
Performance Combination Ducted and Non-Ducted
ENERGY STAR® NO
Cooling System Tons 3.0
Cooling Rated Capacity Btu/h 36,000
Cooling Cap. Range Min – Max Btu/h 8,060~39,990
SEER 19.7
EER 10.3
Heating Rated Capacity (47° F) Btu/h 36,000
Heating Maximum Capacity (5° F) Btu/h 27,300
Heating Cap. Range Min – Max Btu/h 6,275~42,305
HSPF 10.0
COP (47° F) W/W 3.5
COP (5° F) W/W 2.6
Performance Ducted
ENERGY STAR® NO
Cooling System Tons 3.0
Cooling Rated Capacity Btu/h 36,000
Cooling Cap. Range Min – Max Btu/h 8,030~38,510
SEER 17.9
EER 10.0
Heating Rated Capacity (47° F) Btu/h 36,000
Heating Maximum Capacity (5° F) Btu/h 28,400
Heating Cap. Range Min – Max Btu/h 6,200~42,660
HSPF 9.7
COP (47° F) W/W 3.2
COP (5° F) W/W 2.5
Operating Range
Cooling Outdoor DB Min – Max ° F (° C) -13~122 (-25~50)
Heating Outdoor DB Min – Max ° F (° C) -22~86 (-30~30)
Piping
Total Piping Length ft (m) 263 (80)
Piping to furthest FCU ft (m) 115 (35)
Drop (OD above ID) ft (m) 49 (15)
Lift (OD below ID) ft (m) 49 (15)
Pipe Connection Size – Liquid in (mm) 1/4*4 (6.35*4)
Pipe Connection Size – Suction in (mm) 1/2 *1+ 3/8*3 (12.7*1+9.52*3)
Refrigerant
Type R410A
Charge lbs (kg) 6.61 (3.0)
Electrical
Voltage-Phase-Cycle V-Ph-Hz 208/230-1-60
Power Supply Indoor unit powered from outdoor unit
MCA A 30
MOCP – Fuse Rating A. 45
Outdoor
Unit Width in (mm) 41.22 (1047)
Unit Height in (mm) 31.88 (810)
Unit Depth in (mm) 17.91 (455)
Net Weight lbs (kg) 156.5 (71)
Airflow CFM 2,130
Sound Pressure dB(A) 62

ALLOWED INDOOR UNIT COMBINATIONS

2 Zone
Combinations
3 Zone
Combinations
4 Zone
Combinations
9+18 9+9+9 9+9+9+9
12+18 9+9+12 9+9+9+12
18+18 9+9+18 9+9+9+18
9+12+12 9+9+12+12
9+12+18 9+9+12+18
9+18+18 9+12+12+12
12+12+12 12+12+12+12
12+12+18
12+18+18
= Hyper Heating down to -22° F



Larger 48000btu Compressor will allow more BTU at Low temps.
See The Picture Below:

01
