Ducted Mini Split Hyper Heat Pump in Minisplitwarehouse.com Compare prices. Services: Lowest Prices, Top Deals. Get Midea 36000 BTU 16.5 SEER Commercial Ducted Mini Split Hyper Heat Pump AC. Price: $2,509.99 ex. tax. Call us 877-770-3548 or visit our website.

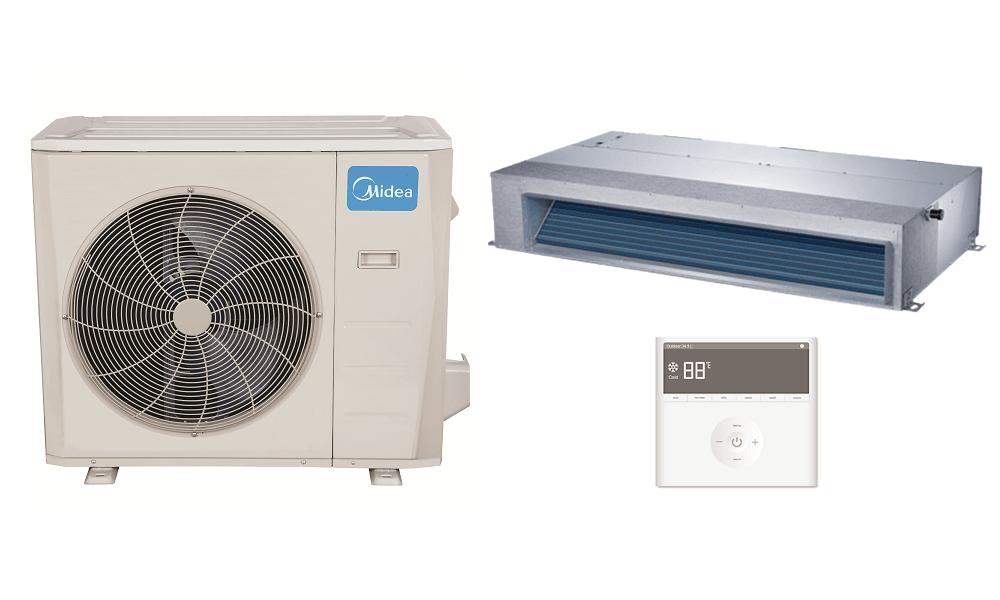

*This Package Includes:

*(1) Indoor Unit : (DLFLD)AH36XAK

DLFLD Features Include:
˜Built-In Codensate Lift Pump˜ Supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit.
˜Vertical or Horizontal Installation˜ Designed for maximum installation flexibility with the built-in secondary drain pan which allows the unit to be mounted vertically for either a floor or ceiling-concealed installation depending on existing conditions.
˜6 Modes˜ Cool, Heat, Dry, Fan, Auto, Heating Setback(46f)
˜Rear or bottom return˜
˜Follow Me˜ Uses remote control as the sensor.
˜Carbon Filter˜Gold Coated Coils˜

*(1) Wired Programmable Thermostat (with ducted only)

*(1) Outdoor Unit: (DLCLR)AH36AAK

DLCLR Features Include:
∼Heats & Cools (-22°F/-13°F)∼Basepan Heater (Built in)
∼Golden Hydrophilic Fins∼7yrCompressor 5yrParts Warranty
Click the Buttons below for detailed product info:

Product Brochure Compressor Specifications

(Click For More Info/Specs):
DLFLD – Slim Ducted (16.5 SEER)

DLFLD Slim Ducted
Specifications
AHRI Certificate



Mini Split Reviews | Compare toHome Depot Mini Splits, Fujistu Mini Splits, Mitsubishi Mini Splits, LG Mini Splits, Samsung Mini Splits, Sanyo Mini Splits, Ramsond Mini Splits, Trane Mini Splits, Panasonic Mini Splits, Lennox Mini Splits, Questside Mini Splits, Daikin Mini Splits, Toshiba Mini Splits, Carrier Mini Splits, Hitachi Mini Splits, Lowes Mini Splits, Gree Mini Splits, Senville Mini Splits, Thermocore Mini Splits

Midea Series is Energy SavingDC Inverter 180 degree Sine Wave, Super DC Inverter Air Conditioner adopts the advanced 180 degree Sine Wave. DC Inverter driving technology and Brushless DC (BLDC) motor (Revolution Variable) compressor. More energy-saving, more consistent and quieter than 120 degree Square Wave DC Inverter.

Indoor KEY FEATURES

  • Vertical or Horizontal Installation
    Designed for maximum installation flexibility with the built-in secondary drain pan which allows the unit to be mounted vertically for either a floor or ceiling-concealed installation, depending on existing conditions for sizes 36 & 48 only.
  • Built-In Codensate Lift Pump
    Supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit.


FEATURES

  • Available in 208/230V
  • Up to 16.5 SEER and up to 12.0 HSPF when paired with DLCLRA outdoor unit.
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Vertical (sizes 36 & 48) or horizontal installation
  • Up to 0.8 in WG
  • Rear or bottom return (sizes 36 & 48)
  • Constant CFM operation on sizes 36 & 48 only
  • Built-in condensate lift pump
  • Follow Me (senses temperature at optional handheld remote)
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 38.5 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins

Compatible With:

  • DLCLRA Outdoor Unit Single Zone

DOCUMENTSSUBMITTAL DATA SHEETPRODUCT SHEET2018 DUCTLESS CATALOGSPECIFICATIONS

DLFSDA Ducted
Heat Pump
System
Size36
Indoor ModelDLFLDAH36XAK
Electrical
Voltage-Phase-CycleV-Ph-Hz208/230-1-60
Power SupplyIndoor unit powered from outdoor unit
MCAA.2.45
Operating Range
Cooling Indoor DB Min – Max° F (° C)63~90 (17~32)
Heating Indoor DB Min – Max° F (° C)32~86 (0~30)
Piping
Pipe Connection Size – Liquidin (mm)3/8 (9.52)
Pipe Connection Size – Suctionin (mm)5/8 (16)
Indoor
Unit Widthin (mm)53.54 (1360)
Unit Heightin (mm)9.8 (249)
Unit Depthin (mm)30.47 (774)
Net Weightlbs (kg)106.48 (48.3)
Number of Fan Speeds3
Airflow (lowest to highest)CFM700/910/1080
Sound Pressure (lowest to highest)dB(A)38.5/42/45.5
Max. Static Pressurein (WG)0.64
Field Drain Pipe Size O.D.in (mm)1 (25.4)

Outdoor KEY FEATURES

  • Longer Piping Lengths
    Piping flexibility up to a total piping length of 213 ft. (65 m.)
  • Low Ambient Cooling
    With built-in Low Ambient Kit or special designed PCB, outdoor fan speeds can be changed automatically based on the temperature. The unit can run cooling operation even in low ambient temperatures.


FEATURES

  • Available in 208/230V
  • Built-in basepan heater
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 62.5 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 213 ft. (65 m)
  • Cooling operating range
    • -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range
    • -22° ~ 86° F (-30° ~ 30°C)
