30000 Btu Ductless Mini Split in Minisplitwarehouse.com Find the best Mini Split deals that fit your budget. Get Midea 30000 Btu 20 SEER Ductless Mini Split Hyper Heat Pump AC. Price: $1,939.99 ex. tax. Call us 877-770-3548 or visit our website.

LINK:
https://www.minisplitwarehouse.com/category/midea

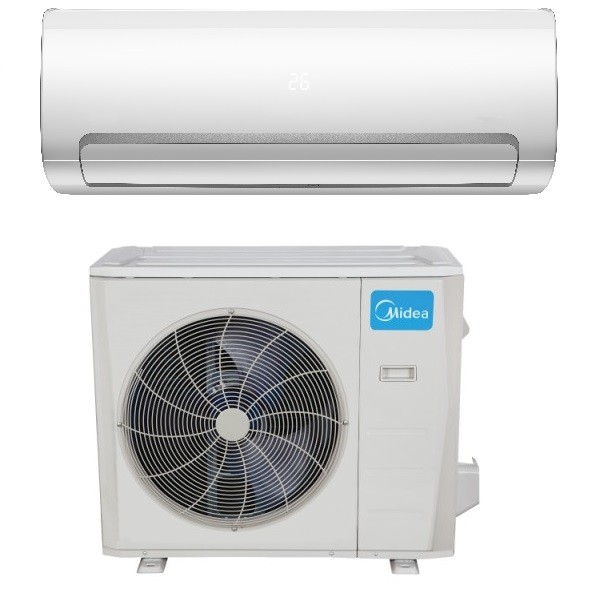

*This Midea Mini Split Package Includes:

*(1) Indoor Unit : (DLFSH)

DLFSH Features Include:
˜ECO Mode˜
˜Follow Me˜ ˜9 Modes˜
˜Fully Modulating Fan Speeds˜
Louver Control˜ ˜Follow Me˜
˜Carbon Filter˜Gold Coated Coils˜

*(1) Outdoor Unit: (DLCSR)
Cut Sheet/Specification
DLCSR Features Include:
˜Heats & Cools (-13F/-13F)˜ ˜Basepan Heater (Built in
˜Gold Coated Coils˜  ˜Refrigerant Leak Detection˜
˜Auto Restart˜



(Click For More Info/Specs):

DLFSH Wall Mount
Specifications

Outdoor KEY FEATURES

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -13° F (-25° C), making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.


FEATURES

  • Available in 208/230V
  • Built-in basepan heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 54.6 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 82 ~ 164 ft. (25 ~ 50 m.)
  • Cooling operating range
    • -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range
    • Sizes 30, 36 (208/230V)
      -13° ~ 86° F (-25° ~ 30° C)

Compatible With:

  • DLFSHA High Wall

Color: Clay


DOCUMENTSSUBMITTAL DATA SHEETPRODUCT SHEET2018 DUCTLESS CATALOGSPECIFICATIONS

DLCLRA Outdoor Unit
Heat Pump
Size30
Outdoor ModelDLCSRAH30AAK
Electrical
Voltage-Phase-CycleV-Ph-Hz208/230-1-60
Power SupplyIndoor unit powered from outdoor unit
MCAA20
MOCP – Fuse RatingA.30
Operating Range
Cooling Outdoor DB Min – Max° F (° C)-13°~122° (-25°~50°)
Heating Outdoor DB Min – Max° F (° C)-13°~86° (-25°~30°)
Piping
Total Piping Lengthft (m)164 (50)
Lift (OD below ID)ft (m)82 (25)
Pipe Connection Size – Liquidin (mm)3/8 (9.52)
Pipe Connection Size – Suctionin (mm)5/8 (16)
Refrigerant
TypeR410A
Chargelbs (kg)6.06 (2.75)
Outdoor
Unit Widthin (mm)37.24 (946)
Unit Heightin (mm)31.89 (810)
Unit Depthin (mm)16.54 (420)
Net Weightlbs (kg)137.8 (62.5)
AirflowCFM2,119
Sound PressuredB(A)60

Performance with DLFSHA High Wall

DLFSHAH30XAK
ENERGY STAR®YES
Cooling System Tons2.5
Cooling Rated CapacityBtu/h30,000
Cooling Cap. Range Min – MaxBtu/h8,000~32,500
SEER20.0
EER12.5
Heating Rated Capacity (47° F)Btu/h30,000
Heating Rated Capacity (17° F)Btu/h18,000
Heating Maximum Capacity (17° F)Btu/h25,300
Heating Maximum Capacity (5° F)Btu/h19,500
Heating Cap. Range Min – MaxBtu/h2,600~30,400
HSPF9.8
COP (47° F)W/W3.52
COP (17° F)W/W2.55
COP (5° F)W/W1.64

Indoor KEY FEATURES

  • ECO Mode
    The intelligent 8-hour night cycle program saves up to 60% of energy to make it more comfortable at night when sleeping.
  • Follow Me
    Built-in temperature sensor in the Remote Controller will sense its surrounding temperature and adjust the room temperature more accurately to provide comfort.


FEATURES

  • Available in 208/230V
  • Up to 20 SEER and 9.8 HSPF when paired with the DLCSRA outdoor unit
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Turbo Mode
  • Four fan speeds
  • Sleep Mode
  • ECO Mode
  • Up-down louver control (fixed or swing)
  • Follow Me (senses temperature at handheld remote)
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 25 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins

Compatible With:

  • DLCSRA Outdoor Unit Single Zone


Color: WhiteDOCUMENTSSUBMITTAL DATA SHEETPRODUCT SHEET2018 DUCTLESS CATALOGSPECIFICATIONS

DLFSHA High Wall
Heat Pump
System
Size30
Indoor ModelDLFSHAH30XAK
Electrical
Voltage-Phase-CycleV-PhHz208/230-1-60
Power SupplyIndoor unit powered from outdoor unit
MCA0.5
Operating Range
Cooling Indoor DB Min – Max° F (° C)62~90 (17~32)
Heating Indoor DB Min – Max° F (° C)32~86 (0~30)
Piping
Pipe Connection Size – Liquidin (mm)3/8 (9.52)
Pipe Connection Size – Suctionin (mm)5/8 (16)
Indoor
Unit Widthin (mm)53.15 (1350)
Unit Heightin (mm)14.37 (365)
Unit Depthin (mm)10.71 (272)
Net Weightlbs (kg)43.3 (21)
Number of Fan Speeds4
Airflow (lowest to highest)CFM441/618/882/912
Sound Pressure (lowest to highest)dB(A)33/44/51
Air Throw Dataft (m)49.2 (15)
Moisture RemovalPint/h (L/h)6.5 (3.09)
Field Drain Pipe Size O.D.in (mm)0.625 (16)
