12000 Btu Mini Split Hyper Heat Pump in Minisplitwarehouse.com Experts are here to help you purchase a Mini Split System at the best price. Get Midea 12000 Btu 21.5 SEER Ductless Mini Split Hyper Heat Pump AC. Price: $1,189.99 ex. tax. Call us 877-770-3548 or visit our website.

LINK:
https://www.minisplitwarehouse.com/category/12000_btu_mini_split_prices

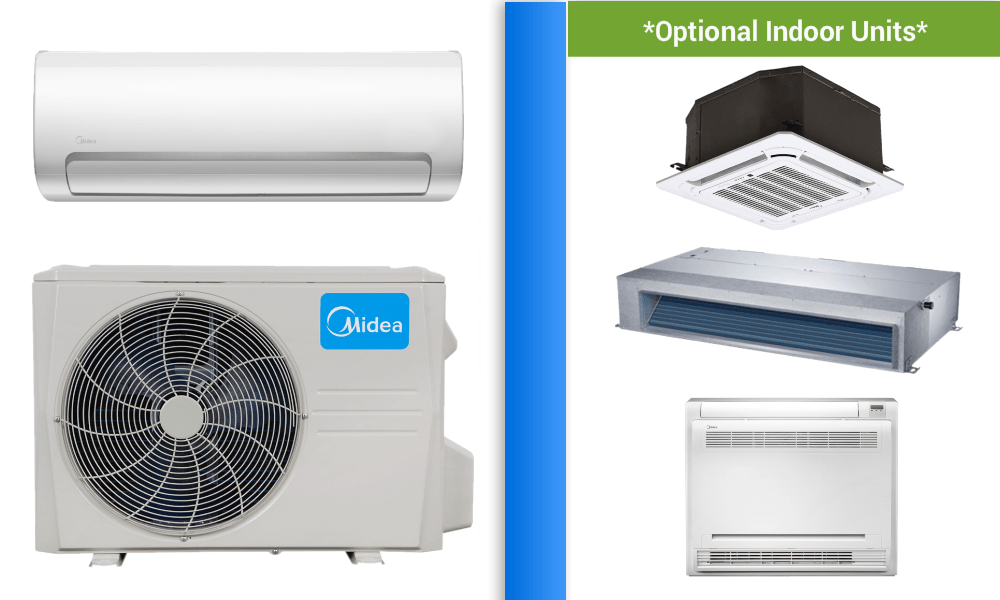

*This Midea Mini Split Package Includes:

*(1) Indoor Unit : (DLFSH)AH12XAK

DLFSH Features Include:
˜ECO Mode˜
˜Follow Me˜ ˜9 Modes˜
˜Fully Modulating Fan Speeds˜
˜
Louver Control˜ ˜Carbon Filter˜
˜Gold Coated Coils˜

*(1) Outdoor Unit: (DLCSR)AH12AAK
Specifications

DLCSR Features Include:
˜Heats & Cools (-22F/-13F)˜
˜Basepan Heater (Built in)˜ ˜100% Heat @ 5F˜
˜Gold Coated Coils˜ ˜Refrigerant Leak Detection˜
Auto Restart˜


˜7yr Compressor / 5yr Parts Warranty˜

**You are able to UPGRADE your indoor units to different styles!**
(Click For More Info/Specs):

DLFSH Wall Mount
Specifications
AHRI Certificate
DLFSC Ceiling Cassette
Specifications
AHRI Certificate
DLFSD Slim Ducted
Specifications
AHRI Certificate
DLFSF Console
Specifications
AHRI Certificate



Outdoor KEY FEATURES

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -22° F (-30° C), making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.


FEATURES

  • 100% heating capacity at 5° F (-15° C) sizes 12-18 (208/230V)
  • Available in 208/230V
  • Built-in basepan heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 54.6 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 82 ~ 164 ft. (25 ~ 50 m.)
  • Cooling operating range
    • -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range
    • Sizes 9-24 (208/230V)
      -22° ~ 86° F (-30° ~ 30°C)
    • 30, 36 (208/230V)
      -13° ~ 86° F (-25° ~ 30° C)

Compatible With:

  • DLFSHA High Wall
  • DLFSCA Cassette
  • DLFSDA Ducted
  • DLFSFA Console

Color: Clay


DOCUMENTSSUBMITTAL DATA SHEETPRODUCT SHEET2018 DUCTLESS CATALOGSPECIFICATIONS

DLCSRA Outdoor Unit
Heat Pump
Size12
Outdoor ModelDLCSRAH12AAK
Electrical
Voltage-Phase-CycleV-Ph-Hz208/230-1-60
Power SupplyIndoor unit powered from outdoor unit
MCAA9
MOCP – Fuse RatingA.15
Operating Range
Cooling Outdoor DB Min – Max° F (° C)-13°~122° (-25°~50°)
Heating Outdoor DB Min – Max° F (° C)-22°~86° (-30°~30°)
Piping
Total Piping Lengthft (m)82 (25)
Lift (OD below ID)ft (m)32 (10)
Pipe Connection Size – Liquidin (mm)1/4 (6.35)
Pipe Connection Size – Suctionin (mm)1/2 (12.7)
Refrigerant
TypeR410A
Chargelbs (kg)3.31 (1.5)
Outdoor
Unit Widthin (mm)31.5 (800)
Unit Heightin (mm)21.81 (554)
Unit Depthin (mm)13.11 (333)
Net Weightlbs (kg)91.7 (41.6)
AirflowCFM1,177
Sound PressuredB(A)54.6

Performance with DLFSHA High Wall

DLFSHAH12XAK
ENERGY STAR®YES
Cooling System Tons1.0
Cooling Rated CapacityBtu/h12,000
Cooling Cap. Range Min – MaxBtu/h4,200~12,900
SEER21.5
EER12.5
Heating Rated Capacity (47° F)Btu/h12,000
Heating Rated Capacity (17° F)Btu/h7,600
Heating Maximum Capacity (17° F)Btu/h12,800
Heating Maximum Capacity (5° F)Btu/h12,100
Heating Cap. Range Min – MaxBtu/h1,400~13,900
HSPF11.0
COP (47° F)W/W3.20
COP (17° F)W/W2.40
COP (5° F)W/W1.60

Performance with DLFSCA Cassette

DLFSCAH12XAK
ENERGY STAR®YES
Cooling System Tons1.0
Cooling Rated CapacityBtu/h12,000
Cooling Cap. Range Min – MaxBtu/h3,300~12,000
SEER19.5
EER12.5
Heating Rated Capacity (47° F)Btu/h12,000
Heating Rated Capacity (17° F)Btu/h8,200
Heating Maximum Capacity (17° F)Btu/h14,700
Heating Maximum Capacity (5° F)Btu/h12,300
Heating Cap. Range Min – MaxBtu/h3,300~15,000
HSPF10.2
COP (47° F)W/W3.55
COP (47° F)W/W2.43
COP (5° F)W/W1.70

Performance with DLFSDA Ducted

DLFSDAH12XAK
ENERGY STAR®YES
Cooling System Tons1.0
Cooling Rated CapacityBtu/h12,000
Cooling Cap. Range Min – MaxBtu/h3,300~12,000
SEER20.5
EER12.5
Heating Rated Capacity (47° F)Btu/h12,500
Heating Rated Capacity (17° F)Btu/h8,100
Heating Maximum Capacity (5° F)Btu/h14,700
Heating Maximum Capacity (5° F)Btu/h12,300
Heating Cap. Range Min – MaxBtu/h3,300~15,000
HSPF11.0
COP (47° F)W/W3.55
COP (17° F)W/W2.43
COP (5° F)W/W1.70

Performance with DLFSFA Console

DLFSFAH12XAK
ENERGY STAR®YES
Cooling System Tons1.0
Cooling Rated CapacityBtu/h12,000
Cooling Cap. Range Min – MaxBtu/h4,200~13,100
SEER19.4
EER12.5
Heating Rated Capacity (47° F)Btu/h12,000
Heating Rated Capacity (17° F)Btu/h9,600
Heating Maximum Capacity (5° F)Btu/h13,500
Heating Maximum Capacity (5° F)Btu/h12,300
Heating Cap. Range Min – MaxBtu/h4,800~13,600
HSPF10.5
COP (47° F)W/W3.43
COP (17° F)W/W2.66
COP (5° F)W/W1.62
