Midea Multi-Zone 5 Rooms in Minisplitwarehouse.com Find the best Multi Zone Mini Split deals that fit your budget. Get Midea 5 Zone 20.5 SEER Ductless Mini Split Hyper Heat Pump AC. Price: $3,787.99 ex. tax. Call us 877-770-3548 or visit our website.

LINK:
https://www.minisplitwarehouse.com/category/5-zones

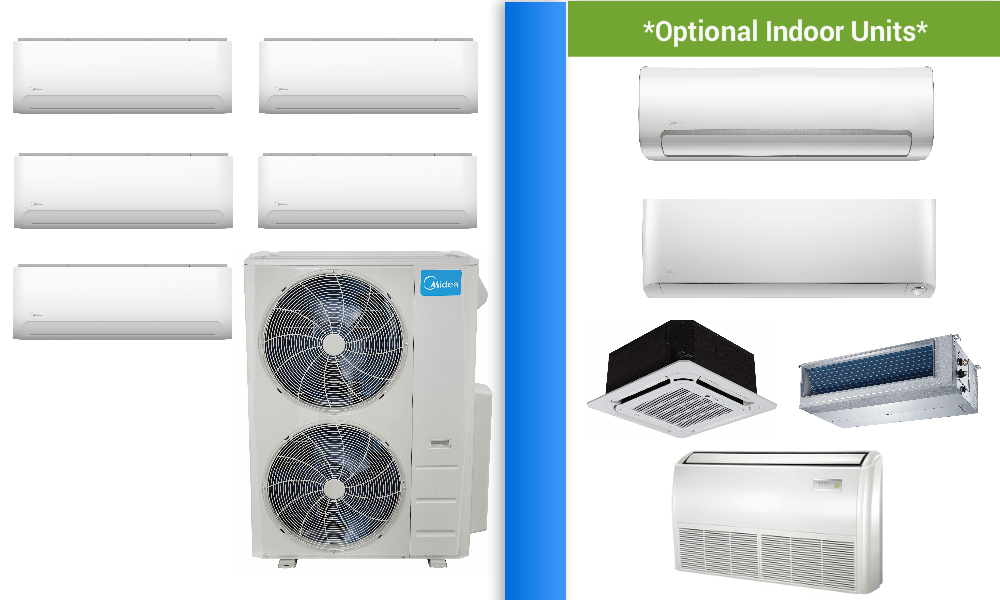

*This Midea 5 Zone Mini Split Package Includes:

*(1) 5 Zone Outdoor Unit 48,000Btu (20.5 SEER)

DLCMRA Features Include:
∼Heats
 & Cools(-22F/-13F)Basepan Heater (Built in)∼Gold Coated Coils∼7yrCompressor 5yrParts Warranty
SpecificationsBrochureAHRI
Allowed Indoor Combinations

*
(5) Indoor Units 9000Btu Wall Mount (DLFEH)

https://www.youtube.com/embed/IPWh9YVTfy0
DLFEH Features Include:


Convenient Filter Removal∼ Remove filter from top of unit, no need to open front cover.
Improved Servicability∼ Full Access to terminal connections and fan after lifting front cover.
8 Modes∼ Cool, Heat, Dry, Fan, Auto, TURBO, Sleep, Heating Setback(46F)
4 Fan SpeedsFollow Me∼ Uses remote control as the sensor
Gold Coated Coils∼Remote Controls∼
Specifications
Brochure
Warranty Card
____________________________________________________________
Installation Kits are not included, please see the dropdown boxes above for those options.
_______________________________________________________________________

With This Package you are able to
 “UPGRADE”
the default 9000btu Wall Mount DLFEH to larger sizes,
different series and types of indoor units like:
Advantage Series Wall Mount, Max Series Wall Mount,
Ceiling Cassette’s , Slim Hidden Ducted,
Console/Universal Mount

Click the Images Below for more information


Brochure

Brochure

Brochure

Brochure

Brochure

Brochure
_________________________________________________________________

KEY FEATURES

  • Space Saving Installation
    Up to five indoor units can be connected to a single outdoor unit, reducing the number of outdoor units required. All indoor units can be individually controlled and do not need to be installed at the same time.
  • Multiple Indoor Unit Styles
    Flexibility on the options of indoor unit styles to fit any application or need.


FEATURES

  • Available in 208/230V
  • Connect 1 ~ 5, multiple style indoor units
  • Built-in basepan heater
  • Quiet outdoor operation, as low as 62 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Total piping length 328 ft. (40~100 m.)
  • Vertical lift/prop piping length 65 ft. (15~20 m.)
  • Cooling operating range -13°~122° F (-25°~50° C)
  • Heating operating range -22°~86° F (-30°~30° C)

Compatible With:

  • DLFPHA High Wall
  • DLFSHA High Wall
  • DLFEHA High Wall
  • DLFSCA Cassette
  • DLFSDA Ducted
  • DLFSFA Console

Color: Clay


DOCUMENTSSUBMITTAL DATA SHEETPRODUCT SHEET2018 DUCTLESS CATALOGSPECIFICATIONS

DLCMRA Outdoor Unit
Heat Pump
Size48
Outdoor ModelDLCMRAH48EAK
Max Number of Zones5
Performance Non-Ducted
ENERGY STAR®NO
Cooling System Tons4.0
Cooling Rated CapacityBtu/h48,000
Cooling Cap. Range Min – MaxBtu/h8,560~53,160
SEER20.5
EER11
Heating Rated Capacity (47° F)Btu/h48,000
Heating Maximum Capacity (5° F)Btu/h37,900
Heating Cap. Range Min – MaxBtu/h7,210~55,820
HSPF10.2
COP (47° F)W/W3.5
COP (5° F)W/W2.8
Performance Combination Ducted and Non-Ducted
ENERGY STAR®NO
Cooling System Tons4.0
Cooling Rated CapacityBtu/h48,000
Cooling Cap. Range Min – MaxBtu/h8,510~52,580
SEER19.1
EER10.6
Heating Rated Capacity (47° F)Btu/h49,000
Heating Maximum Capacity (5° F)Btu/h37,350
Heating Cap. Range Min – MaxBtu/h7,045~54,935
HSPF10.2
COP (47° F)W/W3.5
COP (5° F)W/W2.3
Performance Ducted
ENERGY STAR®NO
Cooling System Tons4.0
Cooling Rated CapacityBtu/h48,000
Cooling Cap. Range Min – MaxBtu/h8,60~52,000
SEER17.6
EER10.1
Heating Rated Capacity (47° F)Btu/h50,000
Heating Maximum Capacity (5° F)Btu/h36,800
Heating Cap. Range Min – MaxBtu/h6,880~54,050
HSPF10.1
COP (47° F)W/W3.4
COP (5° F)W/W1.8
Operating Range
Cooling Outdoor DB Min – Max° F (° C)-13~122 (-25~50)
Heating Outdoor DB Min – Max° F (° C)-22~86 (-30~30)
Piping
Total Piping Lengthft (m)328 (100)
Piping to furthest FCUft (m)115 (35)
Drop (OD above ID)ft (m)65 (20)
Lift (OD below ID)ft (m)65 (20)
Pipe Connection Size – Liquidin (mm)1/4*5 (6.35*5)
Pipe Connection Size – Suctionin (mm)1/2 *2+ 3/8*3 (12.7*2+9.52*3)
Refrigerant
TypeR410A
Chargelbs (kg)10.13 (4.6)
Electrical
Voltage-Phase-CycleV-Ph-Hz208/230-1-60
Power SupplyIndoor unit powered from outdoor unit
MCAA35
MOCP – Fuse RatingA.50
Outdoor
Unit Widthin (mm)41.15 (1045)
Unit Heightin (mm)52.48 (1333)
Unit Depthin (mm)17.63 (448)
Net Weightlbs (kg)223.8 (101.5)
AirflowCFM4,500
Sound PressuredB(A)64

INDOOR COMBINATIONS

2 Zone
Combinations
3 Zone
Combinations
4 Zone
Combinations
5 Zone
Combinations
18+189+9+189+9+9+99+9+9+9+9
18+249+9+249+9+9+129+9+9+9+12
24+249+12+129+9+9+189+9+9+9+18
9+12+189+9+9+249+9+9+9+24
9+12+249+9+12+129+9+9+12+12
9+18+189+9+12+189+9+9+12+18
9+18+249+9+12+249+9+9+18+18
9+24+249+9+18+189+9+12+12+12
12+12+129+12+12+129+9+12+12+18
12+12+189+12+12+189+12+12+12+12
12+12+249+12+12+249+12+12+12+18
12+18+189+12+18+1812+12+12+12+12
12+18+249+18+18+18
12+24+2412+12+12+12
18+18+1812+12+12+18
18+18+2412+12+12+24
12+12+18+18
= Hyper Heating down to -22° F
