Multi-Zone 5 Rooms in Minisplitwarehouse.com Our multi zone ductless experts are here to help you purchase a system at the best price possible. Get Daikin 5 Zone Ductless Mini Split Heat Pump Air Conditioner. Price: $6,775.95 ex. tax. Call us 877-770-3548 or visit our website.

LINK:
https://www.minisplitwarehouse.com/category/5-zones

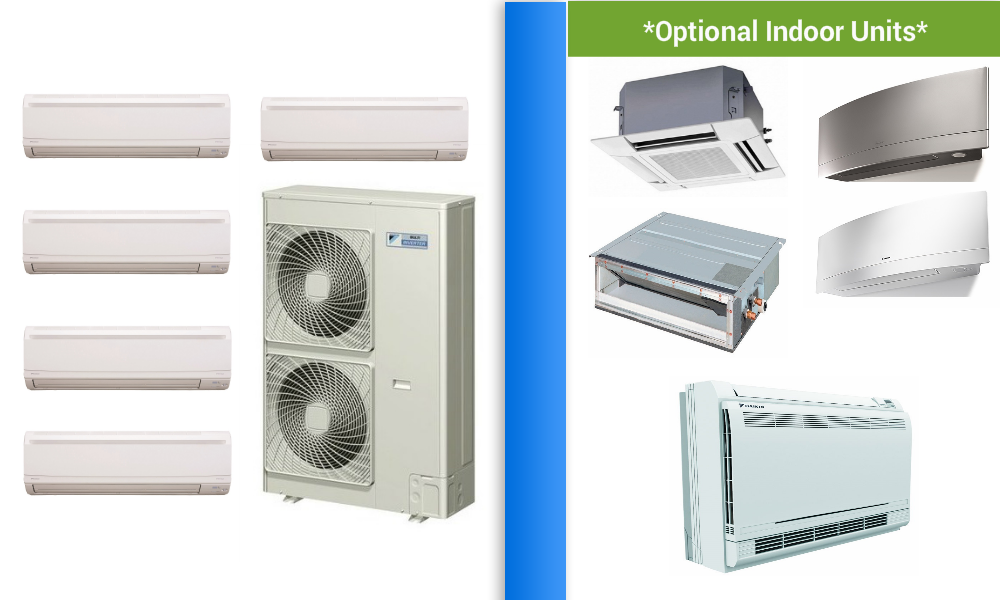

NEW Daikin RMXS Multi ZoneLine
*This Package Includes:

*(1) Outdoor Unit
RMXS48LVJU: 48000 Btu
(Allows up to 62,400 Btu)
(up to 18.8 SEER)

Features Include:
∼Heats
 & Cools(5F/23F)∼12yr Warranty
-Max Allowed Total Copper Lines 633′-
Cut SheetBrochure
Specifications

*(5) Indoor Units
(CTXS)07LVJU: 7000 Btu Wall Mounts
(Upgrades are Available)
(includes remotes
)

*Make sure not to exceed the allowed indoor combinations when upgrading*
-Please contact us before or after ordering, we have software that can validate combinations-

Allowed Indoor Combinations

*Branch Box (BPMK)/REFNET Joint (KHRP) are required other sellers do not include this*
*(1) KHRP26A22T9: REFNET Joints

*(1) BPMKS049A3U: 3 Port Branch Box

*(1) BPMKS048A2U: 2 Port Branch Boxes


*3/4 & 3/8 Copper Line is required from compressor to KHRP(brazed) other sellers do not include*
*(1x 25′) Copper Line (3/8” & 3/4”)

*3/8 & 5/8 Copper Line is needed from KHRP to BPMKS*
*(2x 25′) Copper Line (3/8” & 5/8” + 1/4” & 1/2”)
*OR (2) 3/8 & 5/8, depending on your indoor selection*

**Copper Lines for indoor units to BPMK are NOT INCLUDED**
(Please see dropdown boxes to add)
MAX ALLOWED Copper =633′

-Each BPMK requires 2-wire communication & 3-wire power (Not Included/Offered)-
-Wires we do offer as an option are 4-wire from the BPMK to the indoor unit-


_________________________________________________________
*With This Package
“CUSTOMIZE” the default indoor units
with different series and types of indoor units like:

FTXS Series Wall Mounts
CTXG EMURA Wall Mount, FFQ Ceiling Cassette’s,
FDXS/CDXS/FDMQ Slim Hidden Ducted, FVXS Floor Mount

(Click For More Info/Specs):

CTXS / FTXS Wall Mount
(CTXS)07LVJU
(FTXS)09LVJU
(FTXS)12LVJU
(FTXS)15LVJU
(FTXS)18LVJU
(FTXS)24LVJU
*Intelligent Eye(FTXS)*3D Air Flow*Weekly Timer
*Wireless Remote Included
FTXR Emura Wall Mount
(FTXR)09TVJU
(FTXR)12TVJU
(FTXR)18TVJU
(W)= White (S)= Silver
*Intelligent Eye*3D Air Flow*Weekly Timer
*Wireless Remote Included
FVXS Floor Mount
(FVXS)09NVJU
(FVXS)12NVJU
(FVXS)15NVJU
(FVXS)18NVJU
*Econo/Powerful Mode*Program Dry Function
*Wireless Remote Included
FDXS/CDXS Low Static Ducted
(FDXS)09LVJU
(FDXS)12LVJU
(CDXS)15LVJU
(CDXS)18LVJU
(CDXS)24LVJU
*Econo/Powerful Mode*Program Dry Function
*Wireless Remote Included
FDMQ Mid Static Ducted
(FDMQ)09RVJU
(FDMQ)12RVJU
(FDMQ)15RVJU
(FDMQ)18RVJU
(FDMQ)24RVJU
*Longer Duct Runs*Powerful/Dry Function
*Wired Thermostat Included
(BRC1E73)
FFQ Ceiling Cassette
(FFQ)09Q2VJU
(FFQ)12Q2VJU
(FFQ)15Q2VJU
(FFQ)18Q2VJU
*Award Winnin Design*Program Dry Function
*Wireless Remote
& Grill Included

Daikin’s Multi-Split Systems are ideal for multi-room applications desiring individual room comfort in a space-saving design. The 8-Zone Multi-Zone system is the ultimate, flexible solution for individual zone comfort. Connecting up to eight indoor units to a single outdoor unit reduces installation space and costs while maximizing comfort and energy savings. With a choice of three indoor unit types in a wide range of capacities, the 8-Zone Multi-Zone allows mixed and matched combinations for absolute comfort in almost any residential or light commercial application.

FTXS – Discreet wall mounted unit providing high efficiency and comfort
» Discreet, stylish front panel blends easily with the wall, and matches all interior decors
» Dry program allows humidity levels to be reduced without variations in room temperature
» Intelligent Eye function reduces heating or cooling operation during unoccupied periods

FTXS is a feature-packed, intelligent wall mounted system that includes intelligent eye for energy savings and horizontal auto swing outlet fins for 3-D airflow comfort.

EMURA™– Designed to perfectly balance technological capability and the beauty of aerodynamics
» Iconic award winning design and engineering excellence
» Elegant finish in pure matte white or modern silver
» Two-area intelligent eye sensor controls comfort and allows for energy savings during unoccupied periods
» Titanium apatite photo-catalytic air purification

Daikin Emura™ was designed to perfectly balance technological leadership and the beauty of aerodynamics. The next generation of home air conditioning is here, offering smart technology within a sleek, curved silhouette. Daikin Emura™ air conditioners are designed to satisfy a uniquely “Designer” sense of style. Offering a sophisticated solution for contemporary interiors, the new Daikin Emura™ combines form and functionality to create an icon of contemporary climate control. Available in silver or pure matte white, Daikin Emura™ makes a modern design statement on any wall. Inside the understated exterior is a highly intelligent system, which can be controlled remotely via the Daikin Comfort Control App even away from the home.

FVXS – Floor mounted unit for optimal heating comfort thanks to dual airflow
» Its low height enables the unit to fit perfectly beneath a window
» Can be installed against a wall or recessed
» Vertical auto swing moves the louver up and down for efficient air and temperature distribution

Floor mounted units are simple to install and can be setup in various configurations, on the floor or hanging low on a wall. Its low height enables the unit to fit beneath a window. The airflow distribution pattern of Daikins floor mounted unit is ideal for heating a space, and is a perfect replacement to traditional radiant systems.

FDXS/CDXS – Slim Ducted Concealed Ceiling Unit capable of up to 0.18 esp
» External static pressure facilitates units use with minimal length of duct runs
» Discretely concealed in the ceiling: only the suction and discharge grills are visible
» DC fan motor for low energy consumption

A slim-ducted concealed ceiling unit provides an extremely unobtrusive, compact solution, where only the discharge and intake grilles are visible. In addition, they free up floor and wall space to minimize the impact on décor.

FDMQ – Ducted Concealed Indoor Unit capable of up to .6 esp
» Higher external static pressure capabilities allow for longer duct runs and easily implementing
high MERV filters
» Drain pan inspection port makes it easy to observe drain pan conditions
» Rear or bottom return air configurations for installation flexibility

The FDMQ ducted concealed indoor unit provides external static pressure capabilities of up to .6, allowing for longer duct runs and easy implementation of high MERV filters. This ducted unit on a multi-zone system delivers heating and cooling comfort for the entire home, without distracting from décor. With up to 20.2 SEER level, FDMQ ducted concealed indoor unit is ENERGY STAR® Certified.

VISTA™– Unique design that integrates seamlessly into the ceiling
» Iconic award wining design and engineering excellence
» Elegant finish in white or silver / white combination
» DC fan motor and two optional intelligence sensors for energy efficiency

VISTA™ is a remarkable blend of iconic design and engineering excellence with an elegant white or a silver and white finish. Fitting within the ceiling grid and discreetly mounted to the ceiling itself, VISTA™ is stylish, low profile, and compact. High efficiency and comfort is delivered through the combined use of floor and presence sensors (optional). It is also possible to close individual louvers via the wired remote control for personalized comfort.
