Midea 2×24000 Btu Multi-Zone in Minisplitwarehouse.com Find the best Multi Zone Mini Split deals that fit your budget. Get Midea 2×24000 Btu 20.5 SEER Ductless Mini Split Hyper Heat Pump AC. Price: $3,582.99 ex. tax. Call us 877-770-3548 or visit our website.

LINK:
https://www.minisplitwarehouse.com/category/2-zones

*This Package Includes:
*(1) 5 Zone Outdoor Unit 48,000Btu (21 SEER)

DLCMRA Features Include:
∼Heats
 & Cools(-22F/-13F)Basepan Heater (Built in)∼Gold Coated Coils∼7yrCompressor 5yrParts Warranty
SpecificationsBrochureAHRI
Allowed Indoor Combinations

*
(2) Indoor Units 24000 Btu Wall Mount (DLFSH)

DLFSH Features Include:
ECO-Mode∼ SAVE 60% Energy
8 Modes∼ Cool, Heat, Dry, Fan, Auto, TURBO, Sleep, Heating Setback(46F)
4 Fan SpeedsFollow Me∼ Uses remote control as the sensor
Gold Coated Coils∼Remote Controls∼
Specifications
Brochure
Warranty Card
____________________________________________________________
Installation Kits are not included, please see the dropdown boxes above for those options.
_______________________________________________________________________

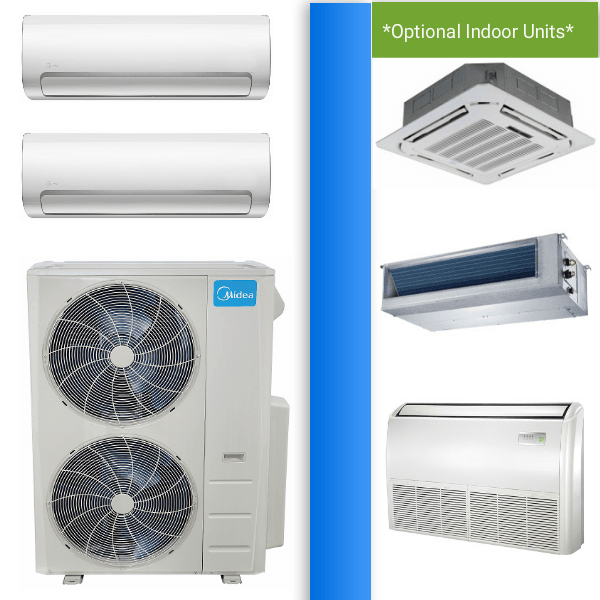

With This Package you are able to
 “UPGRADE”
to different types of indoor units like:
Ceiling Cassette’s , Slim Hidden Ducted,
Console/Universal Mount
Click the Images Below for more information



_______________________________________________________

 Midea Series is Energy SavingDC Inverter 180 degree Sine Wave, Super DC Inverter Air Conditioner adopts the advanced 180 degree Sine Wave. DC Inverter driving technology and Brushless DC (BLDC) motor (Revolution Variable) compressor. More energy-saving, more consistent and quieter than 120 degree Square Wave DC Inverter. Mini Split Reviews | Compare toHome Depot Mini Splits, Fujistu Mini Splits, Mitsubishi Mini Splits, LG Mini Splits, Samsung Mini Splits, Sanyo Mini Splits, Ramsond Mini Splits, Trane Mini Splits, Panasonic Mini Splits, Lennox Mini Splits, Questside Mini Splits, Daikin Mini Splits, Toshiba Mini Splits, Carrier Mini Splits, Hitachi Mini Splits, Lowes Mini Splits, Gree Mini Splits, Senville Mini Splits, Thermocore Mini Splits

Outdoor KEY FEATURES

  • Space Saving Installation
    Up to five indoor units can be connected to a single outdoor unit, reducing the number of outdoor units required. All indoor units can be individually controlled and do not need to be installed at the same time.
  • Multiple Indoor Unit Styles
    Flexibility on the options of indoor unit styles to fit any application or need.


FEATURES

  • Available in 208/230V
  • Connect 1 ~ 5, multiple style indoor units
  • Built-in basepan heater
  • Quiet outdoor operation, as low as 62 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Cooling operating range -13°~122° F (-25°~50° C)
  • Heating operating range -22°~86° F (-30°~30° C)

Compatible With:

  • DLFPHA High Wall
  • DLFSHA High Wall
  • DLFEHA High Wall
  • DLFSCA Cassette
  • DLFSDA Ducted
  • DLFSFA Console

Color: Clay


DOCUMENTSSUBMITTAL DATA SHEETPRODUCT SHEET2018 DUCTLESS CATALOGSPECIFICATIONS

DLCMRA Outdoor Unit
Heat Pump
Size48
Outdoor ModelDLCMRAH48EAK
Max Number of Zones5
Performance Non-Ducted
ENERGY STAR®NO
Cooling System Tons4.0
Cooling Rated CapacityBtu/h48,000
Cooling Cap. Range Min – MaxBtu/h8,560~53,160
SEER20.5
EER11
Heating Rated Capacity (47° F)Btu/h48,000
Heating Maximum Capacity (5° F)Btu/h37,900
Heating Cap. Range Min – MaxBtu/h7,210~55,820
HSPF10.2
COP (47° F)W/W3.5
COP (5° F)W/W2.8
Performance Combination Ducted and Non-Ducted
ENERGY STAR®NO
Cooling System Tons4.0
Cooling Rated CapacityBtu/h48,000
Cooling Cap. Range Min – MaxBtu/h8,510~52,580
SEER19.1
EER10.6
Heating Rated Capacity (47° F)Btu/h49,000
Heating Maximum Capacity (5° F)Btu/h37,350
Heating Cap. Range Min – MaxBtu/h7,045~54,935
HSPF10.2
COP (47° F)W/W3.5
COP (5° F)W/W2.3
Performance Ducted
ENERGY STAR®NO
Cooling System Tons4.0
Cooling Rated CapacityBtu/h48,000
Cooling Cap. Range Min – MaxBtu/h8,60~52,000
SEER17.6
EER10.1
Heating Rated Capacity (47° F)Btu/h50,000
Heating Maximum Capacity (5° F)Btu/h36,800
Heating Cap. Range Min – MaxBtu/h6,880~54,050
HSPF10.1
COP (47° F)W/W3.4
COP (5° F)W/W1.8
Operating Range
Cooling Outdoor DB Min – Max° F (° C)-13~122 (-25~50)
Heating Outdoor DB Min – Max° F (° C)-22~86 (-30~30)
Piping
Total Piping Lengthft (m)328 (100)
Piping to furthest FCUft (m)115 (35)
Drop (OD above ID)ft (m)65 (20)
Lift (OD below ID)ft (m)65 (20)
Pipe Connection Size – Liquidin (mm)1/4*5 (6.35*5)
Pipe Connection Size – Suctionin (mm)1/2 *2+ 3/8*3 (12.7*2+9.52*3)
Refrigerant
TypeR410A
Chargelbs (kg)10.13 (4.6)
Electrical
Voltage-Phase-CycleV-Ph-Hz208/230-1-60
Power SupplyIndoor unit powered from outdoor unit
MCAA35
MOCP – Fuse RatingA.50
Outdoor
Unit Widthin (mm)41.15 (1045)
Unit Heightin (mm)52.48 (1333)
Unit Depthin (mm)17.63 (448)
Net Weightlbs (kg)223.8 (101.5)
AirflowCFM4,500
Sound PressuredB(A)64

INDOOR COMBINATIONS

2 Zone
Combinations
3 Zone
Combinations
4 Zone
Combinations
5 Zone
Combinations
18+189+9+189+9+9+99+9+9+9+9
18+249+9+249+9+9+129+9+9+9+12
24+249+12+129+9+9+189+9+9+9+18
9+12+189+9+9+249+9+9+9+24
9+12+249+9+12+129+9+9+12+12
9+18+189+9+12+189+9+9+12+18
9+18+249+9+12+249+9+9+18+18
9+24+249+9+18+189+9+12+12+12
12+12+129+12+12+129+9+12+12+18
12+12+189+12+12+189+12+12+12+12
12+12+249+12+12+249+12+12+12+18
12+18+189+12+18+1812+12+12+12+12
12+18+249+18+18+18
12+24+2412+12+12+12
18+18+1812+12+12+18
18+18+2412+12+12+24
12+12+18+18
= Hyper Heating down to -22° F
