Daikin 7 Zone Air Conditioner in Minisplitwarehouse.com Find the best Multi Zone Mini Split deals that fit your budget. Get Daikin 7 Zone Ductless Mini Split Heat Pump AC. Price: $8,084.93 ex. tax. Call us 877-770-3548 or visit our website.

LINK:
https://www.minisplitwarehouse.com/category/7-zones

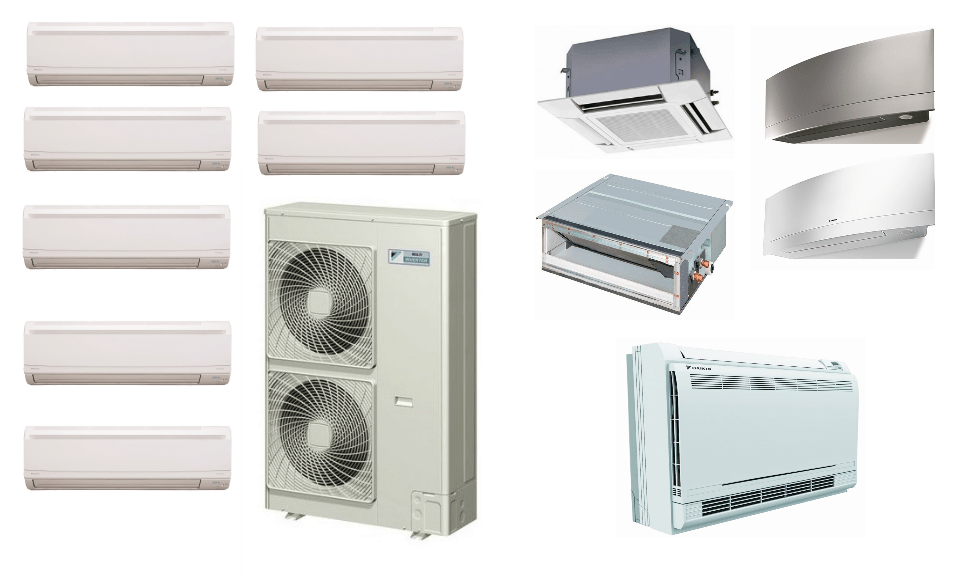

NEW Daikin RMXS Multi ZoneLine
*This Package Includes:

*(1) Outdoor Unit
RMXS48LVJU: 48000 Btu
(Allows up to 62,400 Btu)
(up to 18.8 SEER)

Features Include:
∼Heats
 & Cools(5F/23F)∼12yr Warranty
-Max Allowed Total Copper Lines 633′-
Cut SheetBrochure
Specifications

*(7) Indoor Units
(CTXS)07LVJU: 7000 Btu Wall Mounts
(Upgrades are Available)
(includes remotes
)

*Make sure not to exceed the allowed indoor combinations when upgrading*
Allowed Indoor Combinations

-Please contact us before or after ordering, we have software that can validate combinations-

*Branch Box (BPMK)/REFNET Joint (KHRP) are required other sellers do not include this*
*(2) KHRP26A22T9: REFNET Joints

*(1) BPMKS049A3U: 3 Port Branch Box

*(2) BPMKS048A2U: 2 Port Branch Boxes


*3/4 & 3/8 Copper Line is required from compressor to first KHRP(brazed) other sellers do not include*
*(1x 25′) Copper Line (3/8” & 3/4”)

*3/8 & 5/8 Copper Line is needed from 1st KHRP to KHRP & BPMKS049A3U*
*(2x 25′) Copper Line (3/8” & 5/8”)

*1/4 & 1/2 Copper Line is needed from 2nd KHRP to both BPMKS048A2U*
*(2x 25′) Copper Line (1/4” & 1/2”)

**Copper Lines for indoor units to BPMK are NOT INCLUDED**
(Please see dropdown boxes to add)
MAX ALLOWED Copper =633′

-Each BPMK requires 2-wire communication & 3-wire power (Not Included/Offered)-
-Wires we do offer as an option are 4-wire from the BPMK to the indoor unit-


_________________________________________________________
*With This Package
“CUSTOMIZE” the default indoor units
with different series and types of indoor units like:

FTXS Series Wall Mounts
CTXG EMURA Wall Mount, FFQ Ceiling Cassette’s,
FDXS/CDXS/FDMQ Slim Hidden Ducted, FVXS Floor Mount
