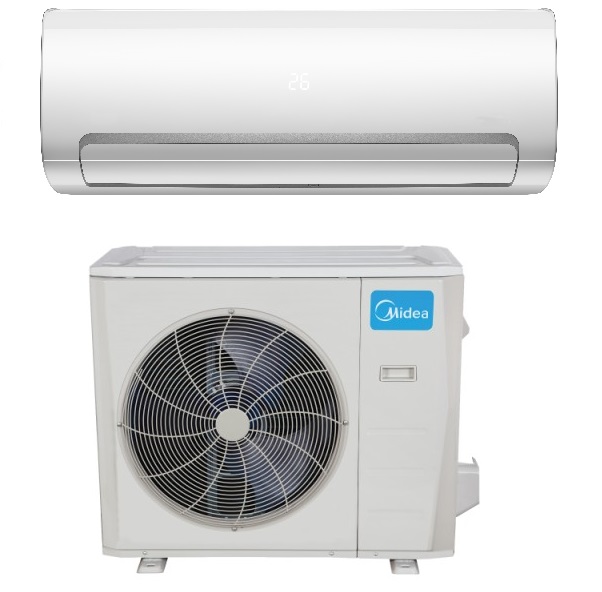

Hyper Heat Pump AC in Minisplitwarehouse.com Why shop anywhere else when we have the best deals around? Get Midea 36000 Btu 18 SEER Ductless Mini Split Hyper Heat Pump AC. Price: $2,189.99 ex. tax. Call us 877-770-3548 or visit our website.

LINK:
https://www.minisplitwarehouse.com/category/more-categories

*This Midea Mini Split Package Includes:

*(1) Indoor Unit : (DLFSH)

DLFSH Features Include:
˜ECO Mode˜
˜Follow Me˜ ˜9 Modes˜
˜Fully Modulating Fan Speeds˜
Louver Control˜ ˜Follow Me˜
˜Carbon Filter˜Gold Coated Coils˜

*(1) Outdoor Unit: (DLCSR)
Cut Sheet/Specification
DLCSR Features Include:
˜Heats & Cools (-13F/-13F)˜˜Basepan Heater (Built in
˜Gold Coated Coils˜ ˜Refrigerant Leak Detection˜
˜Auto Restart˜



(Click For More Info/Specs):

DLFSH Wall Mount
Specifications

Outdoor KEY FEATURES

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -13° F (-25° C), making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.


FEATURES

  • Available in 208/230V
  • Built-in basepan heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 54.6 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 82 ~ 164 ft. (25 ~ 50 m.)
  • Cooling operating range
    • -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range
    • Sizes 30, 36 (208/230V)
      -13° ~ 86° F (-25° ~ 30° C)

Compatible With:

  • DLFSHA High Wall

Color: Clay


DOCUMENTSSUBMITTAL DATA SHEETPRODUCT SHEET2018 DUCTLESS CATALOGSPECIFICATIONS

DLCLRA Outdoor Unit
Heat Pump
Size36
Outdoor ModelDLCSRAH36AAK
Electrical
Voltage-Phase-CycleV-Ph-Hz208/230-1-60
Power SupplyIndoor unit powered from outdoor unit
MCAA25
MOCP – Fuse RatingA.35
Operating Range
Cooling Outdoor DB Min – Max° F (° C)-13°~122° (-25°~50°)
Heating Outdoor DB Min – Max° F (° C)-13°~86° (-25°~30°)
Piping
Total Piping Lengthft (m)164 (50)
Lift (OD below ID)ft (m)82 (25)
Pipe Connection Size – Liquidin (mm)3/8 (9.52)
Pipe Connection Size – Suctionin (mm)5/8 (16)
Refrigerant
TypeR410A
Chargelbs (kg)7.49 (3.4)
Outdoor
Unit Widthin (mm)37.24 (946)
Unit Heightin (mm)31.89 (810)
Unit Depthin (mm)16.54 (420)
Net Weightlbs (kg)143.3 (65)
AirflowCFM2,119
Sound PressuredB(A)60

Performance with DLFSHA High Wall

DLFSHAH36XAK
ENERGY STAR®NO
Cooling System Tons3
Cooling Rated CapacityBtu/h36,000
Cooling Cap. Range Min – MaxBtu/h8,000~37,800
SEER18
EER10.5
Heating Rated Capacity (47° F)Btu/h36,000
Heating Rated Capacity (17° F)Btu/h21,000
Heating Maximum Capacity (17° F)Btu/h29,700
Heating Maximum Capacity (5° F)Btu/h23,400
Heating Cap. Range Min – MaxBtu/h2,700~36000
HSPF10
COP (47° F)W/W3.44
COP (17° F)W/W2.60
COP (5° F)W/W1.50

Indoor KEY FEATURES

  • ECO Mode
    The intelligent 8-hour night cycle program saves up to 60% of energy to make it more comfortable at night when sleeping.
  • Follow Me
    Built-in temperature sensor in the Remote Controller will sense its surrounding temperature and adjust the room temperature more accurately to provide comfort.


FEATURES

  • Available in 208/230V
  • Up to 18 SEER and 10 HSPF when paired with the DLCSRA outdoor unit
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Turbo Mode
  • Four fan speeds
  • Sleep Mode
  • ECO Mode
  • Up-down louver control (fixed or swing)
  • Follow Me (senses temperature at handheld remote)
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 25 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins

Compatible With:
