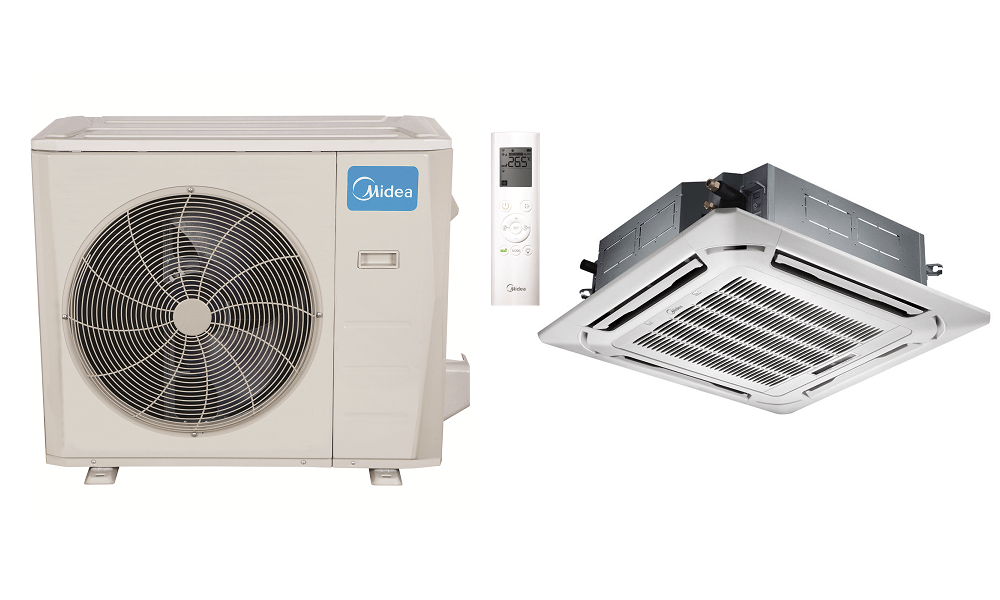

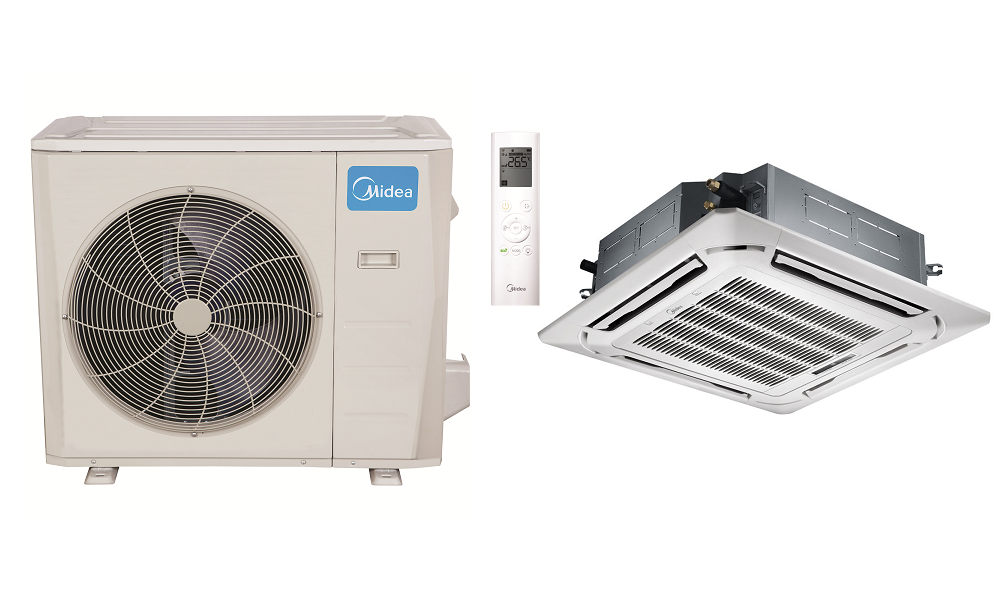

Ceiling Cassette Hyper Heat Pump in Minisplitwarehouse.com Ceiling cassettes are installed into the ceiling where the mechanics are hidden. Get Midea 36000 BTU 17.5 SEER Commercial Ceiling Cassette Mini Split Hyper Heat Pump AC. Price: $2,599.99 ex. tax. Call us 877-770-3548.

LINK:
https://www.minisplitwarehouse.com/category/ceiling-cassette

*This Package Includes:

*(1) Indoor Unit : (DLFLC)AH36XAK
(with Grill KSALG0201AAA)
DLFSC Features Include:
˜Built-in Condensate Lift pump˜ The cassette is supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit.
˜Integrated Electrical Components˜ Easy maintenance with the circuit box inside the unit, provides a more compact size for easier installation.
˜6 Modes˜ Cool, Heat, Dry, Fan, Auto, Heating Setback(46f)
˜Fully Modulating Fan Speeds˜Louver Control˜ (fixed or swing)
˜Follow Me˜ Uses remote control as the sensor.
˜Carbon Filter˜Gold Coated Coils˜

*(1) Outdoor Unit: (DLCLR)AH36AAK

DLCLR Features Include:
∼Heats & Cools (-22°F/-13°F)∼Basepan Heater (Built in)∼
∼Golden Hydrophilic Fins∼7yrCompressor 5yrParts Warranty
Click the Buttons below for detailed product info:

Product Brochure Compressor Specifications

DLFLC – Ceiling Cassette (17.5 SEER)

DLFLC Ceiling Cassette
Specifications
AHRI Certificate





Mini Split Reviews | Compare toHome Depot Mini Splits, Fujistu Mini Splits, Mitsubishi Mini Splits, LG Mini Splits, Samsung Mini Splits, Sanyo Mini Splits, Ramsond Mini Splits, Trane Mini Splits, Panasonic Mini Splits, Lennox Mini Splits, Questside Mini Splits, Daikin Mini Splits, Toshiba Mini Splits, Carrier Mini Splits, Hitachi Mini Splits, Lowes Mini Splits, Gree Mini Splits, Senville Mini Splits, Thermocore Mini Splits

Midea Series is Energy SavingDC Inverter 180 degree Sine Wave, Super DC Inverter Air Conditioner adopts the advanced 180 degree Sine Wave. DC Inverter driving technology and Brushless DC (BLDC) motor (Revolution Variable) compressor. More energy-saving, more consistent and quieter than 120 degree Square Wave DC Inverter.

Indoor KEY FEATURES

  • Built-in Condensate Lift pump
    The cassette is supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit.
  • 360° Air Flow Panel
    With the 360° air flow panel, air is distributed to every corner of the room.


FEATURES

  • Available in 208/230V
  • Up to 17.5 SEER and 11.0 HSPF when paired with DLCLRA outdoor unit
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Auto-restart function
  • Louver control (fixed or swing)
  • Three fan speeds
  • Outside air intake
  • Built-in condensate lift pump
  • Follow Me (senses temperature at handheld remote)
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 49 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Grille/ceiling panel 3 x 3 sizes 24 to 48 KSALG0201AAA

Compatible With:

  • DLCLRA Outdoor Unit Single Zone


Color: WhiteDOCUMENTSSUBMITTAL DATA SHEETPRODUCT SHEET2018 DUCTLESS CATALOGSPECIFICATIONS

DLFLCA Cassette
Heat Pump
System
Size36
Indoor ModelDLFLCAH36XAK
Electrical
Voltage-Phase-CycleV-Ph-Hz208/230-1-60
Power SupplyIndoor unit powered from outdoor unit
MCAA.0.8
Operating Range
Cooling Indoor DB Min – Max° F (° C)63~90 (17~32)
Heating Indoor DB Min – Max° F (° C)32~86 (0~30)
Piping
Pipe Connection Size – Liquidin (mm)3/8 (9.52)
Pipe Connection Size – Suctionin (mm)5/8 (16)
Indoor
Body Unit Widthin (mm)33.07 (840)
Body Unit Heightin (mm)9.65 (245)
Body Unit Depthin (mm)33.07 (840)
Body Net Weightlbs (kg)58.2 (26.4)
Grille Unit Widthin (mm)37.4 (950)
Grille Unit Heightin (mm)2.17 (55)
Grille Unit Depthin (mm)37.4 (950)
Grille Net Weightlbs (kg)11.02 (5)
Number of Fan Speeds3
Airflow (lowest to highest)CFM809/958/1095
Sound Pressure (lowest to highest)dB(A)49/52/55
Air Throw Dataft (m)30 (9)
Moisture RemovalPint/h (L/h)8.53 (4.04)
Field Drain Pipe Size O.D.in (mm)1 (25.4)

Outdoor KEY FEATURES

  • Longer Piping Lengths
    Piping flexibility up to a total piping length of 213 ft. (65 m.)
  • Low Ambient Cooling
    With built-in Low Ambient Kit or special designed PCB, outdoor fan speeds can be changed automatically based on the temperature. The unit can run cooling operation even in low ambient temperatures.


FEATURES

  • Available in 208/230V
  • Built-in basepan heater
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 62.5 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 213 ft. (65 m)
  • Cooling operating range
    • -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range
    • -22° ~ 86° F (-30° ~ 30°C)

Compatible With:

  • DLFLCA Cassette
  • DLFLDA Ducted
  • DLFLFA Console

Color: Clay


DOCUMENTSSUBMITTAL DATA SHEETPRODUCT SHEET2018 DUCTLESS CATALOGSPECIFICATIONS

DLCLRA Outdoor Unit
Heat Pump
Size36
Outdoor ModelDLCLRAH36AAK
Electrical
Voltage-Phase-CycleV-Ph-Hz208/230-1-60
MCAA30
MOCP – Fuse RatingA.50
Operating Range
Cooling Outdoor DB Min – Max° F (° C)-13°~122° (-25°~50°)
Heating Outdoor DB Min – Max° F (° C)-22°~86° (-30°~30°)
Piping
Total Piping Lengthft (m)213 (65)
Lift (OD below ID)ft (m)98 (30)
Pipe Connection Size – Liquidin (mm)3/8 (9.52)
Pipe Connection Size – Suctionin (mm)5/8 (16)
Refrigerant
TypeR410A
Chargelbs (kg)6.72 (3.05)
Outdoor
Unit Widthin (mm)37.24 (946)
Unit Heightin (mm)31.89 (810)
Unit Depthin (mm)16.14 (410)
Net Weightlbs (kg)148.59 (67.4)
AirflowCFM2,130
Sound PressuredB(A)63.0

Performance with DLFLCA Cassette

DLFLCAH36XAK
ENERGY STAR®NO
Cooling System Tons3.0
Cooling Rated CapacityBtu/h36,000
Cooling Cap. Range Min – MaxBtu/h8,500~38,000
SEER17.5
EER9.0
Heating Rated Capacity (47° F)Btu/h38,000
Heating Rated Capacity (17° F)Btu/h25,200
Heating Maximum Capacity (17° F)Btu/h25,300
Heating Cap. Range Min – MaxBtu/h9,500~50,000
HSPF10.5
COP (47° F)W/W3
COP (47° F)W/W2.46
COP (5° F)W/W1.71

Performance with DLFSDA Ducted

DLFLDAH36XAK
ENERGY STAR®NO
Cooling System Tons3.0
Cooling Rated CapacityBtu/h36,000
Cooling Cap. Range Min – MaxBtu/h8,500~38,000
SEER16.5
EER9
Heating Rated Capacity (47° F)Btu/h40,000
Heating Rated Capacity (17° F)Btu/h27,600
Heating Maximum Capacity (5° F)Btu/h25,300
Heating Cap. Range Min – MaxBtu/h9,500~50,000
HSPF11.5
COP (47° F)W/W3
COP (17° F)W/W2.46
COP (5° F)W/W1.71

Performance with DLFSFA Console

DLFLFAH36XAK
ENERGY STAR®NO
Cooling System Tons3.0
Cooling Rated CapacityBtu/h36,000
Cooling Cap. Range Min – MaxBtu/h8,500~38,000
SEER16.0
EER8
Heating Rated Capacity (47° F)Btu/h38,000
Heating Rated Capacity (17° F)Btu/h25,400
Heating Maximum Capacity (5° F)Btu/h25,300
Heating Cap. Range Min – MaxBtu/h9,500~50,000
HSPF10
COP (47° F)W/W3
COP (17° F)W/W2.46
COP (5° F)W/W1.71
