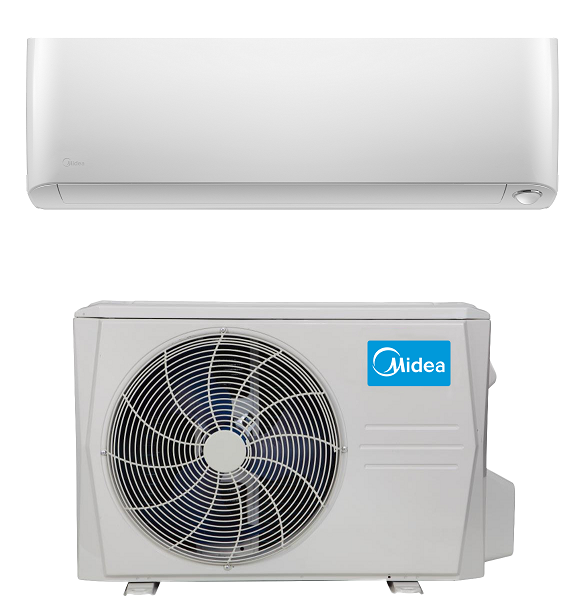

Hyper Heat Pump AC in Minisplitwarehouse.com Ductless, mini split-system have numerous potential applications in residential, commercial, and institutional buildings. Get Midea 9000 Btu 40 SEER Ductless Mini Split Hyper Heat Pump AC. Price: $1,629.99 ex. tax. Call us 877-770-3548 or visit our website.

LINK:
https://www.minisplitwarehouse.com/page/special-pricing

MAX SERIES/40 SEER/220V

*This Package Includes:

*(1) Indoor Unit : (DLFPH)AH09XAK

DLFPH Features Include:
˜Relative Humidity Sensor˜ Set the desired relative humidity in 5% increments.
˜Occupancy Sensor˜ “EYE” can send airflow twords or away from people in the room.
˜9 Modes˜ Cool, Heat, Dry, Fan, Auto, Turbo, Eco, Sleep, Heating Setback(46f)
˜Fully Modulating Fan Speeds˜Louver Control˜ UP, Down, Left & Right.
˜Follow Me˜ Uses remote control as the sensor.
˜Carbon Filter˜Gold Coated Coils˜

*(1) Outdoor Unit: (DLCPR)AH09AAK

DLCPR Features Include
˜Heats & Cools (-22F/-22F)˜Basepan Heater (Built in)˜
˜100% Heat @ 0F˜ 100% Cool @-22F˜
˜Gold Coated Coils˜7yr Compressor 5yr Parts Warranty˜
˜Refrigerant Leak Detection˜Auto Restart˜

Specifications AHRI Certificate Service Manual

Indoor KEY FEATURES

  • Relative Humidity Sensor
    Increasing comfort by setting the desired relative humidity in 5% increments in a range of 35%~85%.
  • Occupancy Sensor
    Detects activity in the room and adjusts the horizontal angle of airflow to blow away from people or follow people.


FEATURES

  • Available in 208/230V
  • Relative Humidity Sensor
  • Occupancy Sensor
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Turbo Mode
  • Fully modulating fan speeds
  • Sleep Mode
  • ECO Mode
  • Up-down / right-left louver control (fixed or swing)
  • Follow Me (senses temperature at handheld remote)
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 29 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Up to 40.0 SEER and 14.5 HSPF when paired with DLCPRA outdoor unit

Compatible With:

  • DLCPRA Outdoor Unit Single Zone
  • DLCMRA Outdoor Unit Multi-Zone


Color: WhiteDOCUMENTSSUBMITTAL DATA SHEETPRODUCT SHEET2018 DUCTLESS CATALOGSPECIFICATIONS

DLFPHA High Wall
Heat Pump
System
Size9
Indoor ModelDLFPHAH09XAK
Electrical
Voltage-Phase-CycleV-PhHz208/230-1-60
Power SupplyIndoor unit powered from outdoor unit
MCA0.3
Operating Range
Cooling Indoor DB Min – Max° F (° C)62~90 (17~32)
Heating Indoor DB Min – Max° F (° C)32~86 (0~30)
Piping
Pipe Connection Size – Liquidin (mm)1/4 (6.35)
Pipe Connection Size – Suctionin (mm)3/8 (9.52)
Indoor
Unit Widthin (mm)35.2 (895)
Unit Heightin (mm)11.7 (298)
Unit Depthin (mm)9.8 (248)
Net Weightlbs (kg)37.48 (17)
Number of Fan Speeds4
Airflow (lowest to highest)CFM144/245/295/345
Sound Pressure (lowest to highest)dB(A)29/35.5/41.5/45.6
Air Throw Dataft (m)21.98 (6.7)
Moisture RemovalPint/h (L/h)2.11 (1.0)
Field Drain Pipe Size O.D.in (mm)1 (25.4)

OUTDOOR KEY FEATURES

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for the system is up to 75% of rated capacity down to -22° F (-30° C), making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.


FEATURES

  • 100% Heating capacity at 0° F (-17° C)
  • 100% Cooling capacity at -22° F (-30° C) without additional kit
  • Up to 75% of Heating capacity at -22° F (-30° C)
  • Available in 208/230V
  • Built-in basepan heater
  • Auto-restart function
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 55 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 98 ft. (30 m.)
  • Cooling operating range
    • -22° ~ 122° F (-30° ~ 50° C)
  • Heating operating range
    • -22° ~ 86° F (-25° ~ 30° C)

Compatible With:

  • DLFPHA High Wall

Color: Clay


DOCUMENTSSUBMITTAL DATA SHEETPRODUCT SHEET2018 DUCTLESS CATALOGSPECIFICATIONS

DLCPRA Outdoor Unit
Heat Pump
Size9
Outdoor ModelDLFPRAH09AAK
Electrical
Voltage-Phase-CycleV-Ph-Hz208/230-1-60
Power SupplyIndoor unit powered from outdoor unit
MCAA13
MOCP – Fuse RatingA.15
Operating Range
Cooling Outdoor DB Min – Max° F (° C)-22°~122° (-30°~50°)
Heating Outdoor DB Min – Max° F (° C)-22°~86° (-30°~30°)
Piping
Total Piping Lengthft (m)98 (30)
Lift (OD below ID)ft (m)49 (15)
Pipe Connection Size – Liquidin (mm)1/4 (6.35)
Pipe Connection Size – Suctionin (mm)3/8 (9.52)
Refrigerant
TypeR410A
Chargelbs (kg)3.5 (1.58)
Outdoor
Unit Widthin (mm)33.27 (845)
Unit Heightin (mm)27.64 (702)
Unit Depthin (mm)14.29 (363)
Net Weightlbs (kg)107.59 (48.8)
AirflowCFM1,380
Sound PressuredB(A)55.5

Performance with DLFPHA High Wall

DLFPHAH09XAK
ENERGY STAR®YES
Cooling System Tons0.75
Cooling Rated CapacityBtu/h9,000
Cooling Cap. Range Min – MaxBtu/h5,000~17,000
SEER40.0
EER15.0
Heating Rated Capacity (47° F)Btu/h10,000
Heating Rated Capacity (17° F)Btu/h7,200
Heating Maximum Capacity (17° F)Btu/h15,690
Heating Maximum Capacity (5° F)Btu/h13,000
Heating Cap. Range Min – MaxBtu/h6,800~19,000
HSPF14.5
COP (47° F)W/W4.00
COP (17° F)W/W2.78
COP (5° F)W/W2.0
