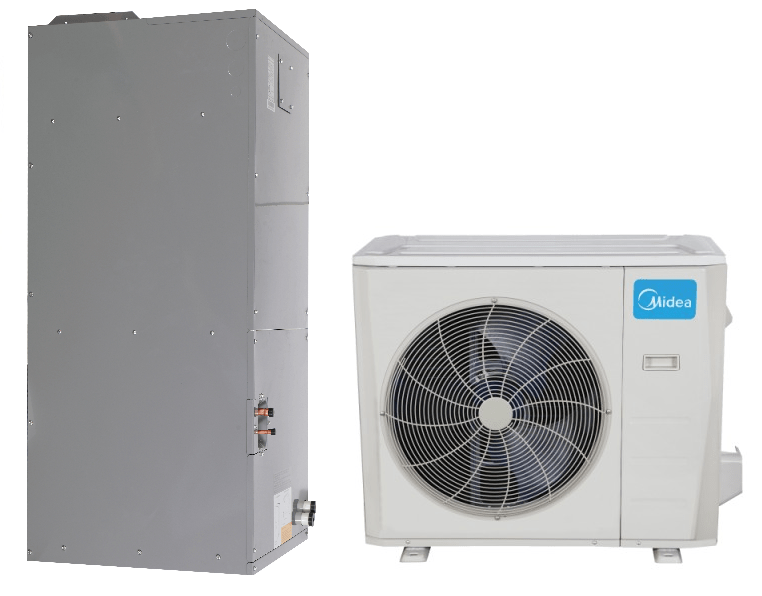

Central Ducted Split Heat Pump AC in Minisplitwarehouse.com There are many great types of air conditioners available. Get Midea 24000 Btu 20 SEER Central Ducted Split Heat Pump AC. Price: $2,119.99 ex. tax. Call us 877-770-3548 or visit our website.

LINK:
https://www.minisplitwarehouse.com/category/midea/2

KEY FEATURES

  • Installation Flexibility
    A built-in secondary drain allows the unit to be mounted vertically (up flow or down flow) or horizontally (left or right), enabling multi-position installation. All three sizes are capable of operating as traditional central ducted systems when paired with a compatible single zone outdoor unit.
  • Multi-Zone Compatibility
    The size 24 Air Handler can connect to select multizone outdoor units to create one integrated system, enabling unique zoned comfort and efficiency.
  • Efficient Comfort
    As an alternate to gas furnaces, reduce the use of fossil fuels and experience cleaner energy and efficiency levels that meet many local and federal requirements.
  • CONTROLS: Factory installed 24V interface for third-party thermostat compatibility* (*Wireless Remote included, **Wired thermostat not included)
  • Indoor copper connections require brazing, while outdoor connections are standard hvac flared.
  • ACCESSORIES: Electric Heat Packages EHKMA05KN, EHKMA10KN, HKMA15KN, EHKMA20KN (*Optional, Requires Separate 208-230V Power)

    FEATURES
  • Modes: Cool, Heat, Dry, Fan, Auto
  • 2 Ton: 20.0 SEER/ 12.5 EER/ 10.4 HSPF/ COP: 47F (3.48), 17F (2.3), 5F (2.1)
  • Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
  • Total system static pressure up to 0.8 in. W.C
  • Less than 2% air leakage
  • Quiet indoor operation
  • Anti-corrosive fin coating
  • Extreme heating operation in as low as -22° F (-30° C) based on outdoor unit pairing
  • Optional Electric Heat Packages available (5, 10 KW)
  • Built-in third-party thermostat compatibility (Single Stage):

Compatible With:

  • DLCSR(A/B) Outdoor Unit Single Zone
  • DLCMR Outdoor Unit Multi-Zone

DOCUMENTS SPECIFICATIONS

_________________________________________________________________________________









*(1) Outdoor Unit

KEY FEATURES

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -22° F (-30° C), making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.


FEATURES

  • 100% heating capacity at 5° F (-15° C) sizes 12-18 (208/230V)
  • Available in 208/230V
  • Built-in basepan heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 54.6 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 82 ~ 164 ft. (25 ~ 50 m.)
  • Cooling operating range
    • -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range
    • Sizes 9-24 (208/230V)
      -22° ~ 86° F (-30° ~ 30°C)
    • Sizes 30, 36 (208/230V)
      -13° ~ 86° F (-25° ~ 30° C)

Compatible With:

  • DLFSH High Wall
  • DLFSC Cassette
  • DLFSD Ducted
  • DLFSF Console
  • DLFSA Central Ducted
