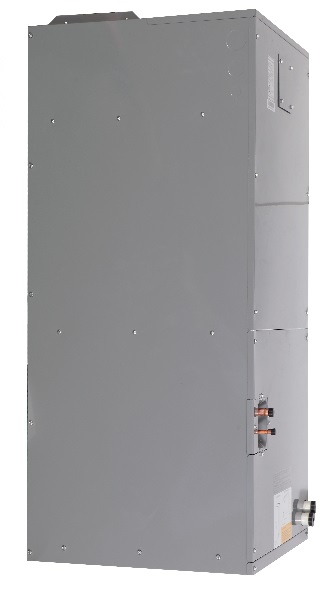

Ducted Indoor Unit in Minisplitwarehouse.com Choose from more than 200 products that suits your needs exactly! We can help you find exactly what you’re looking for. Shop 24000 Btu DLFSA Ducted Indoor Unit. Price: $1,199.99 ex. tax. Call us 877-770-3548 or visit our website.

LINK:
https://www.minisplitwarehouse.com/page/special-pricing

KEY FEATURES

  • Installation Flexibility
    A built-in secondary drain allows the unit to be mounted vertically (up flow or down flow) or horizontally (left or right), enabling multi-position installation. All three sizes are capable of operating as traditional central ducted systems when paired with a compatible single zone outdoor unit.
  • Multi-Zone Compatibility
    The size 24 Air Handler can connect to select multizone outdoor units to create one integrated system, enabling unique zoned comfort and efficiency.
  • Efficient Comfort
    As an alternate to gas furnaces, reduce the use of fossil fuels and experience cleaner energy and efficiency levels that meet many local and federal requirements.
  • CONTROLS: Factory installed 24V interface for third-party thermostat compatibility* (*Wireless Remote included, **Wired thermostat not included)
  • Indoor copper connections require brazing, while outdoor connections are standard hvac flared.
  • ACCESSORIES: Electric Heat Packages EHKMA05KN, EHKMA10KN, HKMA15KN, EHKMA20KN (*Optional, Requires Separate 208-230V Power)

    FEATURES
  • Modes: Cool, Heat, Dry, Fan, Auto
  • 2 Ton: 20.0 SEER/ 12.5 EER/ 10.4 HSPF/ COP: 47F (3.48), 17F (2.3), 5F (2.1)
  • Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
  • Total system static pressure up to 0.8 in. W.C
  • Less than 2% air leakage
  • Quiet indoor operation
  • Anti-corrosive fin coating
  • Extreme heating operation in as low as -22° F (-30° C) based on outdoor unit pairing
  • Optional Electric Heat Packages available (5, 10, 15 and 20 KW)
  • Built-in third-party thermostat compatibility (Single Stage): Not Included.

Compatible With:

  • DLCSR(A/B) Outdoor Unit Single Zone
  • DLCMR Outdoor Unit Multi-Zone
