Central Ducted Hyper Heat Pump in Minisplitwarehouse.com Welcome to Minisplitwarehouse.com the best way to find mini split systems deals. Get Midea 48000 Btu 16 SEER Central Ducted Split Hyper Heat Pump AC. Price: $3,449.99 ex. tax. Call us 877-770-3548 or visit our website.

LINK:
https://www.minisplitwarehouse.com/category/slim-ducted

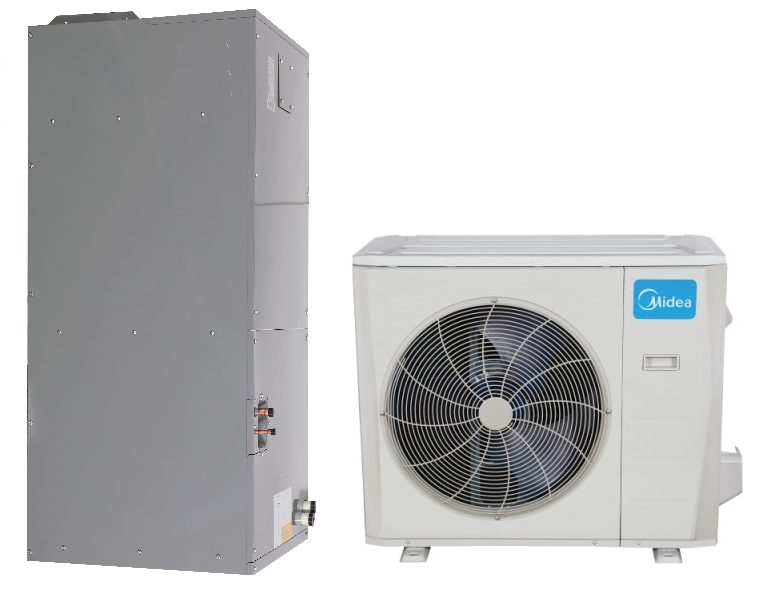

*New Midea Central Hyper Heat Pump AC System



Included in Package:
*(1) One Indoor Air Handler with Wireless Remote
*(1) One Hyper Heat Pump Outdoor Unit (-22F/-13F)


Copper Lines & Wires Not Included
Please see the drop down boxes above to add copper lines & wires.
Requires 2 Sets of wires, 1-(set) for Power Indoor to Outdoor & 1-(set 16AWG) For Signal
(Copper Line & Wire option above includes power wire, you will still need the 16AWG signal wire)


INDOOR KEY FEATURES

  • Installation Flexibility
    A built-in secondary drain allows the unit to be mounted vertically (up flow or down flow) or horizontally (left or right), enabling multi-position installation. All three sizes are capable of operating as traditional central ducted systems when paired with a compatible single zone outdoor unit.
  • Efficient Comfort
    As an alternate to gas furnaces, reduce the use of fossil fuels and experience cleaner energy and efficiency levels that meet many local and federal requirements.
  • CONTROLS: Factory installed 24V interface for third-party thermostat compatibility* (*Wired thermostat not included)
  • Indoor copper connections require brazing, while outdoor connections are standard hvac flared.
  • ACCESSORIES: Electric Heat Packages EHKMA05KN, EHKMA10KN, HKMA15KN, EHKMA20KN (*Optional & Requires Separate 208-230V Power)

    FEATURES
  • Modes: Cool, Heat, Dry, Fan, Auto
  • 4 Ton: 16 SEER/8.2 EER/9.5 HSPF/ COP: 47F (2.6), 17F (2.3), 5F (2.08)
  • Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
  • Total system static pressure up to 0.8 in. W.C
  • Less than 2% air leakage
  • Quiet indoor operation
  • Anti-corrosive fin coating
  • Extreme heating operation in as low as -22° F (-30° C)
  • Optional Electric Heat Packages available (5, 10 KW)
  • Built-in third-party thermostat compatibility (Single Stage)

DOCUMENTS SPECIFICATIONS

_________________________________________________________________________________



OUTDOOR KEY FEATURES

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -22° F (-30° C), making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.


FEATURES

  • Built-in basepan heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 61.7 dB(A)
  • Aluminum Hydrophilic pre-coated fins
  • Max Piping length 213′
  • Cooling operating range
    • -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range
    • -22° ~ 86° F (-30° ~ 30°C)

Color: Clay


DOCUMENTS SPECIFICATIONS
