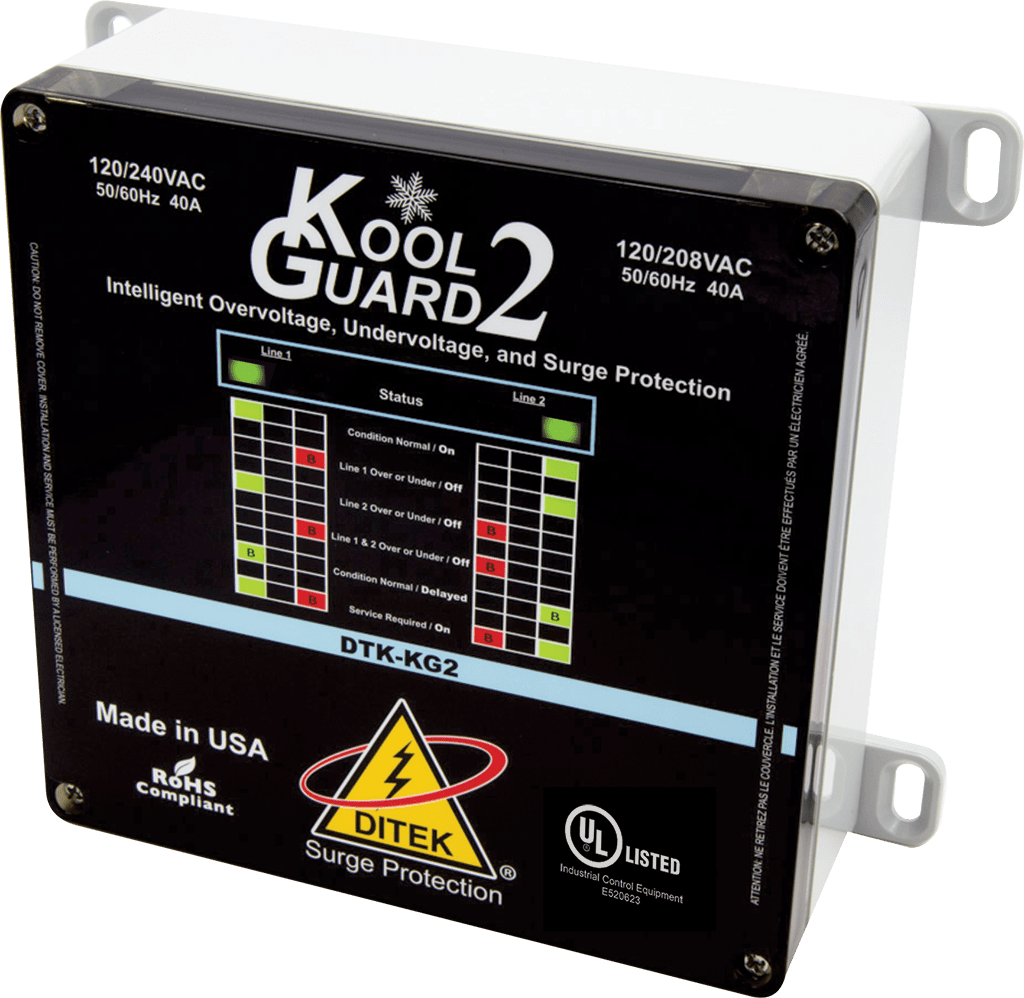

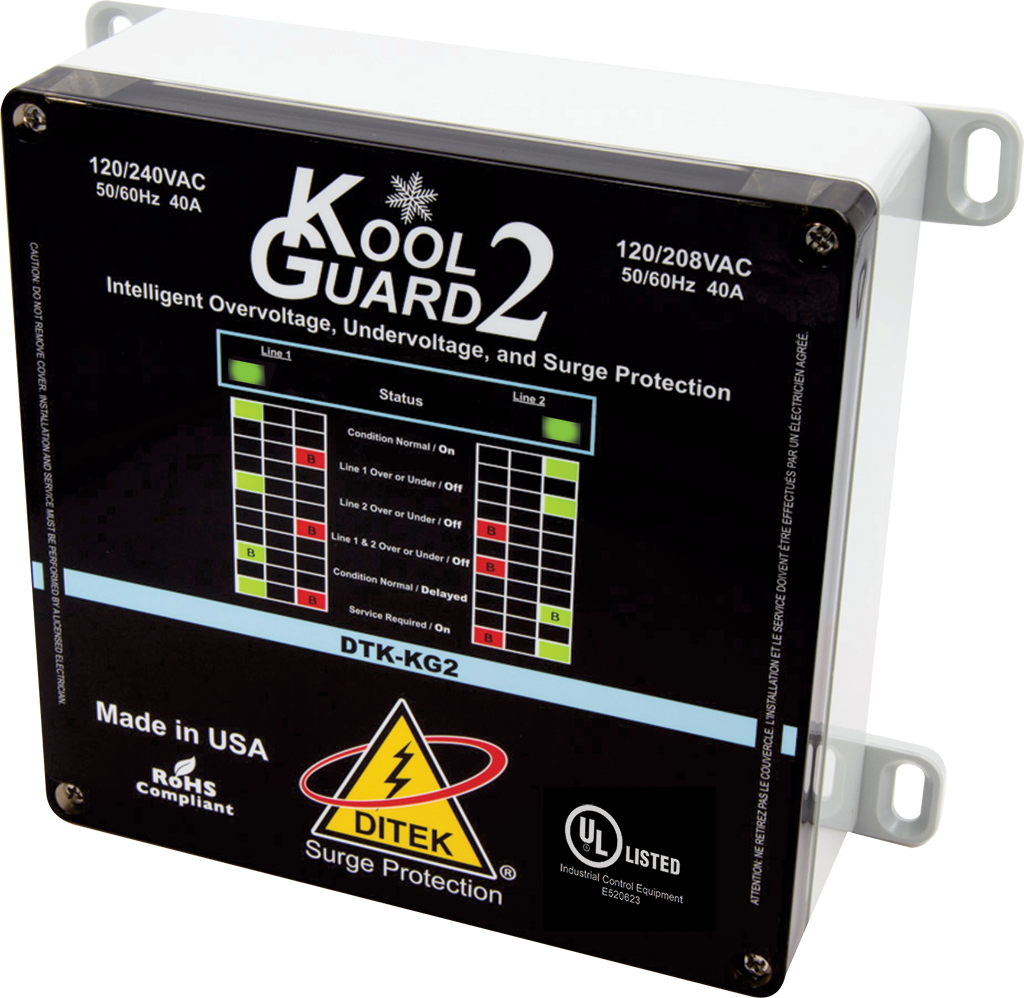

DITEK’s DTK-KG2 is part of the Kool Guard family of voltage monitoring products. It is specifically designed to protect HVAC equipment from harmful undervoltage and overvoltage events that can damage sensitive electronics and mechanical components within the system. The DTK-KG2 also incorporates DITEK’s state-of-the-art surge protection design to shield the equipment from damaging transient voltage surges and spikes. The standard UL Type 4X polycarbonate enclosure allows the unit to be easily installed in harsh outdoor environments.

  • Protection for undervoltage & overvoltage events on 120/240VAC or 120/208VAC split phase circuits up to 40A
  • Auto-calibration feature eliminates the need to manually calibrate the unit to the specific input voltage
  • Safely disconnects power to the system for 3 minutes allowing input voltage to return to normal range
  • Ideal protection for inverter-driven compressor systems and mini-splits
  • Diagnostic red and green LEDs indicate exactly what voltage condition is present
  • Surge protection components included to divert harmful transient voltages away from the equipment
  • Accepts either 1/2″ or 3/4″ NPT flexible conduit
  • UL Listed
  • 10yr Warranty

The average home or business can experience hundreds of potentially damaging electrical events each year, and today’s Heating, Ventilation and Air Conditioning (HVAC) equipment is even more susceptible to these unavoidable events. Power fl uctuations, surges and voltage transients can severely damage your heating and cooling system just like any other sensitive electronic device. While a brief power fluctuation may not cause any obvious signs of damage, input voltage that is continuously outside of the operating range of the equipment can quickly damage sensitive electronic circuitry. This is especially important with inverter-based compressor systems and ductless AC systems (mini splits). DITEK’s DTK-KG2 is part of the Kool Guard Series of intelligent voltage monitoring solutions and is specifi cally designed to monitor the input power supplying the equipment. If the voltage fluctuates outside of the preprogrammed under- and over-voltage limits, it safely disconnects power to the equipment until voltage returns within the normal range. The DTK-KG2 also incorporates state-of-the-art surge protection to shield the equipment from damaging surges and spikes; and the standard UL Type 4X polycarbonate enclosure allows the unit to be easily installed in harsh outdoor environments.

Product Features
√  Protection for under-voltage & over-voltage events
√  Safely disconnects power to the system for 3 minutes allowing input voltage to return to normal range
√  Diagnostic red and green LEDs indicate exactly what voltage condition is present
√  Surge protection components included to divert harmful transient voltages away from the equipment

Applications
√ Ductless AC Systems (Mini-splits)
√  Inverter-type Compressor Systems
√  Split Systems

Brochure
Cut Sheet
Installation Guide
