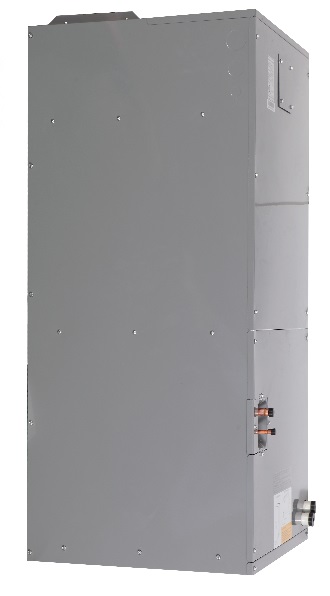

Ducted Indoor Unit in Minisplitwarehouse.com Ducted Systems. If you’re looking for whole of home comfort, ducted air conditioning is a great solution. Get 24000 Btu DLFSA Ducted Indoor Unit. Price: $1,389.99 ex. tax. Call us 877-770-3548 or visit our website.




  • Installation Flexibility
    A built-in secondary drain allows the unit to be mounted vertically (up flow or down flow) or horizontally (left or right), enabling multi-position installation. All three sizes are capable of operating as traditional central ducted systems when paired with a compatible single zone outdoor unit.
  • Multi-Zone Compatibility
    The size 24 Air Handler can connect to select multizone outdoor units to create one integrated system, enabling unique zoned comfort and efficiency.
  • Efficient Comfort
    As an alternate to gas furnaces, reduce the use of fossil fuels and experience cleaner energy and efficiency levels that meet many local and federal requirements.
  • CONTROLS: Factory installed 24V interface for third-party thermostat compatibility* (*Wireless Remote included, **Wired thermostat not included)
  • Indoor copper connections require brazing, while outdoor connections are standard hvac flared.
  • ACCESSORIES: Electric Heat Packages EHKMA05KN, EHKMA10KN, HKMA15KN, EHKMA20KN (*Optional, Requires Separate 208-230V Power)

  • Modes: Cool, Heat, Dry, Fan, Auto
  • 2 Ton: 20.0 SEER/ 12.5 EER/ 10.4 HSPF/ COP: 47F (3.48), 17F (2.3), 5F (2.1)
  • Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
  • Total system static pressure up to 0.8 in. W.C
  • Less than 2% air leakage
  • Quiet indoor operation
  • Anti-corrosive fin coating
  • Extreme heating operation in as low as -22° F (-30° C) based on outdoor unit pairing
  • Optional Electric Heat Packages available (5, 10, 15 and 20 KW)
  • Built-in third-party thermostat compatibility (Single Stage): Not Included.

Compatible With:

  • DLCSR(A/B) Outdoor Unit Single Zone
  • DLCMR Outdoor Unit Multi-Zone
