Low Pressure Switch in Minisplitwarehouse.com Best accessories to buy for your air conditioners. Get Low Pressure Switch for AirCon A16CM4H4R39. Price: $64.99 ex. tax. Call us 877-770-3548 or visit our website.
(1) OEM Low pressure switch for AirCon Model# A16CM4H4R39
Please note, images are for illustrative purposes only and may not represent the actual look, size, color, etc of the item you will receive which is a brand new OEM part shipped directly from the manufacturer.

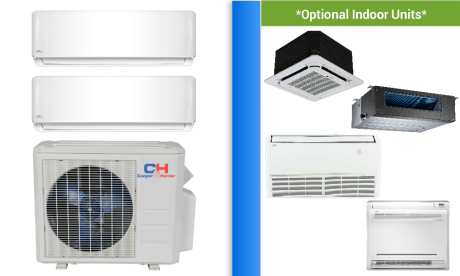

C&H Multi-Zone 2 Rooms in Minisplitwarehouse.com Our multi zone ductless experts are here to help you purchase a system at the best price possible. Get C&H 2 Zone 21.3 SEER Ductless Mini Split Heat Pump Air Conditioner. Price: $1,599.99 ex. tax. Call us 877-770-3548 or visit our website.
*(2) Indoor Wall Mounts with Upgrade Options
Wall Mount Features Include:
˜Follow Me˜
*(1) Outdoor Unit: Heats & Cools (-13F)˜
Compressor Specifications
Features Include:
˜Ultra Green Coated Coils˜
7yr Compressor/ 5yr Parts Warranty˜
˜Refrigerant Leak Detection˜Auto Restart˜
(Toshiba GMCC Compressor Inside)
Cooper & Hunter air conditioners are applicable for every residential use, from individual office spaces to multi room properties. You can choose among single and multi zone ductless mini splits or air conditioners without outdoor condenser – Monoblock, Portable or PTAC units. Wide range of residential HVAC equipment will satisfy your needs either for cooling or heating, with the most advanced features, different capacities and energy ratings you want.

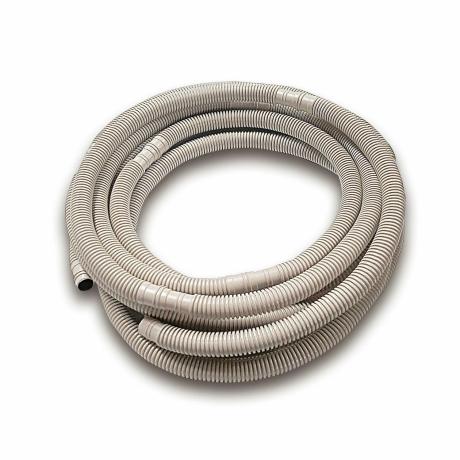

Drain Line in Minisplitwarehouse.com Choose from more than 200 products that suits your needs exactly! Get Drain Line For Mini Split Wall Mount Indoor Units. Price: $16.49 ex. tax. Call us 877-770-3548 or visit our website.
Specially designed for mini split systems, this condensate drain tube is a flexible drain hose made from LLPDE 2181 Series UV Resistance 783 material and features a large, 5/8″ inner diameter for condensate to be diverted away from your system and out of your building. It is sized for condensate removal from your indoor wall mount unit.

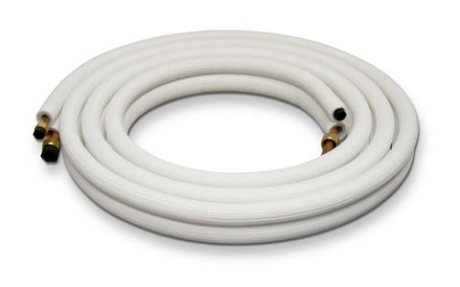

Copper Line Set in Minisplitwarehouse.com Choose from more than 100 products that suits your needs exactly! Get Copper Line Set for Ductless Systems. Price: $139.99 ex. tax. Call us 877-770-3548 or visit our website.
CLI provides a variety of solutions for Air Conditioning and Refrigeration needs.
Line-sets are copper tubing lines used to connect split system air conditioners and heat pumps. The two copper lines (liquid line and suction line) in the set are refrigerant lines that connect the condensing unit (air conditioner-outside) to the evaporator coil (e-coil) in the furnace unit.
The line-set tubes are Pre-Flared & Pre-Insulated using ACR Tube or a Level Wound Coil (LWC).
All CLI Air Conditioning and Refrigeration Tubes are produced with lubricants tested for R410A compatibility and formicary corrosion tested.
Pre-Flared & Pre-Insulated Line-Set: Line-sets are provided with a pre-insulated suction line paired with a bare liquid line in a convenient package. Line-sets have come into wide use in most areas of the country because they offer a better way to field connect split system air conditioners and heat pumps.
Major advantages include:
CLI provides a variety of solutions for Air Conditioning and Refrigeration needs.
Line-sets are copper tubing lines used to connect split system air conditioners and heat pumps.
The two copper lines (liquid line and suction line) in the set are refrigerant lines that connect the condensing unit (air conditioner-outside) to the evaporator coil (e-coil) on the indoor unit.
The line-set tubes are Pre-Flared & Pre-Insulated using ACR Tube or a Level Wound Coil (LWC).
All CLI Air Conditioning and Refrigeration Tubes are produced with lubricants tested for R410A compatibility and formicary corrosion tested.
ACR Tube : Liquid line and suction line can be field constructed and insulated using our superior clean and plugged ACR tube.
This is typically for applications where a rigid straight tube provides the best solution for installation, such as commercial refrigeration applications.
LWC : CLI seamless smooth wall level wound copper tube is produced from a cathode based cast & roll process. A Level Wound Coil (LWC) is a long length of tube that is uniformly and tightly spooled in layers parallel to the axis of the coil. LWCs that require annealing are produced in our ultra clean annealing furnace which yields superior ID cleanliness. LWCs are used for a wide variety of applications in many industries.

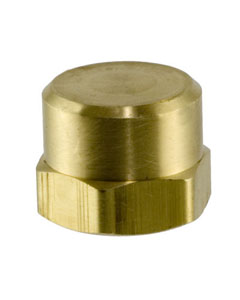

Service Port Cap in Minisplitwarehouse.comExperts are here to help you purchase at the best price. Get Service Port Cap for Mini Split Systems. Price: $19.99 ex. tax. Call us 877-770-3548 or visit our website.
Wholesale Lots in Minisplitwarehouse.com Our techs will make sure you get exactly what you need. Get 10 Master Cartons of Install Kits for Ductless Systems Wholesale Lot. Price: $6,360.00 ex. tax. Call us 877-770-3548 or visit our website.
ATTN: Wholesale Lots over $4k Cannot be Processed on a Credit Card. Please Contact Our Sales Department or Choose Check/Wire at Checkout and receive an additional discount.
CLI provides a variety of solutions for Air Conditioning and Refrigeration needs.
Line-sets are copper tubing lines used to connect split system air conditioners and heat pumps. The two copper lines (liquid line and suction line) in the set are refrigerant lines that connect the condensing unit (air conditioner-outside) to the evaporator coil (e-coil) in the furnace unit.
The line-set tubes are Pre-Flared & Pre-Insulated using ACR Tube or a Level Wound Coil (LWC).
All CLI Air Conditioning and Refrigeration Tubes are produced with lubricants tested for R410A compatibility and formicary corrosion tested.
Pre-Flared & Pre-Insulated Line-Set: Line-sets are provided with a pre-insulated suction line paired with a bare liquid line in a convenient package. Line-sets have come into wide use in most areas of the country because they offer a better way to field connect split system air conditioners and heat pumps.
Major advantages include:
CLI provides a variety of solutions for Air Conditioning and Refrigeration needs.
Line-sets are copper tubing lines used to connect split system air conditioners and heat pumps.
The two copper lines (liquid line and suction line) in the set are refrigerant lines that connect the condensing unit (air conditioner-outside) to the evaporator coil (e-coil) on the indoor unit.
The line-set tubes are Pre-Flared & Pre-Insulated using ACR Tube or a Level Wound Coil (LWC).
All CLI Air Conditioning and Refrigeration Tubes are produced with lubricants tested for R410A compatibility and formicary corrosion tested.
ACR Tube : Liquid line and suction line can be field constructed and insulated using our superior clean and plugged ACR tube.
This is typically for applications where a rigid straight tube provides the best solution for installation, such as commercial refrigeration applications.
LWC : CLI seamless smooth wall level wound copper tube is produced from a cathode based cast & roll process. A Level Wound Coil (LWC) is a long length of tube that is uniformly and tightly spooled in layers parallel to the axis of the coil. LWCs that require annealing are produced in our ultra clean annealing furnace which yields superior ID cleanliness. LWCs are used for a wide variety of applications in many industries.

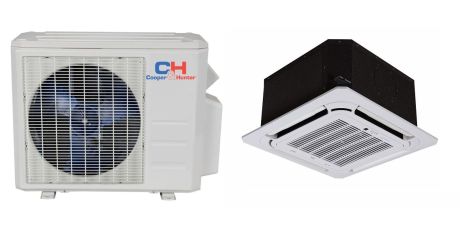

Cassette Heat Pump in Minisplitwarehouse.com Browse our energy-efficient air conditioners. Get C&H 9000 BTU 22.8 SEER Ductless Mini Split Heat Pump Air Conditioner. Price: $1,078.99 ex. tax. Call us 877-770-3548 or visit our website.
*(1) Outdoor Unit: Heats & Cools (-13F)˜
Features Include:
˜Ultra Green Coated Coils˜
7yr Compressor 5yr Parts Warranty˜
˜Refrigerant Leak Detection˜Auto Restart˜
(Toshiba GMCC Compressor Inside)
AirCon 2×18000 Btu in Minisplitwarehouse.com Experts are here to help you purchase a Multi Zone Mini Split System at the best price. Get AirCon 2×18000 Btu 21 SEER Ductless Mini Split Heat Pump AC. Price: $2,469.99 ex. tax. Call us 877-770-3548 or visit our website.
*The following items are included :
*You Can UPGRADE your Indoor units, to different types:
Ceiling Cassette’s, Slim Ducted, Floor & Ceiling Mounts.
*The Indoor Options Below come with both a remote control and wall thermostat (only one can be used)*
Inverter Technology
» Uses an advanced control method that allows power to adjust in wide ranges, therefore saving you money.
Heating Capability
» Our multi splits are heat pumps, which allows for both heating and cooling.
Mix and Match

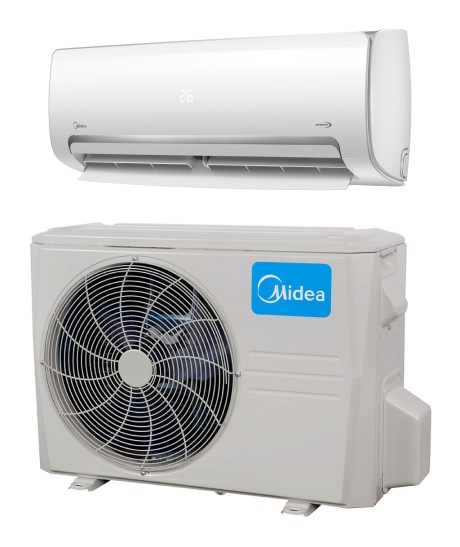

Midea 12000 Btu 110v 20 SEER in Minisplitwarehouse.com There’s nothing better than air conditioning on a hot day. When buying an air conditioner, look for a model with a high efficiency. Get Midea 12000 Btu 110v 20 SEER Ductless Mini Split Hyper Heat Pump AC. Price: $1,139.99 ex. tax. Call us 877-770-3548.
*(1) Outdoor Unit: (DLCSR)
Cut Sheet/Specification
DLCSR Features Include:
˜Heats & Cools (-13F/-13F)˜˜Basepan Heater (Built in)˜
˜Gold Coated Coils˜ ˜Refrigerant Leak Detection˜
˜Auto Restart˜
(Click For More Info/Specs):
 |
DLFSH Wall Mount Specifications |
Compatible With:
Color: Clay
DOCUMENTS
SPECIFICATIONS
| DLCSRA Outdoor Unit | ||
| Heat Pump | ||
| Size | 12 | |
| Outdoor Model | DLCSRAH12AAJ | |
| Electrical | ||
| Voltage-Phase-Cycle | V-Ph-Hz | 110v-1-60 |
| Power Supply | Indoor unit powered from outdoor unit | |
| MCA | A | 15 |
| MOCP – Fuse Rating | A. | 20 |
| Operating Range | ||
| Cooling Outdoor DB Min – Max | ° F (° C) | -13°~122° (-25°~50°) |
| Heating Outdoor DB Min – Max | ° F (° C) | -13°~86° (-25°~30°) |
| Piping | ||
| Total Piping Length | ft (m) | 82 (25) |
| Lift (OD below ID) | ft (m) | 32 (10) |
| Pipe Connection Size – Liquid | in (mm) | 1/4 (6.35) |
| Pipe Connection Size – Suction | in (mm) | 1/2 (12.7) |
| Refrigerant | ||
| Type | R410A | |
| Charge | lbs (kg) | 2.64 (1.15) |
| Outdoor | ||
| Unit Width | in (mm) | 31.5 (800) |
| Unit Height | in (mm) | 21.81 (554) |
| Unit Depth | in (mm) | 13.11 (333) |
| Net Weight | lbs (kg) | 80.7 (36.6) |
| Airflow | CFM | 1,177 |
| Sound Pressure | dB(A) | 54.7 |
Performance with DLFSHA High Wall
| DLFSHAH12XAJ |  |
|
| ENERGY STAR® | YES | |
| Cooling System Tons | 1.0 | |
| Cooling Rated Capacity | Btu/h | 12,000 |
| Cooling Cap. Range Min – Max | Btu/h | 3,500~12,200 |
| SEER | 20.4 | |
| EER | 12.5 | |
| Heating Rated Capacity (47° F) | Btu/h | 11,800 |
| Heating Rated Capacity (17° F) | Btu/h | 7,200 |
| Heating Maximum Capacity (17° F) | Btu/h | 8,000 |
| Heating Maximum Capacity (5° F) | Btu/h | 7,800 |
| Heating Cap. Range Min – Max | Btu/h | 1,400~12,400 |
| HSPF | 11.0 | |
| COP (47° F) | W/W | 3.20 |
| COP (17° F) | W/W | 2.60 |
| COP (5° F) | W/W | 1.97 |
Compatible With:
Color: White
DOCUMENTS
SPECIFICATIONS
| DLFSHA High Wall | |||
| Heat Pump | |||
| System | |||
| Size | 12 | ||
| Indoor Model | DLFSHAH12XAJ | ||
| Electrical | |||
| Voltage-Phase-Cycle | V-PhHz | 115-1-60 | |
| Power Supply | Indoor unit powered from outdoor unit | ||
| MCA | 0.2 | ||
| Operating Range | |||
| Cooling Indoor DB Min – Max | ° F (° C) | 62~90 (17~32) | |
| Heating Indoor DB Min – Max | ° F (° C) | 32~86 (0~30) | |
| Piping | |||
| Pipe Connection Size – Liquid | in (mm) | 1/4 (6.35) | |
| Pipe Connection Size – Suction | in (mm) | 1/2 (12.7) | |
| Indoor | |||
| Unit Width | in (mm) | 31.89 (810) | |
| Unit Height | in (mm) | 11.81 (300) | |
| Unit Depth | in (mm) | 7.87 (200) | |
| Net Weight | lbs (kg) | 18.7 (8.5) | |
| Number of Fan Speeds | 4 | ||
| Airflow (lowest to highest) | CFM | 159/254/295/324 | |
| Sound Pressure (lowest to highest) | dB(A) | 25.3/32.6/39.1 | |
| Air Throw Data | ft (m) | 22.93 (6.99) | |
| Moisture Removal | Pint/h (L/h) | 3.3 (1.56) | |
| Field Drain Pipe Size O.D. | in (mm) | 0.625 (16) | |

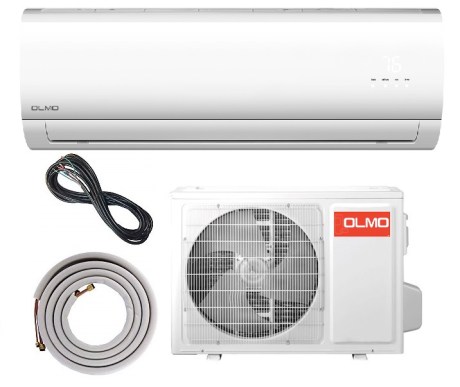

Single-Zone 1 Ton (400-600 Sq Feet) in Minisplitwarehouse.com Stay cool & comfortable with air conditioners that give you the power to maintain the ideal temperature all year long. Get OLMO 12000 BTU 16 SEER Ductless Mini Split Heat Pump Air Conditioner. Price; $659.99 ex. tax. Call us 877-770-3548 or visit our website.
*FREE Factory Warranty UPGRADE:
7 Year Compressor / 5 Year Parts
The All New Alpic Series
by
Features
|
|
Specifications Download Manuals
