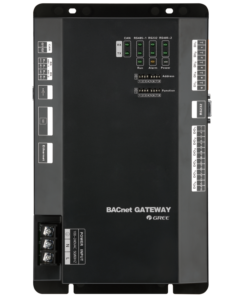

Strong Points: Provide standard BACnet/IP protocol interface, open the table of protocol point. Adopt HTML5 technology, adapt to different environment. With ETL and CE certification.
PRICE: $639.99 ex. tax
Functional Features
Large network capacity
Group control function
Long distance monitor
Easy control
I/O expansion
Strong Points
Provide standard BACnet/IP protocol interface, open the table of protocol point.
Adopt HTML5 technology, adapt to different environment.
What’s Included: Model: Copper Line Set Brand: Misc Product Condition: New
PRICE: $99.99 ex. tax

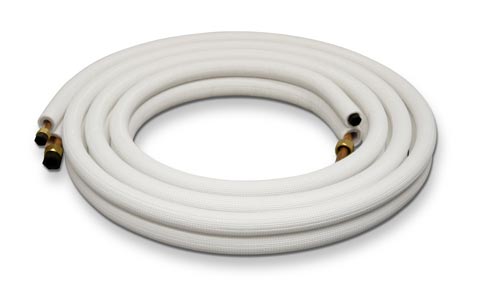

Air Conditioning and Refrigeration Tube
Line-sets are copper tubing lines used to connect split system air conditioners and heat pumps. The two copper lines (liquid line and suction line) in the set are refrigerant lines that connect the condensing unit (air conditioner-outside) to the evaporator coil (e-coil) in the furnace unit. The line-set tubes are Pre-Flared & Pre-Insulated using ACR Tube or a Level Wound Coil (LWC).
*See related items below.
Pre-Flared & Pre-Insulated Line-Set: Line-sets are provided with a pre-insulated suction line paired with a bare liquid line in a convenient package. Line-sets have come into wide use in most areas of the country because they offer a better way to field connect split system air conditioners and heat pumps.
Major advantages include:
Installation is quick, efficient, and economical.
The continuous, factory-applied insulation has no seams which can open to allow moisture entry, bothersome dripping and decreased system efficiency.
Tubes can be supplied in custom lengths for each job, reducing waste.
Factory assembly assures quality and consistency.
All Air Conditioning and Refrigeration Tubes are produced with lubricants tested for all freon compatibility and formicary corrosion tested.
ACR Tube : Liquid line and suction line can be field constructed and insulated using our superior clean and plugged ACR tube.
This is typically for applications where a rigid straight tube provides the best solution for installation, such as commercial refrigeration applications.
LWC : Seamless smooth wall level wound copper tube is produced from a cathode based cast & roll process. A Level Wound Coil (LWC) is a long length of tube that is uniformly and tightly spooled in layers parallel to the axis of the coil. LWCs that require annealing are produced in our ultra clean annealing furnace which yields superior ID cleanliness. LWCs are used for a wide variety of applications in many industries.

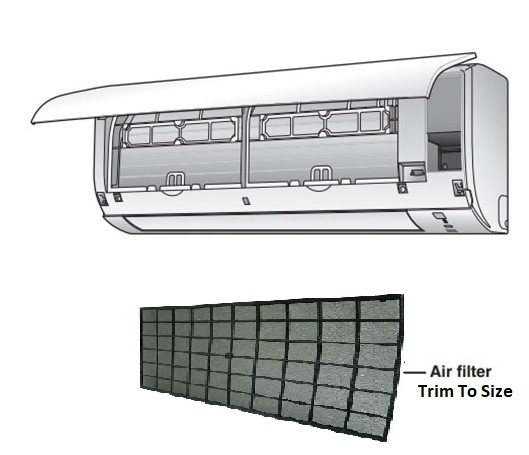

Get Universal Filter For Mini Split Systems (Trim To Size).
What’s Included:
Universal Replacement Filter for Mini Split Systems – Trim To Size. Can be used for wall mounts, ceiling cassettes, ducted, floor console or floor ceiling models.
PRICE: $49.99 ex. tax
Universal Replacement Filter for Mini Split Systems – Trim To Size. Can be used for wall mounts, ceiling cassettes, ducted, floor console or floor ceiling models. If you are having trouble finding the OEM replacement filter, this universal trim to size filter may be the best option for you. Just use your old filter as a template (or make a template out of cardboard), then cut out the size from your universal new filter (14.75″ x 23.5″). Make sure to use existing edges to reduce cuts. Some customers are able to get 2 filters out of the one 14.75 x 23.5 Filter (some may not).
The frame is 1/4″ thick, which is specially designed for mini split systems. Please make sure when cutting to be careful and have this done by someone who is handy as it requires a bit of elbow grease. Miss-cuts can result in un-usable filters (which cannot be returned).
Sample Pictures Below:
Grid size, and thickness of frame.
Old filter on top of new filter (example for sizing)
Old filter on top of new filter (example for sizing)
Old filter on top of new filter (example for sizing)
Successful install example on one side, fits nice. Now the other side…

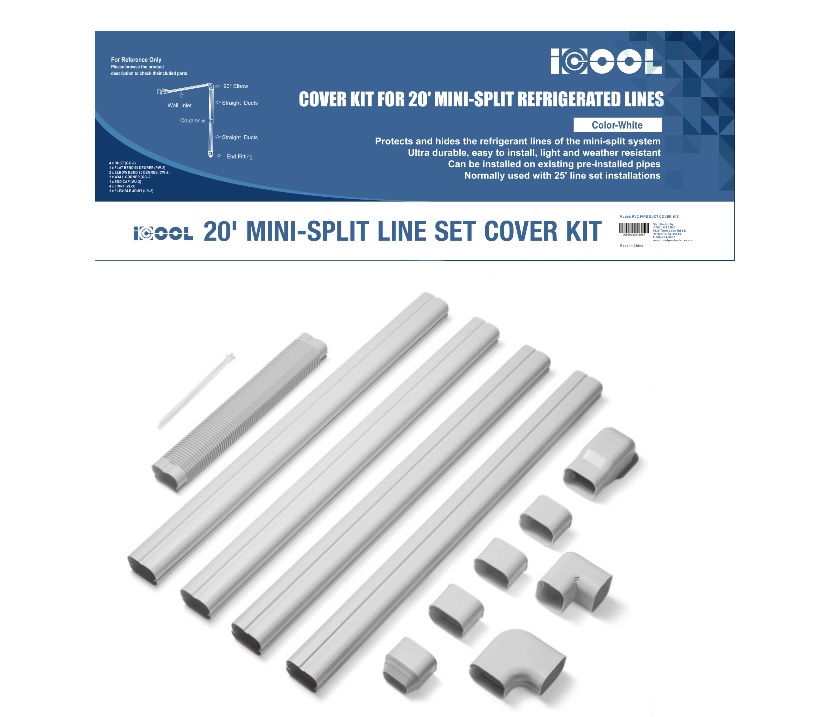

Get 3” PVC Line Cover (Extendable) for Mini Split Systems.
What’s Included:

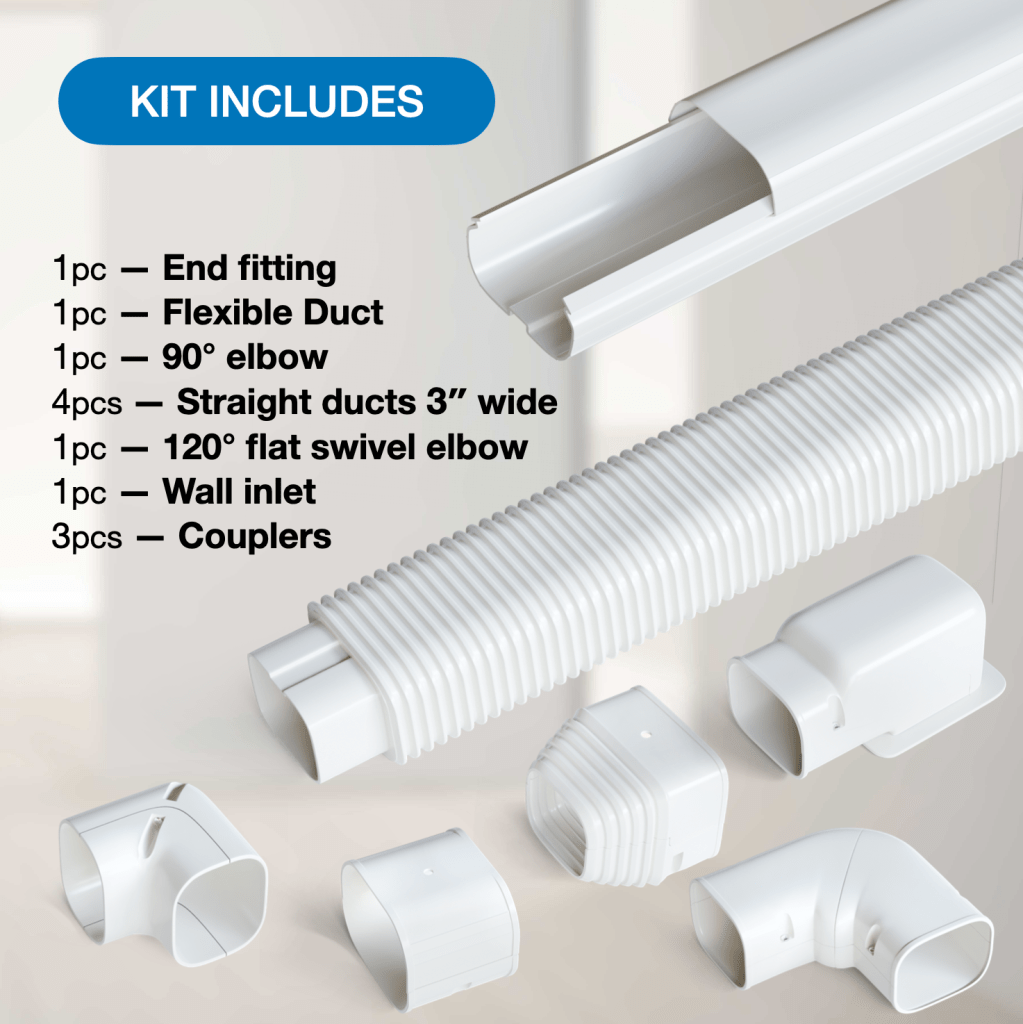

4 x Straight Duct (39.4”) 1 x Flexible Duct (19.7”) (used to connect straight ducts, or as 45/90 degree bends, or as outside/inside corners, or to the outdoor unit) 3 x Coupling (connects Straight Pcs) 1 x 90° Elbow (outside Corner) 1 x 90° Flat Elbow 1 x Wall Entry Cap 1 x End Cap
PRICE: $89.99 ex. tax
Protect and Hide Mini-Split System Refrigerant Lines
Ultra-Durable, Easy To Install, Lightweight and Weatherproof.
Can be Installed Over Existing Pre-Installed Pipes.
Typically used with up to 20′ Line Set installations (add on for longer runs)
Color (white): Paintable
NEAT APPEARANCE: Our extendable 3” line set cover keeps your pipes and cords organized while providing protection that extends the lifespan of your AC unit by reducing maintenance.
*See related items below for other options.
UNIVERSAL APPLICATION: Doesn’t matter which brand system you use, this 3-inch wide tubing is adaptable for most ductless mini split and central air conditioning units up to 36,000 BTUs.
LONG-LASTING: Weather-resistant and safe for temps of -40℉ to 140℉, this PVC lineset-cover will protect your AC lines for years to come without fading, cracking, or deforming.
EASY INSTALLATION: After screwing the bottom of the cover to the wall, the top cover can be quickly snapped on. All parts can be trimmed according to the specific length of your lines or cables.
CUSTOMIZABLE: This line cover set can be painted to match the exterior wall color to provide a seamless appearance on your building exterior. No more ugly cables hanging around or line covers that stick out like a sore thumb.
3-Step Installation 1. Attach the bottom cover to the wall using the included screws and mounting anchors 2. Place your AC lines over the bottom cover and attack lines to cover with cable ties 3. Snap on the top cover piece to completely cover and protect the AC lines
Package Includes: 4 x Straight Duct (39.4”) 1 x Flexible Duct (19.7”) (used to connect straight ducts, or as 45/90 degree bends, or as outside/inside corners, or to the outdoor unit) 3 x Coupling (connects Straight Pcs) 1 x 90° Elbow (outside Corner) 1 x 90° Flat Elbow 1 x Wall Entry Cap 1 x End Cap
Ordering with a system? Use the Following Coupon Code to get $10.00 OFF: B3x14 (Coupon Only Valid with Qualified Systems)
Get SPB-66 Condensate Pump for Ductless Mini Split Systems.
What’s Included:
Thermally Protected Overflow Alarm Function Suitable water Temp 32°F – 167◦F Automatic Tank Cleaning Error Alarm Anti-Mold Tank External Mounting for Easy Servicing
PRICE: $89.99 ex. tax

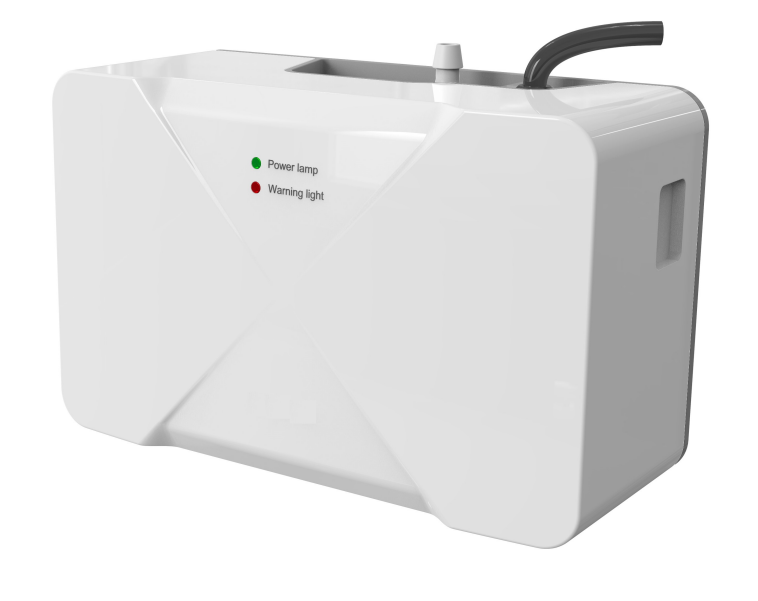

SPB-66Condensate Pump for Ductless Systems
SPB-66 SMART PUMP condensate pump is designed as an automatic condensate removal pump for water dripping off an air conditioner evaporative coil. The pump is controlled by a float/switch mechanism which turns the pump on when approximately 2″ of water collects in the tank, and automatically switches off when the tank drains to approximately 1″.
°Compare to more expensive brands like: ⇒Refco’s Gobi II & Aspens ASP-MW-UNI ⇓Scroll Down to related items for other options⇓
Features Thermally Protected Overflow Alarm Function Suitable water Temp 32°F – 167◦F Automatic Tank Cleaning Error Alarm Anti-Mold Tank *External Mounting for Easy Servicing
TECHNICAL DATA • Pump rating: 110-240VAC 50/60Hz Single Phase • Max. water flow rate : 40L / 10.6 US Gal / H • Max rec. head: 20m / 66ft • Max.suction lift: 1m / 3.3ft • Sound level: 19dB(A)@ 1m • Rated: Non-continuous • Class: II appliance • Safety switch: 3A normally closed • Max.water temperature :70℃ / 158°F • Inlet size: Ø 7.5mm • Outlet size: Ø 7.5mm •IP Protection: IPx1 •Thermal Protection: √ •Fully Potted: √ •Self Priming: √
READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL, OPERATE OR SERVICE THE SMART PUMP. KNOW THE PUMP APPLICATION, LIMITATIONS AND POTENTIAL HAZARDS. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. WIRING INSTRUCTIONS
On/Off Set-point Room temperature Mode (Auto, Cool, Heat, Fan, Dry) Fan speed Louver position Error code Interlock control with indoor unit On/Off
PRICE: $299.99 ex. tax
DKN Plus Interface AZAI6WSPDKC
Energy-Efficient Control
The DKN Plus Interface (AZAI6WSPDKC) enables the energy-efficient control of Daikin air conditioners by a third-party thermostat or an automation system. With this interface, third-party devices or systems can control the VRV, SkyAir, and Daikin Single/Multi-Zone indoor units through Cloud API, Modbus®, BACnet™ MS/TP, or thermostat relay contacts. This interface can be commissioned with ease through the DKN Cloud North America (NA) app via Bluetooth® Low Energy (BLE).
Get Standard Wall Bracket for Mini Split Outdoor Units.
What’s Included:
This 2pc Outdoor Mounting Bracket is an effective way to mount your typical outdoor unit to the wall, keeping it off the ground and increasing air curculation.
PRICE: $79.99 ex. tax

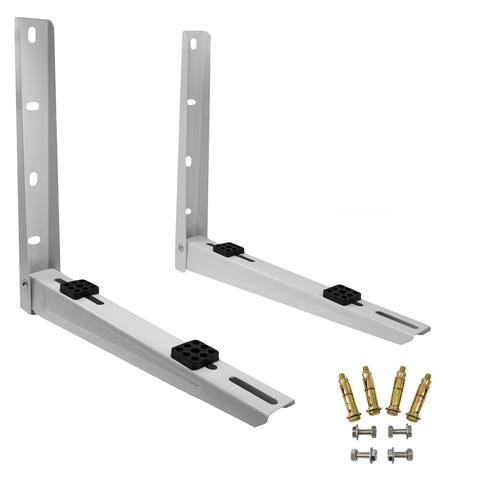

Standard 2Pc Outdoor Mounting Bracket (JG-1E =9k/12k, JG-2E=18k/24k)
This 2pc Outdoor Mounting Bracketis an effective way to mount your typical outdoor unit to the wall, keeping it off the ground and increasing air curculation.
Since these brackets lift the unit, it allows a closer installation to the wall. If mini splits are installed on pads, they need to be 12” from the wall- using a bracket gets it as close as 6” to the wall.
*The 2 brackets need to be spaced perfectly to line up with the holes in the feet of your outdoor unit.
*Consider our 3pc Deluxe Bracket for easier installation and allows for larger sizes.
Get Combi Condensate Pump for Ductless Mini Split Systems.
What’s Included:

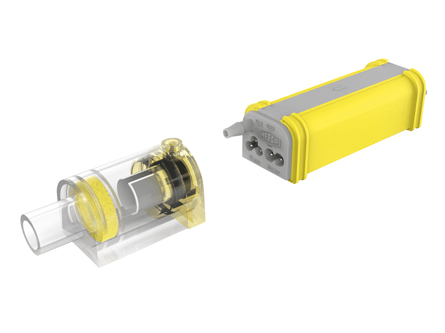

The Combi condensate pump is an entirely new design specifically manufactured for use in duct-free air conditioning split systems. The Combi is full of custom features that are unique to the world market.
PRICE: $129.99 ex. tax
The Combi condensate pump is an entirely new design specifically manufactured for use in duct-free air conditioning split systems. The Combi is full of custom features that are unique to the world market. The flow range, optional configuration and universal voltage allow both installing contractors and wholesalers to stock and use a single product that fulfills all your requirements.
*See related items below for other options.
Technical Data:
Maximum flow rate:
11 GPH (42 l/h)
Maximum suction:
9.80 ft. (3 m) self priming
Maximum head:
65.60 ft. (20 m)
Sound:
20dBA at 3 ft. (1m) / 19 dBA at 1 m EN ISO 3744:2010
Wireless access:
Remote wireless access with smartphone (optional feature)
Voltage:
100 ~ 240 VAC 50/60 Hz auto sensing universal power input
Power:
8 watts during maximum operation at 110V
Alarm relay:
10 Amps NO/NC contacts with integratedd replaceable HRC 10A glass fuse 5 × 20 mm
Weight:
0.63 Lbs. (285g)
Discharge star tube:
1/4“ I.D. (6.25 mm) × 3.3 ft. (1 m)
Protection:
Class II double insulation, Fully potted, IP-44
Operation temp:
Ambient 37.5°F to 104°F (3°C to 40°C) / Water 41°F to 77°F (5°C to 25°C)
Compliance:
Conforms to UL: 778 and certified to CSA C22.2 #68

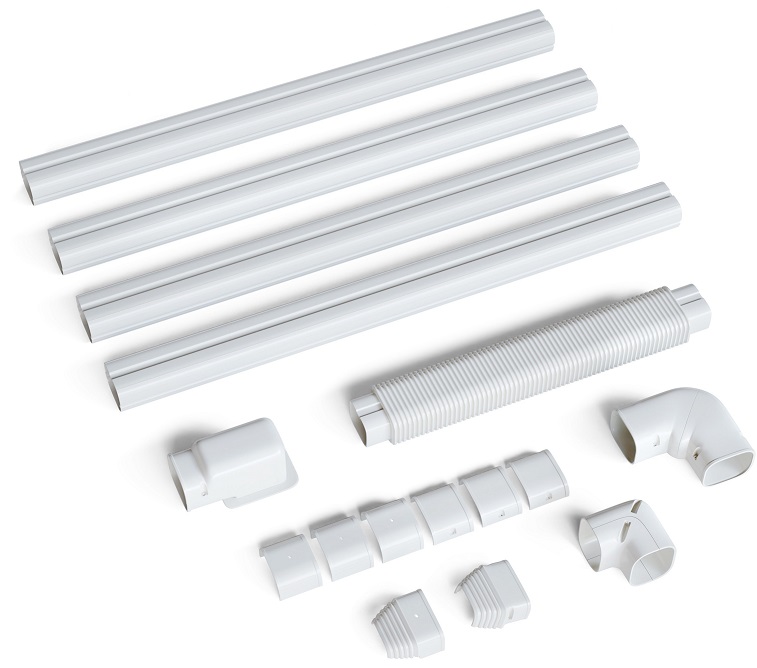

PVC Lineset Cover for Mini Split Systems in Minisplitwarehouse.com Choose from more than 300 products that suits your needs exactly! Get C&H 3” PVC Lineset Cover for Mini Split Systems CH-LNSC12. Price: $89.99 ex. tax. Call us 877-770-3548 or visit our website.
NEAT APPEARANCE: C&H CH-LNSC12 3” line set cover keeps your pipes and cords organized while providing protection that extends the lifespan of your AC unit by reducing maintenance.
*See related items below for other options.
UNIVERSAL APPLICATION: Doesn’t matter which brand system you use, this 3-inch wide tubing is adaptable for most ductless mini split and central air conditioning units up to 36,000 BTUs.
LONG-LASTING: Weather-resistant and safe for temps of -40℉ to 140℉, this PVC lineset-cover will protect your AC lines for years to come without fading, cracking, or deforming.
EASY INSTALLATION: After screwing the bottom of the cover to the wall, the top cover can be quickly snapped on. All parts can be trimmed according to the specific length of your lines or cables.
CUSTOMIZABLE: This line cover set can be painted to match the exterior wall color to provide a seamless appearance on your building exterior. No more ugly cables hanging around or line covers that stick out like a sore thumb.
3-Step Installation 1. Attach the bottom cover to the wall using the included screws and mounting anchors 2. Place your AC lines over the bottom cover and attack lines to cover with cable ties 3. Snap on the top cover piece to completely cover and protect the AC lines
C&H CH-LNSC12 Package Includes:
4 x Straight Duct (39.4”) 1 x Flexible Duct (19.7”) (used to connect straight ducts, or as 45/90 degree bends, or as outside/inside corners, or to the outdoor unit) 3 x Coupling (connects Straight Pcs) 1 x 90° Elbow (outside Corner) 1 x 90° Flat Elbow 1 x Wall Entry Cap 1 x End Cap
Daikin Wired Thermostat in Minisplitwarehouse.com Choose from more than 300 products that suits your needs exactly! Get Daikin Wired Thermostat BRC1H71W Madoka. Price: $279.99 ex. tax. Call us 877-770-3548 or visit our website.
Daikin is pleased to introduce the Madoka remote controller for the North American VRV, SkyAir, and Single and Multi-zone systems.
The Madoka features a sleek and stylish design with an intuitive interface including touch button control. It retains advanced functions for indoor unit control. It can be commissioned and managed with ease through a Bluetooth® configuration app or via the onboard menus.
The Madoka provides 3 configurable display modes: Text (default), Icon, and Scale to help meet project and occupant needs.
EASY COMMISSIONING Settings and configuration can be set and sent to controllers easily using BLE technology Selective display mode: Text, Icon, and Scale display Field settings are categorized based on the application Language: English, French, Spanish Supports both Fahrenheit and Celsius Date and Time with Automatic DST BASIC CONTROL FUNCTIONS On/Off, operation mode, set-point Up to 5 fan speeds selectable Louver direction Error Code Auto-draft prevention ADVANCED FUNCTIONS Auto changeover with guard timer Setpoint range limitation Dual setpoint for H/C Unoccupied setpoint (Setback control) Minimum setpoint differential Individual fan speed for cooling and heating Daikin Madoka Remote Controller BRC1H71W Features -Easy commissioning and management with Bluetooth® app – Leveled user authority for owner/administrator and installer – QR code (stored locally) required to access the installer menu to prevent unauthorized access – Settings can be saved and sent to multiple controllers – Set up multiple settings at once
With the Madoka Quick Set app, advanced function settings and commissioning can be easily done through a Bluetooth® connection » Sleek and stylish design » Simple and intuitive interface with advanced function options (see setting options listed in the table on page 2) » Selectable display mode: – Text mode, icon mode, and scale mode
