Get DKN Plus Interface AZAI6WSPDKC.

BASIC CONTROL FUNCTIONS:

On/Off
Set-point
Room temperature
Mode (Auto, Cool, Heat, Fan, Dry)
Fan speed
Louver position
Error code
Interlock control with indoor unit On/Off

PRICE: $299.99 ex. tax

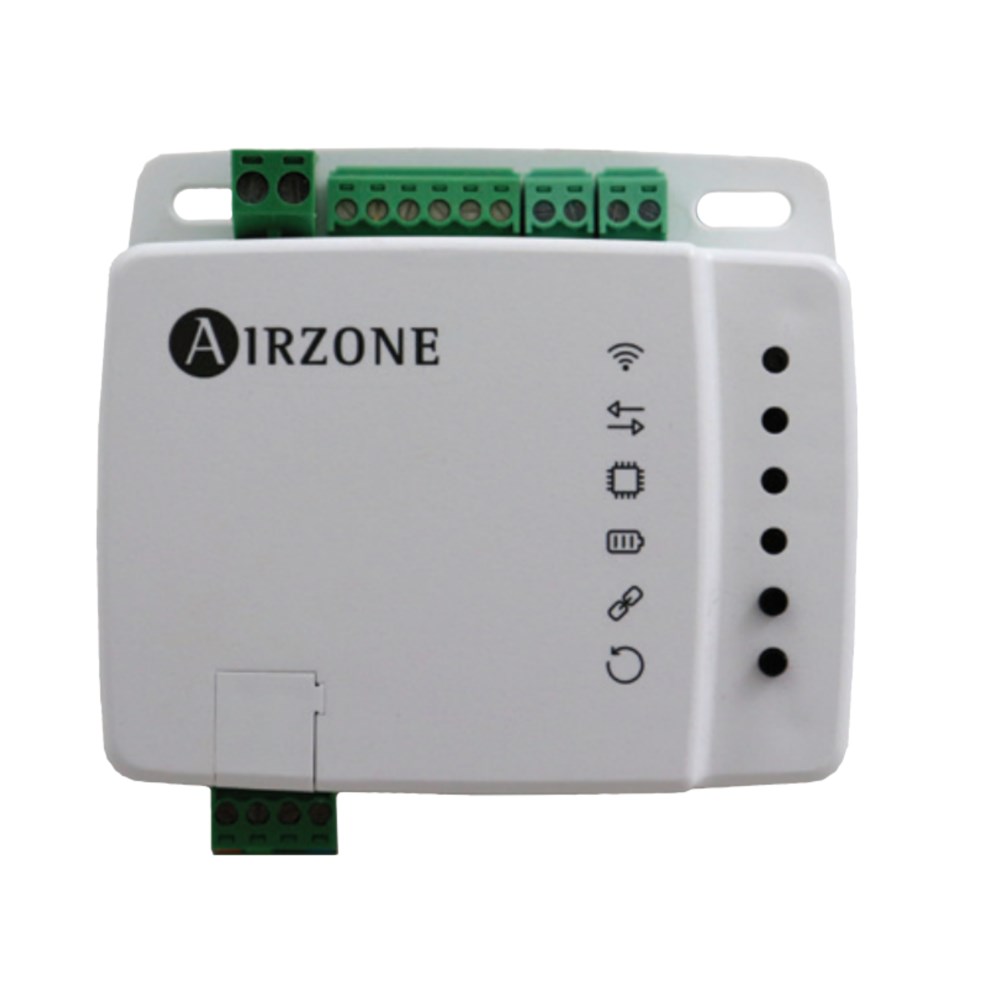

DKN Plus Interface AZAI6WSPDKC

Energy-Efficient Control

The DKN Plus Interface (AZAI6WSPDKC) enables the energy-efficient control of Daikin air conditioners by a third-party thermostat or an automation system. With this interface, third-party devices or systems can control the VRV, SkyAir, and Daikin Single/Multi-Zone indoor units through Cloud API, Modbus®, BACnet™ MS/TP, or thermostat relay contacts. This interface can be commissioned with ease through the DKN Cloud North America (NA) app via Bluetooth® Low Energy (BLE).

COMPATIBILITY

FUNCTIONS

Versatile interface adaptor that can integrate with a third-party thermostat/BMS through multiple approaches:

• Cloud API
• Modbus
• BACnet MS/TP
• Backup thermostat G/Y/W (Fan/Cool/Heat) relay control through thermostat wire:
  • Automatically disables thermostat relay logic when cloud API connection detected
  • Advanced control logic to maximize indoor unit efficiency

Easy commissioning with the BLE configuration app (DKN Cloud NA app)

Indoor unit control and monitoring points*

BASIC CONTROL FUNCTIONS

• On/Off
• Set-point
• Room temperature
• Mode (Auto, Cool, Heat, Fan, Dry)
• Fan speed
• Louver position
• Error code
• Interlock control with indoor unit On/Off

Auxiliary Heater Control

• Auxiliary heater controlled as a secondary heat source

*Availability depends on indoor unit model

Brochure
Submittal Data Sheet
Manual

Daikin Wired Thermostat in Minisplitwarehouse.com Choose from more than 300 products that suits your needs exactly! Get Daikin Wired Thermostat BRC1H71W Madoka. Price: $279.99 ex. tax. Call us 877-770-3548 or visit our website.

LINK:
https://www.minisplitwarehouse.com/category/accessories

https://www.minisplitwarehouse.com/category/daikin

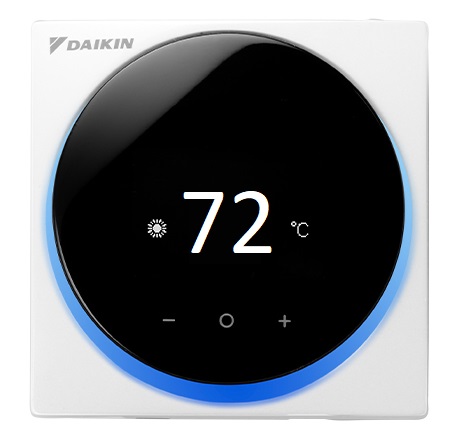

Daikin is pleased to introduce the Madoka remote controller for the North American VRV, SkyAir, and Single and Multi-zone systems.

The Madoka features a sleek and stylish design with an intuitive interface including touch button control. It retains advanced functions for indoor unit control. It can be commissioned and managed with ease through a Bluetooth® configuration app or via the onboard menus.

The Madoka provides 3 configurable display modes: Text (default), Icon, and Scale to help meet project and occupant needs.

Compatible Indoor Unit Models (P1/P2)
VRV and VRV LIFE: CXTQ, FXAQ, FXDQ, FXEQ, FXFQ, FXHQ, FXLQ, FXMQ, FXNQ, FXSQ, FXTQ, FXUQ, FXZQ, VAM
SkyAir: FAQ, FBQ, FTQ, FCQ, FHQ
Single-Zone and Multi-Zone: FDMQ, FFQ

EASY COMMISSIONING
Settings and configuration can be set and sent to controllers easily using BLE technology
Selective display mode: Text, Icon, and Scale display
Field settings are categorized based on the application
Language: English, French, Spanish
Supports both Fahrenheit and Celsius
Date and Time with Automatic DST
BASIC CONTROL FUNCTIONS
On/Off, operation mode, set-point
Up to 5 fan speeds selectable
Louver direction
Error Code
Auto-draft prevention
ADVANCED FUNCTIONS
Auto changeover with guard timer
Setpoint range limitation
Dual setpoint for H/C
Unoccupied setpoint (Setback control)
Minimum setpoint differential
Individual fan speed for cooling and heating
Daikin Madoka Remote Controller BRC1H71W Features
-Easy commissioning and management with Bluetooth® app
– Leveled user authority for owner/administrator and installer
– QR code (stored locally) required to access the installer menu to prevent unauthorized access
– Settings can be saved and sent to multiple controllers
– Set up multiple settings at once

With the Madoka Quick Set app, advanced function settings and commissioning can be easily done through a Bluetooth® connection
» Sleek and stylish design
» Simple and intuitive interface with advanced function options (see setting options listed in the table on page 2)
» Selectable display mode:
– Text mode, icon mode, and scale mode

Compatible Indoor Unit Models (P1/P2)
VRV and VRV LIFE: CXTQ, FXAQ, FXDQ, FXEQ, FXFQ, FXHQ, FXLQ, FXMQ, FXNQ, FXSQ, FXTQ, FXUQ, FXZQ, VAM
SkyAir: FAQ, FBQ, FTQ, FCQ, FHQ
Single-Zone and Multi-Zone: FDMQ, FFQ

Click on the links below for manuals:
Brochure
Daikin APP
Install Manual
Operation Manual
Quick User Manual
