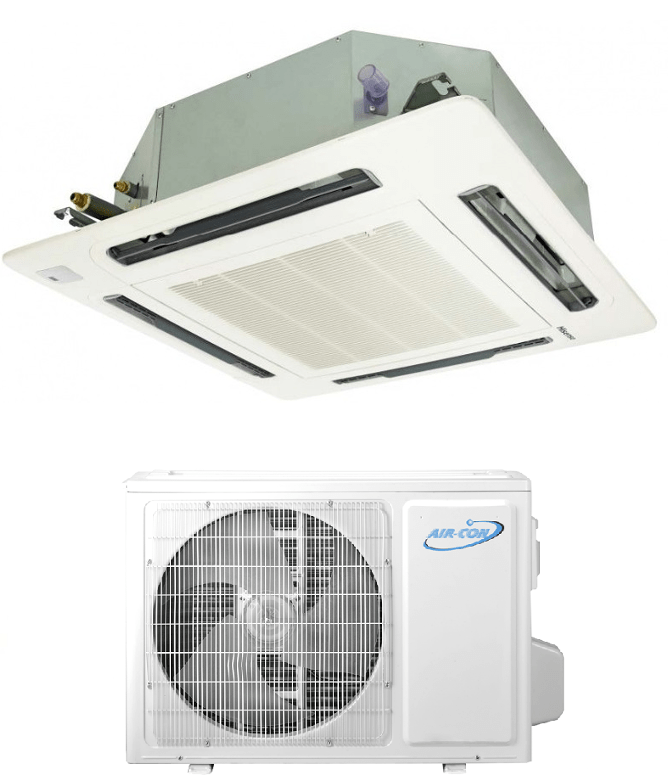

Ceiling Cassette Mini Split Heat Pump in Minisplitwarehouse.com Why shop anywhere else when we have the best deals around? Get AirCon 12000 BTU 19 SEER Ceiling Cassette Mini Split Heat Pump AC. Price: $1,359.99 ex. tax. Call us 877-770-3548 or visit our website.
New AirCon Ceiling Cassette Heat Pump AC System *Included In Package: *(1) One Indoor Ceiling Cassette (with Grill & Remote) *(1) One Heat Pump Outdoor Unit (5F/5F)
KEY INDOOR FEATURES
Built-in Condensate pump
Integrated Electrical Components Easy maintenance with the circuit box inside the unit, provides a more compact size for easier installation.

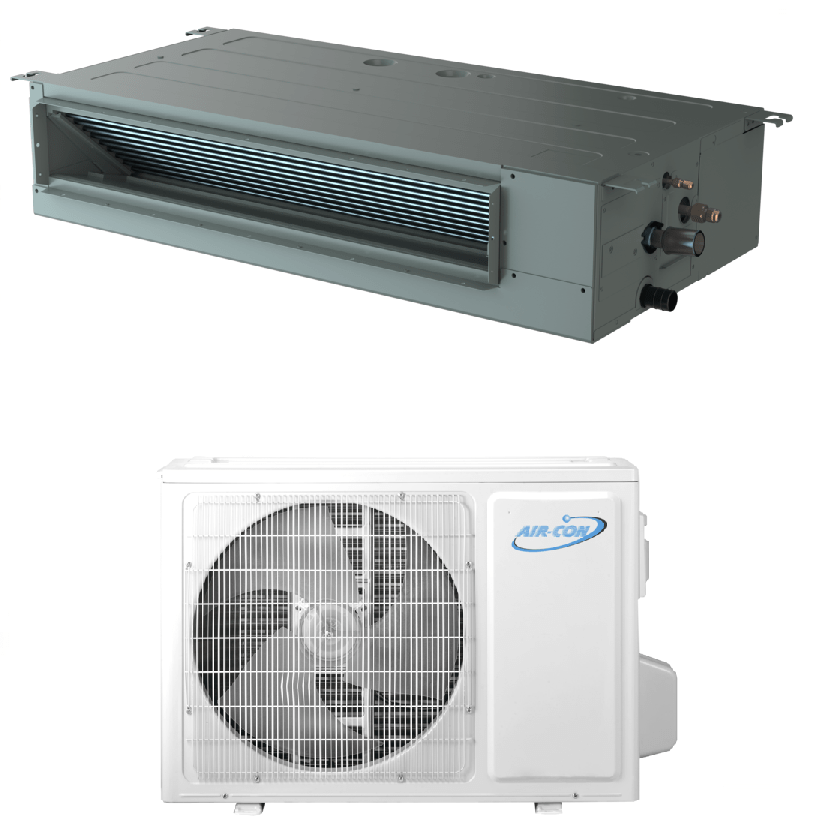

Slim Ducted Mini Split Heat Pump in Minisplitwarehouse.com Ducted Heat Pumps provide discreet air conditioned comfort. Get AirCon 9000 BTU 19 SEER Slim Ducted Mini Split Heat Pump AC. Price: $1,179.99 ex. tax. Call us 877-770-3548 or visit our website.
*New AirCon Slim Ducted Heat Pump AC System *Included In Package: *(1) One Indoor Slim Ducted (with Wired Thermostat) *(1) One Heat Pump Outdoor Unit (5F/5F)
KEY FEATURES
Vertical or Horizontal Installation Designed for maximum installation flexibility with the built-in secondary drain pan which allows the unit to be mounted vertically for either a floor or ceiling-concealed installation depending on existing conditions.

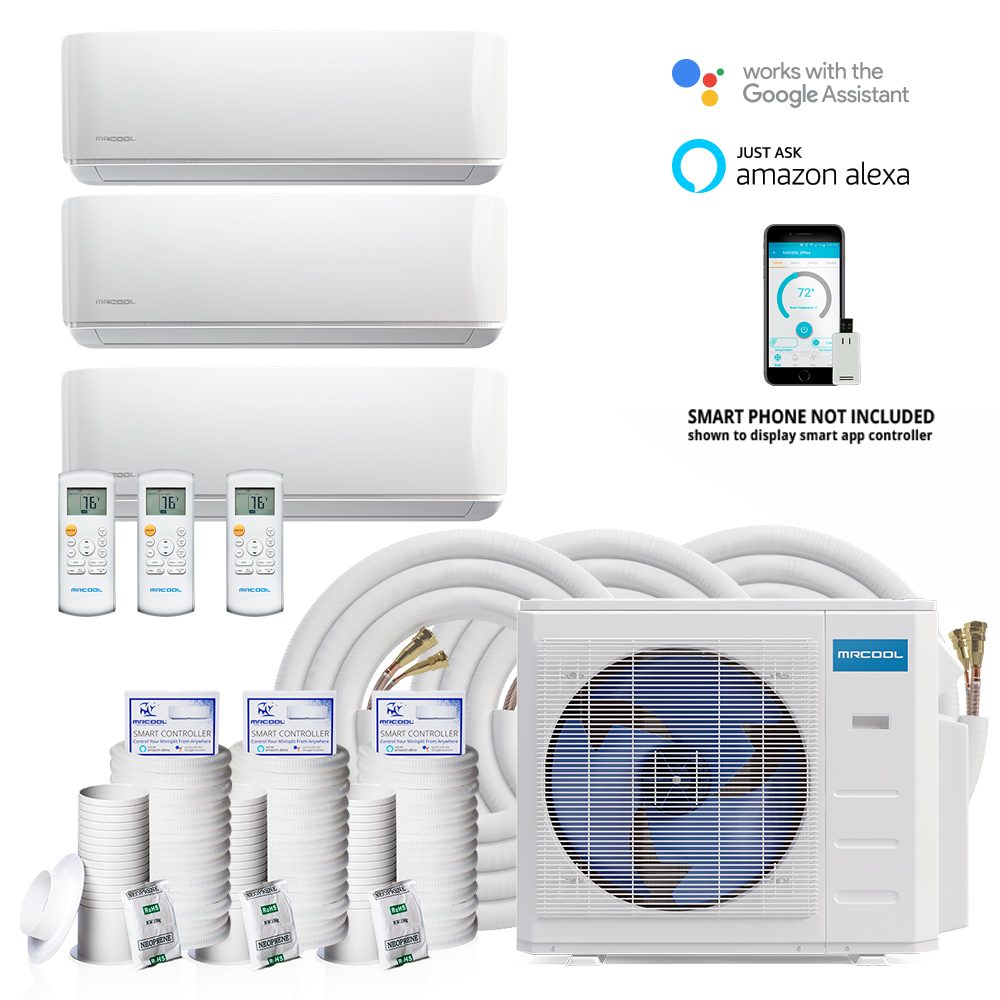

3 Zone Ductless Heat Pump by Mr Cool in Minisplitwarehouse.com Find the best Multi Zone Mini Split deals that fit your budget. Get DIY 3 Zone 22 SEER Ductless Mini Split Heat Pump AC by Mr Cool. Price: $3,089.69 ex. tax. Call us 877-770-3548 or visit our website.
*This DIY MR COOL 3 Zone Mini Split Package Includes:
Features Include: ∼Heats & Cools(5F)∼Gold Coated Coils∼7yrCompressor 5yrParts Warranty∼ Specifications
*(1) 3 Zone Outdoor Unit 27,000Btu (22 SEER) *(3) Indoor Units 9000Btu Wall Mount (with Wireless Remotes & Wifi Kits) *25′ DIY/Quick Connect Install Kits with each indoor unit __________________________ DO NOT EXCEED THE ALLOWED INDOOR COMBINATION Allowed Indoor Combinations If you Upgrade Zone 1 to a 24K, the Outdoor Compressor needs to be Upgraded also. _________________________________________________________
Kink Resistant Simple to Use Screw-on Quick Connect® Valves Available in 25ft lengths Line sizes 1/4” and 1/2” Multi-Zone Condenser includes adapter for 24K Air Handler (3/8”, 5/8” Line Size) Leak Proof No Vacuum Needed 100% Accurately Pre-charged R-410A Refrigerant Connect Line Sets Together to Create Longer Length Using the MRCOOL® DIY® Coupler
Multi-zone coverage is just one of the great features of a MRCOOL DIY Series. This Ductless Heat Pump Condenser brings you double the comfort and none of the wasted energy of your old-school central systems. Connect one Olympus air handler in your living room and another in your bedroom. Environmentally friendly R-410A refrigerant is part of this unit’s high SEER rating. Another plus: lifetime tech support!
Looking for a split system that can serve multiple zones in one system? Look no further! The MRCOOL ductless heat pump system has the flexibility that you have been looking for, this package will save you money on both efficiency, installation, and your purchase as it only requires one condensing unit.
This ductless multi-zone system can be used in many different applications, including an office meeting room, your home or gym. You can also wire these two units to operate them together if serving the same space, making it a truly dynamic system that should fit your installation needs.
With fantastic performance, and exceptional efficiency, you can expect this system to deliver comfort while saving you money on your monthly bills. Ultimately the higher the SEER rating, the more potential you have to save money. With this package you can have confidence with your purchase.
This unit also comes with great features that will alarm you if a problem were to ever arise, giving you time to call a service technician to diagnose the issue quickly. With automatic leak detection you’ll be notified if a leak is acknowledged in your system. If a leak is to occur, it’s important to diagnose and resolve the issue as soon as possible to prevent damage to your refrigeration circuit. Compressors are often the most expensive component to replace in a system, but with a 7 year compressor warranty, you can rest easy knowing you will get a replacement if it were to ever happen to you.
Pros of Using DIY Units
Cons of Using DIY Units
NO HVAC Contractor Needed
Higher Cost Compared to Regular Units
Easy to Install, as long as you read & follow directions
Many problems, if you dont follow directions
Best for people with technical experience
NOT for people with no technical experience
Includes the components you need for a basic install
Doesnt include everything you need for a full install
DIY troubleshoot if something goes wrong, they dont just replace a unit if you have a problem.
Have to DIY replacement parts (IE:PCB, Motors, etc)
Limit on copper line length, have to use the kits provided
Limited on indoor sizes, and only wall mount indoor units
No way to know if there are leaks in the coils
If there is a leak, you have to hire a HVAC tech to re-fill
Most people do not have the all the tools needed
Building Departments will not issue permits for DIY

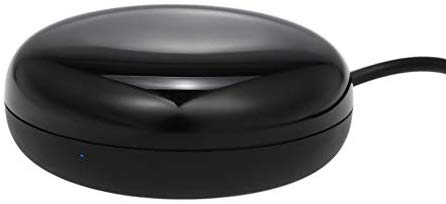

Universal Wifi Controller in Minisplitwarehouse.com. We deliver the level of comfort, convenience, and reliability that you’ve come to expect. Universal Wifi Controller for Ductless Mini Split AC’s, TV’s, and More. Price: $39.99 ex. tax. Call us 877-770-3548 or visit our website.
This smart wifi device allows you to control, set schedules, make rules, voice commands (with Alexa & Google Assistant) for any IR device in the room with it. Devices like mini splits, tv’s, cable boxes, virtually any IR controlled electronic device can now be controlled by your smart phone from anywhere. With schedules and rules, you can just set it and forget it.
This smart wifi device can learn your remote if needed, it has 80,000 built in remote codes- but by using your original remote it can learn functions for any device not already listed in its programming.
The unique round design allows it to send signals all around the room, so installation is a breeze. Just make sure all your IR devices are less than 20′ from this wifi controller, and it should not have any issues with communicating with them.
Device uses a mobile phone app called “Smart Life“, which is available for both IOS and Android. Pro’s: Easy To Install Easy to Operate Schedules (Daily, Weekly) Learns Remote Codes Voice Control using IFTT USB Charging Cord Included
Cons: App Displays Set Temperature in Celcius (Until the app is updated) Does Not Have Sensor (Doesnt Display Room Temp/Humidity) USB Wall Charger Not Included

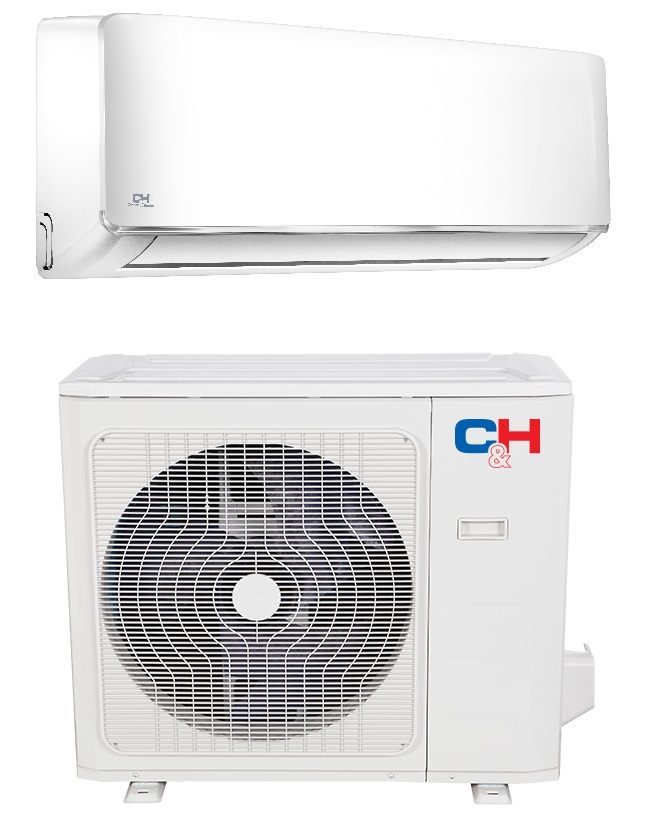

*(1) 110V Indoor Unit (with Remote) Sophia Wall MountFeatures Include: ˜Follow Me˜ Built-in temperature sensor in the Remote Controller will sense its surrounding temperature and adjust the room temperature more accurately to provide comfort. ˜8 Modes˜ Cool, Heat, Dry, Fan, Auto, Turbo, Eco, Sleep ˜Fully Modulating Fan Speeds˜ Louver Control˜ UP & Down (Fixed or Swing) ˜Carbon Filter ˜Gold Coated Coils˜
*(1) 110V Outdoor Unit: Heats & Cools (-13F)˜ Features Include: ˜Ultra Green Coated Coils˜ 7yr Compressor 5yr Parts Warranty˜ ˜Refrigerant Leak Detection˜Auto Restart˜ (Toshiba GMCC Compressor Inside)
With its high efficiency / high SEER compressor and auto swing louvers, this newest model Cooper & Hunter ductless mini split will both heat and cool your home or office. The DC inverter heat pump pulls heat from the air down to temperatures as low as -13°F. You are well protected by a seven year warranty on the compressor, a five year parts warranty. This model features a safe and rugged Toshiba-GMCC inverter compressor.
Extra Low Temperature Heating For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -13° F (-25° C), making this a primary heat source and eliminating the need for a backup heat source.
Stepless Frequency Adjustment Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.
FEATURES
Available in 110v
Built-in basepan heater
Auto-restart function
Condenser high-temperature protection
Refrigerant leakage detection
Quiet outdoor operation, as low as 54.6 dB(A)
Aluminum Golden Hydrophilic pre-coated fins
Piping length 82 ~ 164 ft. (25 ~ 50 m.)
Cooling operating range
-13° ~ 122° F
Heating operating range -13° ~ 86° F
Compatible With:
DLFSHA High Wall (110v)
Color: Clay
DOCUMENTS SPECIFICATIONS
Indoor KEY FEATURES
ECO Mode The intelligent 8-hour night cycle program saves up to 60% of energy to make it more comfortable at night when sleeping.
Follow Me Built-in temperature sensor in the Remote Controller will sense its surrounding temperature and adjust the room temperature more accurately to provide comfort.
FEATURES
Available in 110V
Up to 24.7 SEER and 11.0 HSPF when paired with the DLCSRA outdoor unit

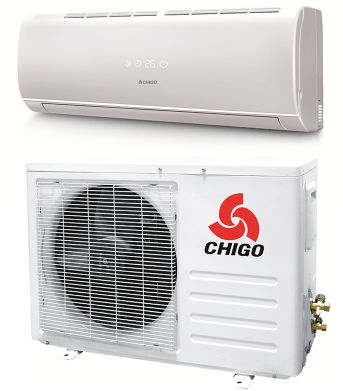

9000 Btu Ductless Heat Pump Air Conditioner in Minisplitwarehouse.com. Lowest price on best Mini Split units. Free shipping! Chigo 9000 Btu 20 Seer 110V Ductless Heat Pump Air Conditioner. Price: $679.99 ex. tax. Call us 877-770-3548 or visit our website.
*One (1) Factory Warranty: Our Exclusive Warranty Card- CLICK HERE 7 Year Compressor / 5 Year Parts *(Terms & Conditions Apply) ________________________________________________ 19 & 20 SEER FULL Inverter Line: Comes Pre-Charged with Eco-Friendly R410A. Multi-fold evaporator increases heat exchange & enhances efficiency
Quiet Efficient COOLING HEATING Auto-Defrost Auto-Restart Independent DE-HUMIDIFICATION AIR PURIFICATION (Washable Filters) PG motor, Sleeping Mode LED LCD display
Features: Ultimate in energy savings Hi-Efficiency Compressor (Panasonic & Hitachi) Anti-corrosive treatment LCD wireless remote control Air purifying filter 24 hour on/off timer Quiet sleep operation Auto and 3 speeds fan control Vertical auto-swing Signal reception indicator
Cools when outdoor temps are:64.4F~114.8FHeats when outdoor temps are:19.4F~75.2F.
Chigo is an International Air Conditioner Supplier, with more than 21 years experience in the refrigeration and air conditioning industry. Chigo possesses a modern R&D (Research and Development) production base and an entire industrial chain including compressors. By focusing on high end products, commitment to innovation and delivering ultimate comfort for global users.Chigo has gained magnificent popularity in more than 200 countries and regions across the world.
Click the image below to see the brochure and specification

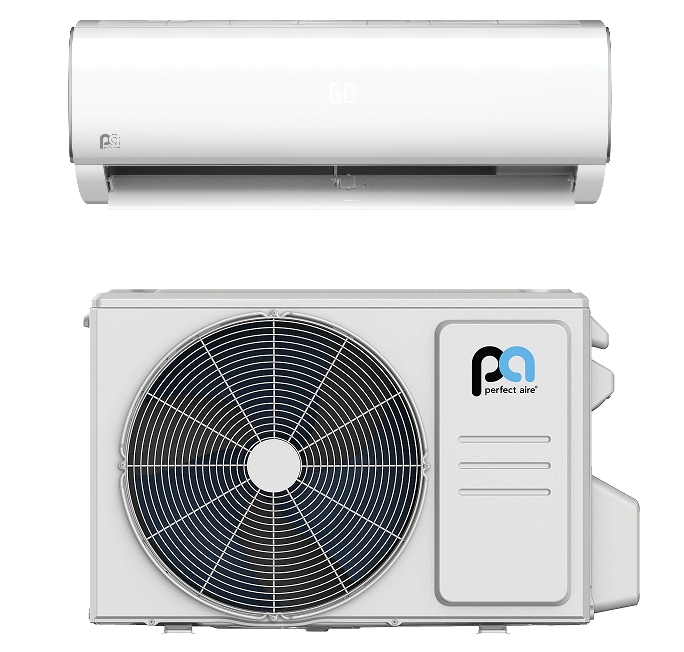

9000 BTU Ductless Mini Split Heat Pump Air Conditioner in Minisplitwarehouse.com. Mini split-system have numerous potential applications. PA 9000 BTU 16.5 SEER 110V Ductless Mini Split Heat Pump Air Conditioner. Price: $779.99 ex. tax. Call us 877-770-3548 or visit our website.
Wall Mount Features Include: ˜Follow Me˜Built-in temperature sensor in the Remote Controller ˜7 Modes˜Cool, Heat, Dry, Fan, Auto, Turbo, Eco, Silence Louver Control˜UP & Down (Fixed or Swing) ˜Silver Ion Filter˜
Perfect Aire ductless mini-split systems provide efficient year-round heating and cooling, all while using much less space and producing less noise than typical furnace and air conditioner systems. The built-in inverter technology reduces energy usage by operating at lower power levels as needed instead of running at full power in short bursts, as older systems do. Besides helping consume less energy, this also means that Perfect Aire mini-split systems keep a steadier temperature than traditional heating and cooling.
Perfect Aire condensers are built to last, with corrosion-resistant coatings made to withstand years of exposure to the elements, and also feature auto-restart, self diagnostics and refrigerant leak detection. All of this while also delivering super efficiencies, based on condenser and indoor air handler models used.
The indoor air handlers are designed to blend in with your home or office’s decor with minimal space requirements. Air handlers can be installed on your wall and include wireless remote controls allowing each zone to be customized as needed to the temperature you desire, or turned off completely to further save on energy costs. The system’s Turbo operation allows it to quickly reach a desired temperature by running at maximum output.
Turbo Operation
Unit maximizes cooling or heating output capacity to attain desired temperature in the shortest amount of time
Heat Pump
Provides year round comfort allowing unit to reverse refrigerant process in cold weather, by extracting outside heat and transferring inside. Excellent for house additions without forced air heating systems or where ductwork is not possible
Anti-Cold-Air
Prevents cold air from blowing out at the beginning of operation by automatically regulating fan speed according to temperature
Sleep Mode
Automatically increases (cooling) or decreases (heating) 2°F/hour for first 2 hours, and holds steady for next 5 hours before switching off and returning to preset temperature for both energy savings and comfort
Hydrophilic Aluminum Fin
Improves indoor unit cooling efficiency by enabling unrestricted flow of condensate water between aluminum fins and Improves outdoor unit heating efficiency by accelerating defrosting process
Golden Fin
Anti-corrosive coating on indoor and outdoor units withstands salty air, rain and other corrosive elements while improving heating efficiency by accelerating defrosting process
Low Ambient Kit
With a special built-in kit the air conditioner can be used in temperatures as low as 5°F for cooling
Self-Diagnostic Function
Detects abnormal operations or part failures, display an error code on the indoor unit, and switch off automatically to protect the system. Displays EC error code on indoor unit if outdoor unit detects refrigerant leak condition
Auto Defrosting
Evaporator automatically defrosts, prolonging product life and improving energy savings
Refrigerant Leakage Detection
Displays EC error code on indoor unit if outdoor unit detects refrigerant leak condition
Follow Me Remote Control
Comes with a remote control with built-in room temperature sensor regulates room temperature around remote and allows the remote to become a thermostat
Silver Ion Filter
Nano Silver attached to filter releases Silver Ion to kill or deactivate bacteria

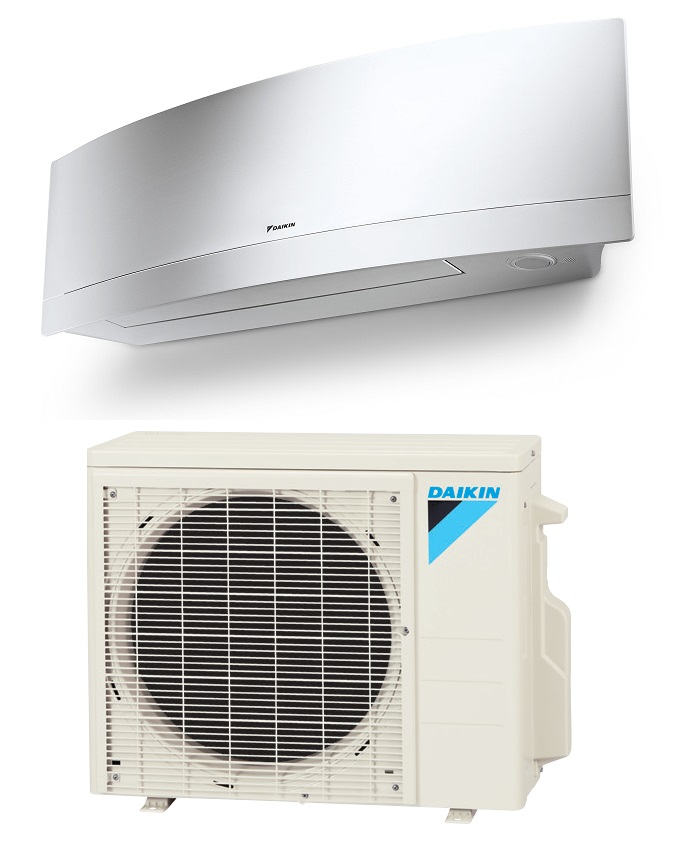

Daikin 9000 Btu Ductless Mini Split Heat Pump AC in Minisplitwarehouse.com. Mini-splits are heating and cooling systems that allow you to control the temperatures in individual rooms. Daikin 9000 Btu 18 SEER EMURA Ductless Mini Split Heat Pump AC. Price: $1,542.99 ex. tax. Call us 877-770-3548 or visit our website.
*(1) Indoor Unit with Remote Indoor Unit Features: Powerful Operation– Pushing the POWERFUL button on the remote control gives you a boost in cooling or heating power for a 20-minute period, even if the unit is already operating at high capacity. ECO+– An intelligent feature that ensures optimum energy consumption while fulfilling basic human comfort needs. Once activated, set temperature will be adjusted automatically to an optimum energy consumption level. Blue Fin Protection– The hydrophilic coated fin ensures the condensate water moves easily to the drain pan — thus enhancing the cleanliness and lifespan of the cooling coil. Titanium Apatite Photocatalytic Air Purifying Filter – This filter combines the air-purifying filter and titanium apatite photocatalytic deodorizing filter in a single highly effective unit. Intellegent Eye & Comfort AirFlow–The INTELLIGENT EYE sensor detects human movement and adjusts the right and left airflow direction to avoid blowing air directly on the person. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. The INTELLIGENT EYE sensor works differently depending on the situation. COMFORT AIRFLOW operation: The airflow direction is upward while in COOL operation, and downward while in HEAT operation. This function prevents cold or warm air from blowing directly on the occupants in the room. 4 Built In Timers-Up to 4 timer settings can be saved for each day of the week. This is convenient to adapt the WEEKLY TIMER to your family’s life style.
*(1) Outdoor Unit 220V
Brochure Heats & Cools (5f / 50f) *(Cools to -4F with wind baffle and field settings) Inverter Compressor Precharged for up to 32.8ft Anti Corrosion Treatment Auto-Restart
Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The Daikin Emura™ is a wall mounted system perfect for all your single zone heating and cooling needs. This system pairs a sleek, curved wall mounted indoor unit with an outdoor heat pump unit to provide warm and cool air quietly and efficiently to any single zone or room in your home. Daikin Emura™ indoor and outdoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.
Whisper Quiet Operation
Daikin ductless units are engineered from the ground up for impressively quiet operation. The solid construction works together with quiet motor operation to make the units as unobtrusive as possible to its surrounding environment.
Inverter Technology
Daikin’s inverter technology works together with the expansion valve to adjust coolant flow and compressor speed to match indoor conditions. This results in less dramatic temperature swings and a more comfortable home.
Built-In Advanced Filtration System
Daikin mini splits do more for your home’s comfort level than control its temperature. A titanium apatite photo-catalytic air purification filter cleans the air, allowing the mini split to purify the air as well as heating and cooling it.
Premium Comfort
In Comfort Mode, you get draft-free operation in cooling and heating modes. When cooling, the flap is horizontal, preventing cold air from being blown directly on you. Heat mode positions the flap vertically downward to drive warm air to the floor.
Night Set Mode
Daikin Emura™ Night Set Mode prevents rapid temperature changes that may disturb your sleep.
Included Wireless Control
The included wireless control allows you to control the temperature of your room while never leaving the comfort of your favorite recliner. These unit are also compatible with the optional Daikin Comfort Control App.
Intelligent Eye Sensor
When a room is empty for 20 minutes, the Emura™ will revert back to the set point, saving energy. When someone enters the room, it will return to the original temperature setting.

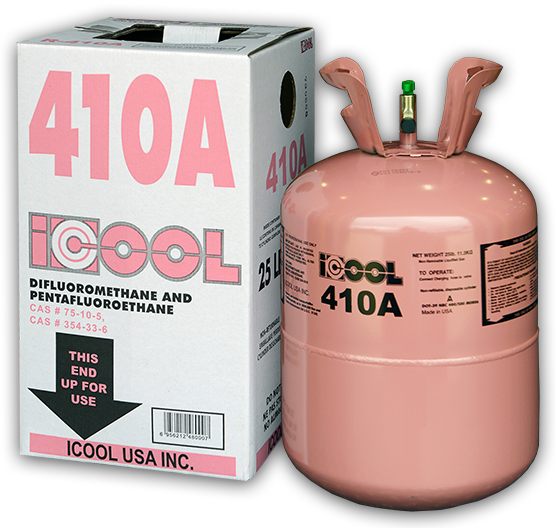

Freon R410A 25 lb. in Minisplitwarehouse.com. Discover the best heating and air conditioning products for your home. Freon R410A 25 lb. Jug Factory Sealed. Price: $389.29 ex. tax. Call us 877-770-3548 or visit our website.
There are several brands being marketed as R-410A. Brands vary based on our suppliers but the chemical makeup does not. The more commonly known are Suva® R-410A by DuPont and Puron® by Carrier. These and others have the same ASHRAE number R-410A.
Important Note: R-410A can only be used in equipment designed for R-410A. R-410A cannot be used to retrofit existing R-22 a/c equipment due to significantly higher operating pressures and much higher cooling capacity as outlined in the chart below.
To ensure safe handling of R-410A, remember that the head pressure is significantly higher than R-22. Also, special service equipment is required, including a high-pressure manifold gauge set, high-pressure recovering machine and a high-pressure recovery tank (4BW400).
When handling R-410A, standard fluorocarbon refrigerant safety and handling practices should be followed. Use gloves, safety glasses and safety shoes when handling containers. Avoid skin and eye contact with liquid refrigerant. Work in well-ventilated areas. Vapors are heavier than air and might concentrate near the floor or in low areas.
Storage requirements for R-410A containers are the same as for R-22 and other commonly used refrigerants. Cylinders should be stored in a clean, dry area, out of direct sunlight. Keep valves tightly closed and valve caps and hoods in place when cylinder is not in use.
Because of its enhanced properties, R-410A systems will operate differently than R-22 systems.
Properties
R-410A
Discharge Pressure
50 to 70 percent higher than R-22
Cooling Capacity
40-60 percent higher than R-22
Discharge Temperature
10F lower than R-22
Energy Efficiency
R-410A units can be designed to meet U.S. Department of Energy guidelines of 12 to 14 SEER
Lubricant
POE
Because of the higher pressure, more system components have been redesigned with increased wall thickness. When servicing this equipment, make sure you use reversing valves, expansion valves, filter-driers and other components specifically designed for R-410A.
In addition to increased pressure rating, the expansion valve flow areas required to provide the same tonnage as R-22 will be about 15 percent smaller use the correctly rated R-410A expansion valve. R-410A is a blend of two refrigerants. To achieve optimum performance, remove as a liquid from the cylinder. Consult your DuPont distributor or OEM for special equipment recommendations
Like R-22, R-410A is non-flammable at normal room temperatures, but like R-22 it can become combustible if mixed with air at elevated temperature and/or pressure. Do not mix R-410A with air for leak testing or other purposes. Instead use a mixture of R-410A and nitrogen for leak testing.
Keep pressure in perspective. The vapor pressure of R-410A is higher than R-22 at 70F. But these pressures are lower than those of other gages (e.g. oxygen) that you may be familiar with and use routinely.
