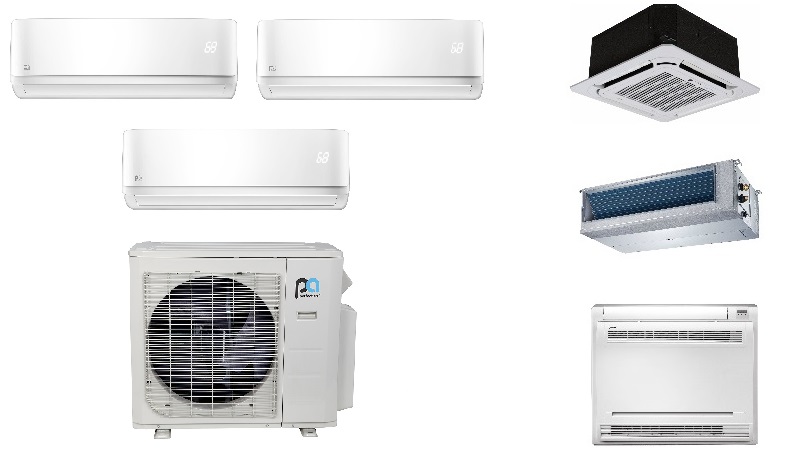

Get PA 3 Zone 22.5 SEER Mini Split Hyper Heat Pump AC.
What Included:
(1) Hyper Multi Zone Outdoor Unit
(3) Wall Mounted Indoor Units (with remotes)
7yr Compressor & Parts Warranty
PRICE: $2,889.96 ex. tax
Get PA 3 Zone 22.5 SEER Mini Split Hyper Heat Pump AC.
What Included:
(1) Hyper Multi Zone Outdoor Unit
(3) Wall Mounted Indoor Units (with remotes)
7yr Compressor & Parts Warranty
PRICE: $2,889.96 ex. tax

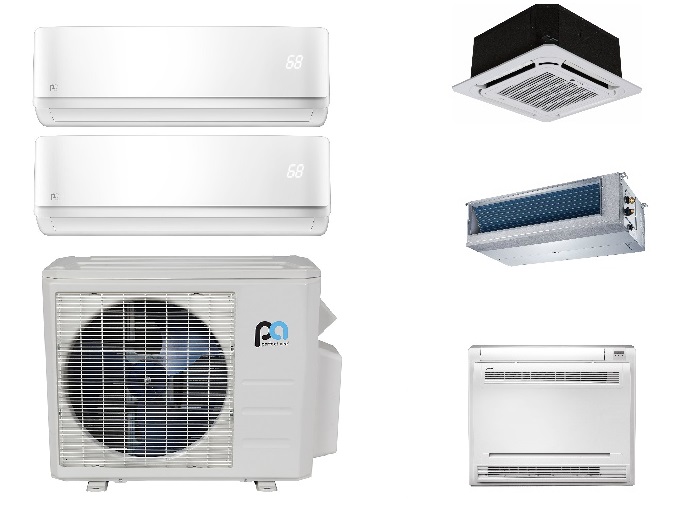

Get PA 2 Zone 21.5 SEER Mini Split Hyper Heat Pump AC. What Included: (1) Hyper Multi Zone Outdoor Unit
(2) Wall Mounted Indoor Units (with remotes) Features :
Heats & Cools (-13F/-13F) ˜Basepan Heater (Built in)˜
Gold Coated Coils˜ ˜Refrigerant Leak Detection
Auto Restart˜
PRICE: $1,959.97 ex. tax
New PA 2 ZONE Mini Split HYPER Heat Pump AC
*This Custom Perfect Aire Multi Zone Mini Split Package Includes: *(1) Hyper Multi Zone Outdoor Unit *(2) Wall Mounted Indoor Units (with remotes) *The outdoor and indoor units can be upgraded via the dropdown boxes above. Features : ˜Heats & Cools (-13F/-13F) ˜Basepan Heater (Built in)˜ ˜Gold Coated Coils˜ ˜Refrigerant Leak Detection ˜Auto Restart˜ Brochure INVERTER TECHNOLOGY: Inverter compressor reduces friction for smoother rotation and less vibration, resulting in a quieter and more efficient acPerfect Aire Multi Zone systems, with inverter technology, are some of today’s most advanced ductless split heat pumps. Up to 5 indoor units can be connected to a single outdoor unit, reducing the number of outdoor units required. All indoor units can be individually controlled and do not need to be installed at the same time. With modern heat pump technology, the Optional HyperTek Heat series offers dependable cooling as well as the capability to heat in ambient temperatures as low as -22°F, making it an excellent, energy-efficient solution for colder climates. |
7yr Compressor & Parts Warranty
*Upgrade the -13F outdoor unit to larger sizes and the -22F Hyper model via the dropdown boxes (Click) model numbers for cut sheets 3PAMSH18-MZO23PAMSH27-MZO33PAMSH36-MZO43PAMSH48-MZO53PAMS18-HH-MZO23PAMS27-HH-MZO33PAMS36-HH-MZO4 (TALL)3PAMS48-HH-MZO5 |
*ADD the indoor units below via the dropdown boxes above When adding your indoor units, please do not exceed the outdoor BTU capacity. Indoor Combined BTU ≤ OUTDOOR MAX BTU (Click Here for Allowed Indoor Combinations) Universal High Wall Mount: Auto-Swing for horizontal louvers • WiFi Ready • Turbo Mode • Self-Clean Function (single zone only) • Eco Mode (single zone only) • Follow Me Mode • Timer On/Off • Sleep Mode SPECIFICATIONS (CLICK) Floor Console: Mini Floor Consoles are most popular in colder climates as, during winter seasons, dual air discharge locations provide heated air at ground level, which naturally rises to fill the room. They are also a great option for attics, which often do not have the wall or ceiling space for other indoor types. Mini Floor Consoles are available in 12K Btu/h only. SPECIFICATIONS (CLICK) Floor or Ceiling Mount (Universal) : Universal Floor/Ceiling units offer flexibility in regard to location, as they can be installed horizontally on a ceiling or vertically on a wall. These units can be conveniently controlled by remote control, wall thermostat. Universal Floor/Ceiling units are available in 18K. SPECIFICATIONS (CLICK) Slim Ducted (Hidden/Concealed): Slim Ducts provide an inconspicuous solution, hidden in attics and ceiling crawl spaces, without the energy loss associated with central ducted systems. Slim Ducts offer flexibility of installation as the ducts can be directed into separate areas which are collectively controlled by one wall thermostat. For example, one slim duct can be directed to cool and heat hallways, closets, laundry rooms, and bathrooms of a home while the bedrooms themselves are controlled independently. Slim Ducts are available in 9K, 12K, 18K and 24K Btu/h models. Condensate pump built in. SPECIFICATIONS (CLICK) Ceiling Cassette: Ceiling Cassettes offer a convenient solution for offices and businesses, as they can easily fit into a standard ceiling grid (9-18k=22.5×22.5/24K+=33.07×33.07), but they can be used for almost any application, as long as enough space exists above the ceiling itself. Ceiling Cassettes provide omni-directional air flow and user-friendly Remote Control operation along with a built in condensate pump. SPECIFICATIONS (CLICK) |
DOCUMENTS

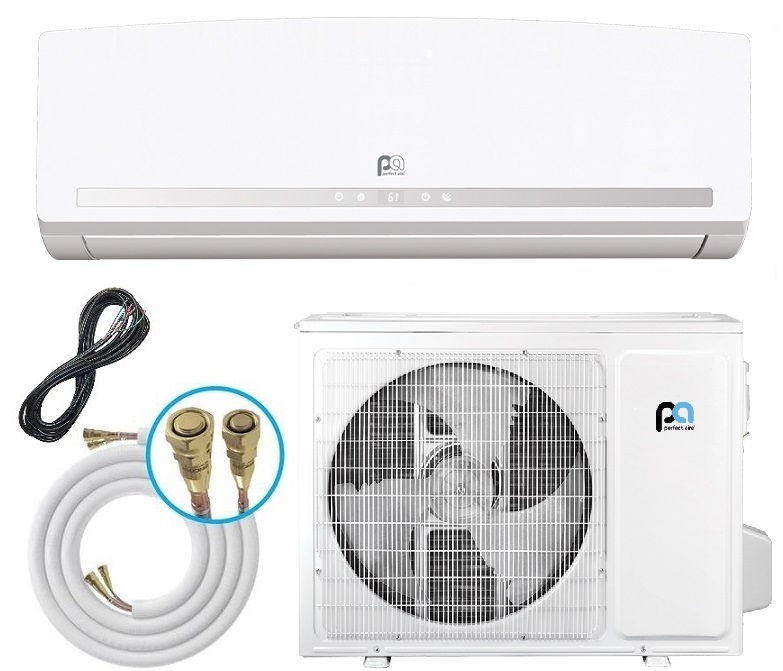

Get DIY 9000 Btu Mini Split Air Conditioner Heat Pump 19.5 SEER 115V Perfect Aire.
What Included:
(1) One- Indoor Unit with Remote & Wifi
(1) One- 25′ Quick Connect Copper Lineset & Wire
(1) One- Outdoor Unit “Pre-Charged”
Factory Warranty
(1 Year Full Replacement)
PRICE: $1,425.00 ex. tax
This Systems Heats & Cools (5F)
*Included in this “DIY” Package
*(1) One– Indoor Unit with Remote & Wifi
*(1) One- 25′ Quick Connect Copper Lineset & Wire
*(1) One– Outdoor Unit “Pre-Charged”
*Factory Warranty
(1 Year Full Replacement)
⇓ See Related Items Below For More Accessories ⇓
With no special tools or training required, the Perfect Aire DIY system simplifies the do-it-yourself installation.Follow the step-by-step instructions to connect the outdoor condenser to the indoor blower with the included 25’ line set, and you’re choosing between 4 operating modes with the included remote control in no time. Take advantage of the Smart features by downloading the wifi app to your smartphone or tablet, and you’re controlling, programming, and monitoring your mini-split from anywhere with a wireless connection.The 4 Main Operating Modes
The DIY model has a wireless smart controller. Simply download the app, connect your smartphone or tablet, and you have a virtual remote controller. Switch between modes and program run times anywhere with a wi-fi connection.
Programmable Timer and Mode Scheduling
Refrigerant Leakage Detection, Self-Cleaning, & Self-Diagnostics
Anti-Corrosive Condenser & Inverter Compressor
SKU | 3PAMSHQC09 |
---|---|
MANUFACTURER | Perfect Aire |
AHRI CERTIFICATE NUMBER | 205653641 |
CONTROLLER | Included |
INCLUDED ITEMS | 25′ Precharged Line Sets |
HSPF | 10 |
COOLING BTU | 9,000 BTU |
HEATING BTU | 9,500 BTU |
ENERGY STAR | Yes |
REFRIGERANT | R410A |
SEER | 19.5 |
EER | 12.8 |
CONDENSER STAGES | Variable Speed |
LIQUID LINE | 1/4″ |
SUCTION LINE | 3/8″ |
ELECTRICAL | 115V 1 Phase 60 Hz |
MAX BREAKER SIZE | 25 Amp |
TONNAGE | 0.75 Ton |
MINI-SPLIT TYPE | Wall Mounted |
ZONE COMPATIBILITY | Single Zone |
HEIGHT | Indoor Unit: 11″ Outdoor Unit: 23″ |
WIDTH | Indoor Unit: 32-7/8″ Outdoor Unit: 31-7/8″ |
DEPTH | Indoor Unit: 8-11/16″ Outdoor Unit: 11″ |
WEIGHT (IN LBS) | 112.0000 |
WARRANTY | 1 Year Unit Replacement |
Get PA 9000 BTU 16.5 SEER 110V Ductless Mini Split Heat Pump Air Conditioner.
What Included:
(1) Indoor Wall Mount with remote
(1) Outdoor Unit: Heats & Cools (5F)
7yr Compressor/ 7yr Parts Warranty
PRICE: $819.99 ex. tax
*The following items are included in this package:
*(1) Indoor Wall Mount with remote
Wall Mount Features Include: ˜Follow Me˜Built-in temperature sensor in the Remote Controller ˜7 Modes˜Cool, Heat, Dry, Fan, Auto, Turbo, Eco, Silence Louver Control˜UP & Down (Fixed or Swing) ˜Silver Ion Filter˜ |
*(1) Outdoor Unit: Heats & Cools (5F)˜
Specifications Features Include: ˜Gold Coated Coils˜ ˜Refrigerant Leak Detection˜Auto Restart˜ (Toshiba GMCC Compressor Inside) Heats & Cools (5F) |
*7yr Compressor/ 7yr Parts Warranty˜ |
⇓ See Related Items Below For More Accessories ⇓ |
Perfect Aire ductless mini-split systems provide efficient year-round heating and cooling, all while using much less space and producing less noise than typical furnace and air conditioner systems. The built-in inverter technology reduces energy usage by operating at lower power levels as needed instead of running at full power in short bursts, as older systems do. Besides helping consume less energy, this also means that Perfect Aire mini-split systems keep a steadier temperature than traditional heating and cooling.
Perfect Aire condensers are built to last, with corrosion-resistant coatings made to withstand years of exposure to the elements, and also feature auto-restart, self diagnostics and refrigerant leak detection. All of this while also delivering super efficiencies, based on condenser and indoor air handler models used.
The indoor air handlers are designed to blend in with your home or office’s decor with minimal space requirements. Air handlers can be installed on your wall and include wireless remote controls allowing each zone to be customized as needed to the temperature you desire, or turned off completely to further save on energy costs. The system’s Turbo operation allows it to quickly reach a desired temperature by running at maximum output.

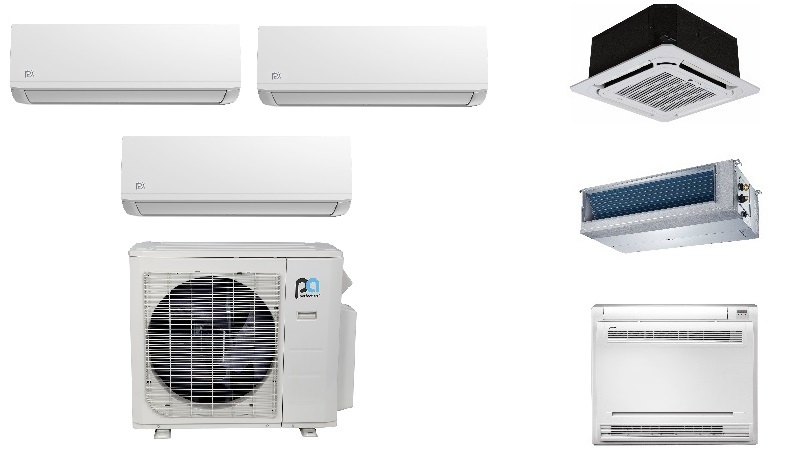

Get PA 3 Zone 23 SEER Ductless Mini Split Heat Pump Air Conditioner.
What’s Included:
(3) Indoor Wall Mounts with remotes
(1) Outdoor Unit: Heats & Cools (-13F)
7yr Compressor/ 7yr Parts Warranty
Features Include:
Gold Coated Coils
Refrigerant Leak Detection
Auto Restart
(Toshiba GMCC Compressor Inside)
PRICE: $2,629.99 ex. tax
*The following items are included in this package:
*(3) Indoor Wall Mounts with remotes
Wall Mount Specifications
Wall Mount Features Include:
˜Follow Me˜Built-in temperature sensor in the Remote Controller
˜8 Modes˜Cool, Heat, Dry, Fan, Auto, Turbo, Eco, Sleep
˜Fully Modulating Fan Speeds˜
Louver Control˜UP & Down (Fixed or Swing)
˜Carbon Filter˜Gold Coated Coils˜
*(1) Outdoor Unit: Heats & Cools (-13F)˜
Compressor Specifications
Features Include:
˜Gold Coated Coils˜
˜Refrigerant Leak Detection˜Auto Restart˜
(Toshiba GMCC Compressor Inside)
*7yr Compressor/ 7yr Parts Warranty˜
*When upgrading the indoor units, please DO NOT EXCEED the allowed indoor combinations for the compressor you selected.
See below for allowed indoor combinations.
Allowed Indoor Combinations
(Click For More Info/Specs):
Perfect Aire Ceiling Cassette 2PAMSCH12/2PAMSCH12P 2PAMSCH18/2PAMSCH18P 2PAMSCH24/2PAMSCH24P *Wireless Remote & Grill Included |
Perfect Aire Floor Console 2PAMSCONH12 *Wireless Remote Included |
Perfect Aire Floor or Ceiling 2PAMSFCH18 *Wireless Remote Included |
Perfect Aire Slim Ducted 2PAMSDH09 2PAMSDH12 2PAMSDH18 2PAMSDH24 *Wired Thermostat Included |
⇓ See Related Items Below For More Accessories ⇓
Perfect Aire multi-zone ductless mini-split systems provide efficient year-round heating and cooling, all while using much less space and producing less noise than typical furnace and air conditioner systems. The built-in inverter technology reduces energy usage by operating at lower power levels as needed instead of running at full power in short bursts, as older systems do. Besides helping consume less energy, this also means that Perfect Aire mini-split systems keep a steadier temperature than traditional heating and cooling.
Perfect Aire condensers are built to last, with corrosion-resistant coatings made to withstand years of exposure to the elements, and also feature auto-restart, self diagnostics and refrigerant leak detection. All of this while also delivering efficiencies of up to 23 SEER, based on condenser and indoor air handler models used.
The indoor air handlers are designed to blend in with your home or office’s decor with minimal space requirements. Air handlers can be installed as ceiling, floor, wall, or concealed duct units, and include wireless remote controls allowing each zone to be customized as needed to the temperature you desire, or turned off completely to further save on energy costs. The system’s Turbo operation allows it to quickly reach a desired temperature by running at maximum output.
Get DIY 18000 Btu Mini Split Air Conditioner Heat Pump 23.3 SEER Perfect Aire.
What’s Included:
(1) One- Indoor Unit with Remote & Wifi
(1) One- 25′ Quick Connect Copper Lineset & Wire
(1) One- Outdoor Unit “Pre-Charged”
(1 Year Full Replacement)
PRICE: $1,875.00 ex. tax
This Systems Heats & Cools (5F)
*Included in this “DIY” Package
*(1) One– Indoor Unit with Remote & Wifi
*(1) One- 25′ Quick Connect Copper Lineset & Wire
*(1) One– Outdoor Unit “Pre-Charged”
*Factory Warranty
(1 Year Full Replacement)
⇓ See Related Items Below For More Accessories ⇓
With no special tools or training required, the Perfect Aire DIY system simplifies the do-it-yourself installation.Follow the step-by-step instructions to connect the outdoor condenser to the indoor blower with the included 25’ line set, and you’re choosing between 4 operating modes with the included remote control in no time. Take advantage of the Smart features by downloading the wifi app to your smartphone or tablet, and you’re controlling, programming, and monitoring your mini-split from anywhere with a wireless connection.The 4 Main Operating Modes
The DIY model has a wireless smart controller. Simply download the app, connect your smartphone or tablet, and you have a virtual remote controller. Switch between modes and program run times anywhere with a wi-fi connection.
Programmable Timer and Mode Scheduling
Refrigerant Leakage Detection, Self-Cleaning, & Self-Diagnostics
Anti-Corrosive Condenser & Inverter Compressor
SKU | 3PAMSHQC18 |
---|---|
MANUFACTURER | Perfect Aire |
AHRI CERTIFICATE NUMBER | 205653643 |
CONTROLLER | Included |
INCLUDED ITEMS | 25′ Precharged Line Sets |
HSPF | 11.6 |
COOLING BTU | 18,000 BTU |
HEATING BTU | 19,000 BTU |
MAXIMUM CFM | 412 |
DECIBEL LEVEL (DBA) | Indoor – Variable 27-44 DB |
ENERGY STAR | Yes |
REFRIGERANT | R410A |
SEER | 23 |
EER | 13 |
CONDENSER STAGES | Variable Speed |
LIQUID LINE | 1/4″ |
SUCTION LINE | 1/2″ |
ELECTRICAL | 208/230V 1 Phase 60 Hz |
MAX BREAKER SIZE | 20 |
MIN. BREAKER SIZE | 15 |
TONNAGE | 1.5 Ton |
SYSTEM TONNAGE | 1.5 Ton |
MINI-SPLIT TYPE | Wall Mounted |
ZONE COMPATIBILITY | Single Zone |
HEIGHT | Indoor Unit: 12-13/16″ Outdoor Unit: 25-9/16″ |
WIDTH | Indoor Unit: 43-5/16″ Outdoor Unit: 33-7/8″ |
DEPTH | Indoor Unit: 9-5/8″ Outdoor Unit: 12-3/16″ |
WEIGHT (IN LBS) | 146.0000 |
WARRANTY | 1 Year Unit Replacement |

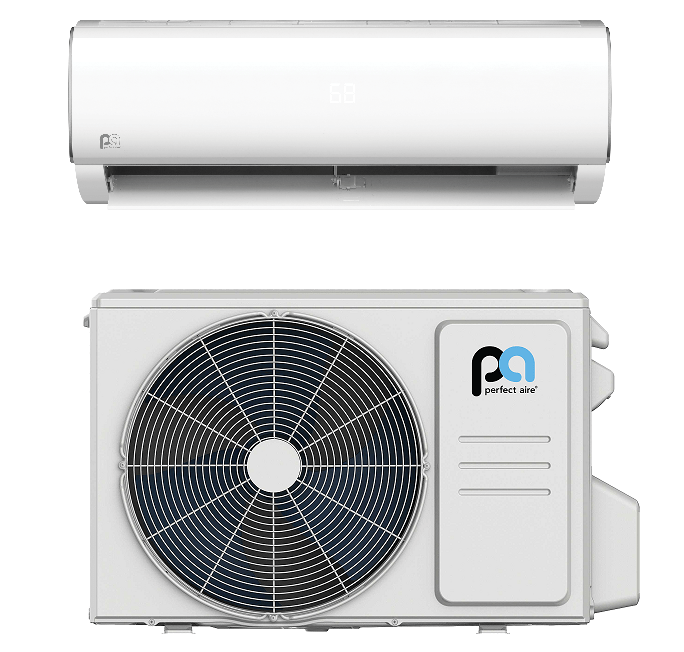

Get PA 12000 BTU 22.5 SEER Ductless Mini Split Hyper Heat Pump AC.
What’s Included:
(1) Indoor Wall Mount with remote
(1) Outdoor Unit: Heats & Cools (-22F)
7yr Compressor/ 7yr Parts Warranty
PRICE: $1,439.99 ex. tax
*The following items are included in this package:
*(1) Indoor Wall Mount with remote
Wall Mount Features Include:
˜Follow Me˜Built-in temperature sensor in the Remote Controller
˜7 Modes˜Cool, Heat, Dry, Fan, Auto, Turbo, Eco, Silence
Louver Control˜UP & Down (Fixed or Swing)
˜Silver Ion Filter˜
*(1) Outdoor Unit: Heats & Cools (-22F)˜
Specifications
AHRI
Features Include:
˜Heats & Cools (-22F/-22F) ˜Basepan Heater (Built in)˜
˜Gold Coated Coils˜ ˜Refrigerant Leak Detection
˜Auto Restart˜
(Toshiba GMCC Compressor Inside)
*7yr Compressor/ 7yr Parts Warranty˜
**You are able to UPGRADE your indoor unit to different styles!**
(Click For More Info/Specs):
Perfect Aire Ceiling Cassette 2PAMSCH12/2PAMSCH12P AHRI *Wireless Remote & Grill Included |
Perfect Aire Floor Console 2PAMSCONH12 AHRI *Wireless Remote Included |
Perfect Aire Slim Ducted 2PAMSDH12 AHRI *Wired Thermostat Included |
Bring on winter and have no fear of sub zero temperatures. Powered by HyperTek® heat technology, this outdoor mini-split unit from Perfect Aire® keeps you cool in the summer and cozy in the winter, even when the mercury plunges to -22℉. You’ll also warm up to lower gas and electric bills, since this ductless system provides energy-efficient zoned comfort. Wherever you roam in the room, ideal temperatures will follow with a 360-degree airflow panel that sends warm or cool air in your direction and a remote that puts the thermostat at your fingertips.
Perfect Aire condensers are built to last, with corrosion-resistant coatings made to withstand years of exposure to the elements, and also feature auto-restart, self diagnostics and refrigerant leak detection. All of this while also delivering super efficiencies, based on condenser and indoor air handler models used.
Sub zero weather has nothing on this indoor mini-split unit from Perfect Aire®. When the mercury plummets, you can stay cozy in extreme temperatures down to -22℉, thanks to HyperTek® heat technology. Best of all, this ductless system is all about zoned comfort, so you can heat or cool rooms to your liking with smart energy efficiency. Keep the temperature right where you want it, whether you’re lounging on the sofa or roaming through the room with 360 air control and a handy remote that acts like a portable thermostat at your fingertips.
The indoor air handlers are designed to blend in with your home or office’s decor with minimal space requirements. Air handlers can be installed on your wall and include wireless remote controls allowing each zone to be customized as needed to the temperature you desire, or turned off completely to further save on energy costs. The system’s Turbo operation allows it to quickly reach a desired temperature by running at maximum output.
Perfect Aire ductless mini-split systems provide efficient year-round heating and cooling, all while using much less space and producing less noise than typical furnace and air conditioner systems. The built-in inverter technology reduces energy usage by operating at lower power levels as needed instead of running at full power in short bursts, as older systems do. Besides helping consume less energy, this also means that Perfect Aire mini-split systems keep a steadier temperature than traditional heating and cooling.
Unit maximizes cooling or heating output capacity to attain desired temperature in the shortest amount of time
Provides year round comfort allowing unit to reverse refrigerant process in cold weather, by extracting outside heat and transferring inside. Excellent for house additions without forced air heating systems or where ductwork is not possible
Prevents cold air from blowing out at the beginning of operation by automatically regulating fan speed according to temperature
Automatically increases (cooling) or decreases (heating) 2°F/hour for first 2 hours, and holds steady for next 5 hours before switching off and returning to preset temperature for both energy savings and comfort
Improves indoor unit cooling efficiency by enabling unrestricted flow of condensate water between aluminum fins and Improves outdoor unit heating efficiency by accelerating defrosting process
Anti-corrosive coating on indoor and outdoor units withstands salty air, rain and other corrosive elements while improving heating efficiency by accelerating defrosting process
With a special built-in kit the air conditioner can be used in temperatures as low as -22°F for cooling/heating
Detects abnormal operations or part failures, display an error code on the indoor unit, and switch off automatically to protect the system. Displays EC error code on indoor unit if outdoor unit detects refrigerant leak condition
Evaporator automatically defrosts, prolonging product life and improving energy savings
Displays EC error code on indoor unit if outdoor unit detects refrigerant leak condition
Comes with a remote control with built-in room temperature sensor regulates room temperature around remote and allows the remote to become a thermostat
Nano Silver attached to filter releases Silver Ion to kill or deactivate bacteria

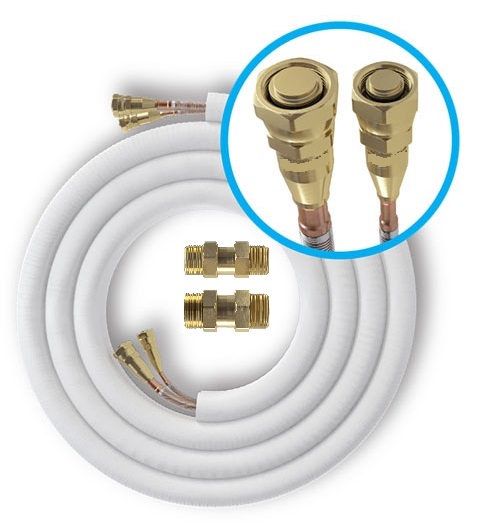

Get DIY 15′ Line Set Extension Kit for Perfect Aire DIY Systems.
This 15′ Perfect Aire Extension Kit is PRE-Charged with Freon, includes the coupling and allows you to extend the Perfect Aire Branded Single Zone & Multi Zone DIY systems.
Price: $289.99 ex. tax
This 15′ Perfect Aire Extension Kit is PRE-Charged with Freon, includes the coupling and allows you to extend the Perfect Aire Branded Single Zone & Multi Zone DIY systems.
(Please make sure not to exceed the allowed copper lengths for your model)
*The wire is not included, but can be added via the dropdown box (70′ and 80′ options).
Perfect Aire Multi Zone 2 Rooms in Minisplitwarehouse.com
Get PA 2 Zone 21.5 SEER Ductless Mini Split Hyper Heat Pump AC.
The following items are included in this package:
(2) Indoor Wall Mounts with remotes
(1) Outdoor Unit: Heats & Cools (-22F)
Price: $2,294.99 ex. tax
multi zone mini split, multi zone mini split ac, multi zone mini split air conditioner, multi zone mini split heat pump, multi zone ductless ac, multi zone ductless air conditioner, multi zone ductless heat pump
Perfect Aire mini split, Perfect Aire mini split ac, Perfect Aire mini split air conditioner, Perfect Aire mini split heat pump, Perfect Aire ductless mini split, Perfect Aire ductless ac, Perfect Aire ductless air conditioner, Perfect Aire ductless heat pump
LINK:
https://www.minisplitwarehouse.com/category/multi_zone_mini_split
https://www.minisplitwarehouse.com/category/perfect-aire
*The following items are included in this package:
*(2) Indoor Wall Mounts with remotes
Wall Mount Specifications
Wall Mount Features Include:
˜Follow Me˜Built-in temperature sensor in the Remote Controller
˜8 Modes˜Cool, Heat, Dry, Fan, Auto, Turbo, Eco, Sleep
˜Fully Modulating Fan Speeds˜
Louver Control˜UP & Down (Fixed or Swing)
˜Carbon Filter˜Gold Coated Coils˜
*(1) Outdoor Unit: Heats & Cools (-22F)˜
Compressor Specifications
Features Include:
˜Gold Coated Coils˜
˜Refrigerant Leak Detection˜Auto Restart˜
(Toshiba GMCC Compressor Inside)
*7yr Compressor/ 7yr Parts Warranty˜
*When upgrading the indoor units, please DO NOT EXCEED the allowed indoor combinations for the compressor you selected.
See below for allowed indoor combinations.
Allowed Indoor Combinations
(Click For More Info/Specs):
Indoor Unit Specs
⇓ See Related Items Below For More Accessories ⇓
Perfect Aire multi-zone ductless mini-split systems provide efficient year-round heating and cooling, all while using much less space and producing less noise than typical furnace and air conditioner systems. The built-in inverter technology reduces energy usage by operating at lower power levels as needed instead of running at full power in short bursts, as older systems do. Besides helping consume less energy, this also means that Perfect Aire mini-split systems keep a steadier temperature than traditional heating and cooling.
Perfect Aire condensers are built to last, with corrosion-resistant coatings made to withstand years of exposure to the elements, and also feature auto-restart, self diagnostics and refrigerant leak detection. All of this while also delivering efficiencies of up to 22.5 SEER, based on condenser and indoor air handler models used.
The indoor air handlers are designed to blend in with your home or office’s decor with minimal space requirements. Air handlers can be installed as ceiling, floor, wall, or concealed duct units, and include wireless remote controls allowing each zone to be customized as needed to the temperature you desire, or turned off completely to further save on energy costs. The system’s Turbo operation allows it to quickly reach a desired temperature by running at maximum output.
Perfect Aire Multi Zone 3 Rooms in Minisplitwarehouse.com Multi-zone Mini Split Air Conditioners allow you to enjoy ideal levels of comfort in the rooms you use most. Get PA 3 Zone 22 SEER Ductless Mini Split Hyper Heat Pump AC. Price: $2,941.99 ex. tax. Call us 877-770-3548 or visit our website.
LINK:
https://www.minisplitwarehouse.com/category/3-zones
https://www.minisplitwarehouse.com/category/perfect-aire
*The following items are included in this package:
*(3) Indoor Wall Mounts with remotes
Wall Mount Specifications
Wall Mount Features Include:
˜Follow Me˜Built-in temperature sensor in the Remote Controller
˜8 Modes˜Cool, Heat, Dry, Fan, Auto, Turbo, Eco, Sleep
˜Fully Modulating Fan Speeds˜
Louver Control˜UP & Down (Fixed or Swing)
˜Carbon Filter˜Gold Coated Coils˜
*(1) Outdoor Unit: Heats & Cools (-22F)˜
Compressor Specifications
Features Include:
˜Gold Coated Coils˜
˜Refrigerant Leak Detection˜Auto Restart˜
(Toshiba GMCC Compressor Inside)
*7yr Compressor/ 7yr Parts Warranty˜
*When upgrading the indoor units, please DO NOT EXCEED the allowed indoor combinations for the compressor you selected.
See below for allowed indoor combinations.
Allowed Indoor Combinations
(Click For More Info/Specs):
Indoor Unit Specs
Perfect Aire multi-zone ductless mini-split systems provide efficient year-round heating and cooling, all while using much less space and producing less noise than typical furnace and air conditioner systems. The built-in inverter technology reduces energy usage by operating at lower power levels as needed instead of running at full power in short bursts, as older systems do. Besides helping consume less energy, this also means that Perfect Aire mini-split systems keep a steadier temperature than traditional heating and cooling.
Perfect Aire condensers are built to last, with corrosion-resistant coatings made to withstand years of exposure to the elements, and also feature auto-restart, self diagnostics and refrigerant leak detection. All of this while also delivering efficiencies of up to 23 SEER, based on condenser and indoor air handler models used.
The indoor air handlers are designed to blend in with your home or office’s decor with minimal space requirements. Air handlers can be installed as ceiling, floor, wall, or concealed duct units, and include wireless remote controls allowing each zone to be customized as needed to the temperature you desire, or turned off completely to further save on energy costs. The system’s Turbo operation allows it to quickly reach a desired temperature by running at maximum output.
