Ducted Mini Split Heat Pump in Minisplitwarehouse.com Ducted Heat Pumps provide discreet air conditioned comfort. Get Midea 60000 Btu 18 SEER Ducted Mini Split Heat Pump AC. Price: $3,969.99 ex. tax. Call us 877-770-3548 or visit our website.

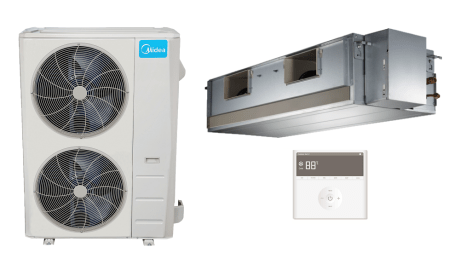

This Package Includes:

*(1) Commercial Grade Outdoor Unit
DLCLRAH58AAK


Heats and Cools (-22f/-13f)
*Built-in Basepan Heater
*Condenser High Temp Protection
*Refrigerant Leak Detection
*Quiet Operation (62.5dB)
*Gold Coated Fins
*213ft Max Piping Length
*7 Yr Compressor / 5 Yr Parts Warranty

Submittal Sheet  Brochure
User Manual  Install Manual

*(1) Commercial Grade Indoor Unit
DLFLDAH58XAK

*Gold Coated Fins
*Wired Programmable Thermostat with Ducted Indoor

(Click The Images Below for More Information on the Indoor Units)

DLFLD Product Sheet

Outdoor KEY FEATURES

  • Longer Piping Lengths
    Piping flexibility up to a total piping length of 213 ft. (65 m.)
  • Low Ambient Cooling
    With built-in Low Ambient Kit or special designed PCB, outdoor fan speeds can be changed automatically based on the temperature. The unit can run cooling operation even in low ambient temperatures.

FEATURES

  • Available in 208/230V
  • Built-in basepan heater
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 62.5 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 213 ft. (65 m)
  • Cooling operating range
    • -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range
    • -22° ~ 86° F (-30° ~ 30°C)

Compatible With:

  • DLFLDA Ducted
  • DLFLFA Console

Color: Clay


DOCUMENTS

SPECIFICATIONS

DLCLRA Outdoor Unit
Heat Pump
Size 58
Outdoor Model DLCLRAH58AAK
Electrical
Voltage-Phase-Cycle V-Ph-Hz 208/230-1-60
MCA A 35
MOCP – Fuse Rating A. 50
Operating Range
Cooling Outdoor DB Min – Max ° F (° C) -13°~122° (-25°~50°)
Heating Outdoor DB Min – Max ° F (° C) -22°~86° (-30°~30°)
Piping
Total Piping Length ft (m) 213 (65)
Lift (OD below ID) ft (m) 98 (30)
Pipe Connection Size – Liquid in (mm) 3/8 (9.52)
Pipe Connection Size – Suction in (mm) 3/4 (19)
Refrigerant
Type R410A
Charge lbs (kg) 10.19 (4.62)
Outdoor
Unit Width in (mm) 37.48 (952)
Unit Height in (mm) 52.48 (1333)
Unit Depth in (mm) 16.34 (415)
Net Weight lbs (kg) 225.09 (102.1)
Airflow CFM 4,415
Sound Pressure dB(A) 64.0

Performance with DLFSDA Ducted

DLFLDAH58XAK
ENERGY STAR® NO
Cooling System Tons 4.8
Cooling Rated Capacity Btu/h 58,000
Cooling Cap. Range Min – Max Btu/h 18,000-58,000
SEER 18.0
EER 10.0
Heating Rated Capacity (47° F) Btu/h 62,000
Heating Rated Capacity (17° F) Btu/h 37,600
Heating Maximum Capacity (5° F) Btu/h 35,000
Heating Cap. Range Min – Max Btu/h 12,000-63,000
HSPF 9.0
COP (47° F) W/W 3.6
COP (17° F) W/W 2.62
COP (5° F) W/W 1.91

Performance with DLFSFA Console

DLFLFAH58XAK
ENERGY STAR® NO
Cooling System Tons 4.5
Cooling Rated Capacity Btu/h 54,000
Cooling Cap. Range Min – Max Btu/h 18,000-58,000
SEER 18.0
EER 9.8
Heating Rated Capacity (47° F) Btu/h 60,000
Heating Rated Capacity (17° F) Btu/h 39,000
Heating Maximum Capacity (5° F) Btu/h 35,000
Heating Cap. Range Min – Max Btu/h 12,000-63,000
HSPF 10.5
COP (47° F) W/W 3.6
COP (17° F) W/W 2.62
COP (5° F) W/W 1.84

Indoor KEY FEATURES

  • Vertical or Horizontal Installation
    Designed for maximum installation flexibility with the built-in secondary drain pan which allows the unit to be mounted vertically for either a floor or ceiling-concealed installation, depending on existing conditions for sizes 36 & 48 only.
  • Built-In Codensate Lift Pump
    Supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit.

FEATURES

  • Available in 208/230V
  • Up to 18.0 SEER and up to 12.0 HSPF when paired with DLCLRA outdoor unit.
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Vertical (sizes 36 & 48) or horizontal installation
  • Up to 0.8 in WG
  • Rear or bottom return (sizes 36 & 48)
  • Constant CFM operation on sizes 36 & 48 only
  • Built-in condensate lift pump
  • Follow Me (senses temperature at optional handheld remote)
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 38.5 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins

Compatible With:

  • DLCLRA Outdoor Unit Single Zone

Color: None

DOCUMENTS

SPECIFICATIONS

DLFSDA Ducted
Heat Pump
System
Size 58
Indoor Model DLFLDAH58XAK
Electrical
Voltage-Phase-Cycle V-Ph-Hz 208/230-1-60
Power Supply Indoor unit powered from outdoor unit
MCA A. 3.65
Operating Range
Cooling Indoor DB Min – Max ° F (° C) 63~90 (17~32)
Heating Indoor DB Min – Max ° F (° C) 32~86 (0~30)
Piping
Pipe Connection Size – Liquid in (mm) 3/8 (9.52)
Pipe Connection Size – Suction in (mm) 3/4 (19)
Indoor
Unit Width in (mm) 55.12 (1400)
Unit Height in (mm) 17.32 (440)
Unit Depth in (mm) 33.78 (858)
Net Weight lbs (kg) 163 (74)
Number of Fan Speeds 3
Airflow (lowest to highest) CFM 1260/1710/2150
Sound Pressure (lowest to highest) dB(A) 51/54/57
Max. Static Pressure in (WG) 0.80
Field Drain Pipe Size O.D. in (mm) 1 (25.4)
