Midea 48000 BTU 17.4 SEER Ducted in Minisplitwarehouse.com The most popular types of air conditioners are ducted and split system. Get Midea 48000 BTU 17.4 SEER Ducted Mini Split Heat Pump AC. Price: $3,139.99 ex. tax. Call us 877-770-3548 or visit our website.

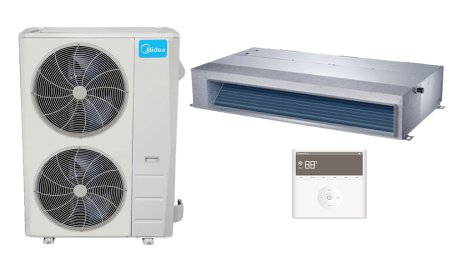

*This Package Includes:

*(1) Outdoor Unit 48,000Btu (DLCLR)AH48AAK
PRE-CHARGED with R410a Freon

DLCLR Features Include:
∼Heats
 & Cools (-22°F/-13°F)Basepan Heater (Built in)

∼Golden Hydrophilic Fins∼7yr Compressor 5yr Parts Warranty
Click the Buttons below for detailed product info:

Product Brochure Compressor Specifications

*(1) Indoor Unit 48,000Btu DLFLDAH48XAK
(Built in Condensate Pump)

DLFLD Slim Ducted
Specifications
AHRI Certificate



Copper Lines & Wires Not Included!
Please see the drop down boxes above to add copper lines & wires.
Requires 2 Sets of wires, 1-(3 wire) for Power Indoor to Outdoor & 1-(3 wire) For Signal




Mini Split Reviews | Compare toHome Depot Mini Splits, Fujistu Mini Splits, Mitsubishi Mini Splits, LG Mini Splits, Samsung Mini Splits, Sanyo Mini Splits, Ramsond Mini Splits, Trane Mini Splits, Panasonic Mini Splits, Lennox Mini Splits, Questside Mini Splits, Daikin Mini Splits, Toshiba Mini Splits, Carrier Mini Splits, Hitachi Mini Splits, Lowes Mini Splits, Gree Mini Splits, Senville Mini Splits, Thermocore Mini Splits

Midea Series is Energy Saving
DC Inverter 180 degree Sine Wave, Super DC Inverter Air Conditioner adopts the advanced 180 degree Sine Wave. DC Inverter driving technology and Brushless DC (BLDC) motor (Revolution Variable) compressor. More energy-saving, more consistent and quieter than 120 degree Square Wave DC Inverter.

Outdoor KEY FEATURES

  • Longer Piping Lengths
    Piping flexibility up to a total piping length of 213 ft. (65 m.)
  • Low Ambient Cooling
    With built-in Low Ambient Kit or special designed PCB, outdoor fan speeds can be changed automatically based on the temperature. The unit can run cooling operation even in low ambient temperatures.

FEATURES

  • Available in 208/230V
  • Built-in basepan heater
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 62.5 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 213 ft. (65 m)
  • Cooling operating range
    • -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range
    • -22° ~ 86° F (-30° ~ 30°C)

Compatible With:

  • DLFLCA Cassette
  • DLFLDA Ducted
  • DLFLFA Console

Color: Clay


DOCUMENTS

SPECIFICATIONS

DLCLRA Outdoor Unit
Heat Pump
Size 48
Outdoor Model DLCLRAH48AAK
Electrical
Voltage-Phase-Cycle V-Ph-Hz 208/230-1-60
MCA A 35
MOCP – Fuse Rating A. 50
Operating Range
Cooling Outdoor DB Min – Max ° F (° C) -13°~122° (-25°~50°)
Heating Outdoor DB Min – Max ° F (° C) -22°~86° (-30°~30°)
Piping
Total Piping Length ft (m) 213 (65)
Lift (OD below ID) ft (m) 98 (30)
Pipe Connection Size – Liquid in (mm) 3/8 (9.52)
Pipe Connection Size – Suction in (mm) 5/8 (16)
Refrigerant
Type R410A
Charge lbs (kg) 9.26 (4.2)
Outdoor
Unit Width in (mm) 37.48 (952)
Unit Height in (mm) 52.48 (1333)
Unit Depth in (mm) 16.34 (415)
Net Weight lbs (kg) 217.4 (98.6)
Airflow CFM 4,500
Sound Pressure dB(A) 62.5

Performance with DLFLCA Cassette

DLFLCAH48XAK
ENERGY STAR® NO
Cooling System Tons 4.0
Cooling Rated Capacity Btu/h 48,000
Cooling Cap. Range Min – Max Btu/h 9,000~50,000
SEER 16.8
EER 9.5
Heating Rated Capacity (47° F) Btu/h 50,000
Heating Rated Capacity (17° F) Btu/h 35,000
Heating Maximum Capacity (17° F) Btu/h 34,000
Heating Cap. Range Min – Max Btu/h 10,000~55,000
HSPF 11.0
COP (47° F) W/W 3.6
COP (47° F) W/W 2.62
COP (5° F) W/W 1.84

Performance with DLFSDA Ducted

DLFLDAH48XAK
ENERGY STAR® NO
Cooling System Tons 4.0
Cooling Rated Capacity Btu/h 48,000
Cooling Cap. Range Min – Max Btu/h 9,000~50,000
SEER 17.4
EER 9.2
Heating Rated Capacity (47° F) Btu/h 49,500
Heating Rated Capacity (17° F) Btu/h 33,400
Heating Maximum Capacity (5° F) Btu/h 34,000
Heating Cap. Range Min – Max Btu/h 10,000~55,000
HSPF 10.3
COP (47° F) W/W 3.6
COP (17° F) W/W 2.62
COP (5° F) W/W 1.84

Performance with DLFSFA Console

DLFLFAH48XAK
ENERGY STAR® NO
Cooling System Tons 4.0
Cooling Rated Capacity Btu/h 48,000
Cooling Cap. Range Min – Max Btu/h 9,000~50,000
SEER 17.8
EER 9.3
Heating Rated Capacity (47° F) Btu/h 50,000
Heating Rated Capacity (17° F) Btu/h 35,000
Heating Maximum Capacity (5° F) Btu/h 34,000
Heating Cap. Range Min – Max Btu/h 10,000~55,000
HSPF 11
COP (47° F) W/W 3.6
COP (17° F) W/W 2.62
COP (5° F) W/W 1.84

Indoor KEY FEATURES

  • Vertical or Horizontal Installation
    Designed for maximum installation flexibility with the built-in secondary drain pan which allows the unit to be mounted vertically for either a floor or ceiling-concealed installation, depending on existing conditions for sizes 36 & 48 only.
  • Built-In Codensate Lift Pump
    Supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit.

FEATURES

  • Available in 208/230V
  • Up to 17.4 SEER and up to 12.0 HSPF when paired with DLCLRA outdoor unit.
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Vertical (sizes 36 & 48) or horizontal installation
  • Up to 0.8 in WG
  • Rear or bottom return (sizes 36 & 48)
  • Constant CFM operation on sizes 36 & 48 only
  • Built-in condensate lift pump
  • Follow Me (senses temperature at optional handheld remote)
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 38.5 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins

Compatible With:

  • DLCLRA Outdoor Unit Single Zone

Color: None

DOCUMENTS

SPECIFICATIONS

DLFSDA Ducted
Heat Pump
System
Size 48
Indoor Model DLFLDAH48XAK
Electrical
Voltage-Phase-Cycle V-Ph-Hz 208/230-1-60
Power Supply Indoor unit powered from outdoor unit
MCA A. 3.2
Operating Range
Cooling Indoor DB Min – Max ° F (° C) 63~90 (17~32)
Heating Indoor DB Min – Max ° F (° C) 32~86 (0~30)
Piping
Pipe Connection Size – Liquid in (mm) 3/8 (9.52)
Pipe Connection Size – Suction in (mm) 5/8 (16)
Indoor
Unit Width in (mm) 47.24 (1200)
Unit Height in (mm) 11.81 (300)
Unit Depth in (mm) 34.41 (874)
Net Weight lbs (kg) 119.71 (54.3)
Number of Fan Speeds 3
Airflow (lowest to highest) CFM 720/1030/1230
Sound Pressure (lowest to highest) dB(A) 46/49.5/50.5
Max. Static Pressure in (WG) 0.64
Field Drain Pipe Size O.D. in (mm) 1 (25.4)
