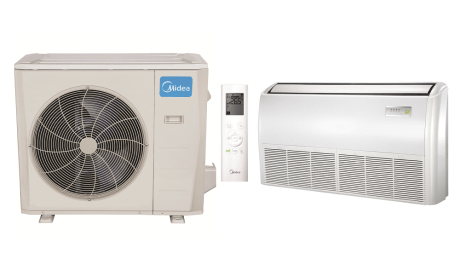

Floor Ceiling Mount Mini Split in Minisplitwarehouse.comWe can help you decide what suits your needs. Get Midea 36000 BTU 16 SEER Floor Ceiling Mount Mini Split Heat Pump AC. Price: $2,449.99 ex. tax. Call us 877-770-3548 or visit our website.

*This Package Includes:

*(1) Indoor Unit : (DLFLF)AH36XAK

Premier Floor/Ceiling Features Include:
˜Outside Air Intake˜ Outside air can be brought into the room through the connection available on the indoor unit which helps meet the ventilation requirement. (Only on sizes 18-24)
˜6 Modes˜ Cool, Heat, Dry, Fan, Auto, Heating Setback(46f)
˜Fully Modulating Fan Speeds˜Louver Control˜ (fixed or swing)
˜Follow Me˜ Uses remote control as the sensor.
˜Carbon Filter˜Gold Coated Coils˜
(No Condensate Pump)

*(1) Outdoor Unit: (DLCLR)AH36AAK

DLCLR Features Include:
∼Heats & Cools (-22°F/-13°F)∼Basepan Heater (Built in)∼
∼Golden Hydrophilic Fins∼7yr Compressor 5yr Parts Warranty
Click the Buttons below for detailed product info:

Product Brochure Compressor Specifications
DLFLF – Floor / Ceiling (16 SEER)

Mini Split Reviews | Compare toHome Depot Mini Splits, Fujistu Mini Splits, Mitsubishi Mini Splits, LG Mini Splits, Samsung Mini Splits, Sanyo Mini Splits, Ramsond Mini Splits, Trane Mini Splits, Panasonic Mini Splits, Lennox Mini Splits, Questside Mini Splits, Daikin Mini Splits, Toshiba Mini Splits, Carrier Mini Splits, Hitachi Mini Splits, Lowes Mini Splits, Gree Mini Splits, Senville Mini Splits, Thermocore Mini Splits

Midea Series is Energy Saving
DC Inverter 180 degree Sine Wave, Super DC Inverter Air Conditioner adopts the advanced 180 degree Sine Wave. DC Inverter driving technology and Brushless DC (BLDC) motor (Revolution Variable) compressor. More energy-saving, more consistent and quieter than 120 degree Square Wave DC Inverter.

Indoor KEY FEATURES

  • Outside Air Intake
    Outside air can be brought into the room through the connection available on the indoor unit which helps meet the ventilation air requirements.
  • Flexible installation
    Ability to be installed on the floor or ceiling depending on the application.

FEATURES

  • Available in 208/230V
  • Up to 16.0 SEER and 11.0 HSPF when paired with DLCLRA outdoor unit
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Auto-restart function
  • Capable to be mounted on floor or ceiling
  • Louver control (fixed or swing)
  • Three fan speeds
  • Air discharge from top and bottom (size 12 only)
  • Follow Me (senses temperature at handheld remote)
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 43 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins

Compatible With:

  • DLCLRA Outdoor Unit Single Zone

Color: White

DOCUMENTS

SPECIFICATIONS

DLFLFA Console
Heat Pump
System
Size 36
Indoor Model DLFLFAH36XAK
Electrical
Voltage-Phase-Cycle V-PhHz 208/230-1-60
Power Supply Indoor unit powered from outdoor unit
MCA 1.3
Operating Range
Cooling Indoor DB Min – Max ° F (° C) 63~90 (17~32)
Heating Indoor DB Min – Max ° F (° C) 32~86 (0~30)
Piping
Pipe Connection Size – Liquid in (mm) 3/8 (9.52)
Pipe Connection Size – Suction in (mm) 5/8 (16)
Indoor
Unit Width in (mm) 50.59 (1285)
Unit Height in (mm) 9.25 (235)
Unit Depth in (mm) 26.57 (675)
Net Weight lbs (kg) 69 (31.3)
Number of Fan Speeds 3
Airflow (lowest to highest) CFM 638/917/1037
Sound Pressure (lowest to highest) dB(A) 43/49/54
Air Throw Data ft (m) 33(10)
Field Drain Pipe Size O.D. in (mm) 1 (25.4)

Outdoor KEY FEATURES

  • Longer Piping Lengths
    Piping flexibility up to a total piping length of 213 ft. (65 m.)
  • Low Ambient Cooling
    With built-in Low Ambient Kit or special designed PCB, outdoor fan speeds can be changed automatically based on the temperature. The unit can run cooling operation even in low ambient temperatures.

FEATURES

  • Available in 208/230V
  • Built-in basepan heater
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 62.5 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 213 ft. (65 m)
  • Cooling operating range
    • -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range
    • -22° ~ 86° F (-30° ~ 30°C)

Compatible With:

  • DLFLCA Cassette
  • DLFLDA Ducted
  • DLFLFA Console

Color: Clay
