Hyper Heat Pump AC in Minisplitwarehouse.com Why shop anywhere else when we have the best deals around? Get Midea 12000 Btu 110v 20 SEER Ductless Mini Split Hyper Heat Pump. Price: $1,179.99 ex. tax. Call us 877-770-3548 or visit our website.

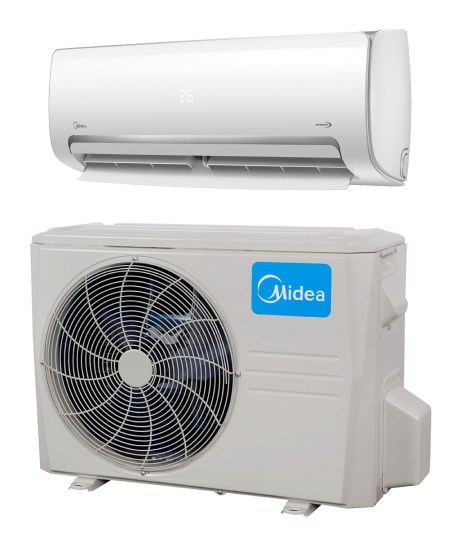

*This Midea Mini Split Package Includes:

*(1) Indoor Unit : (DLFSH)

DLFSH Features Include:
˜ECO Mode˜
˜Follow Me˜ ˜9 Modes˜
˜Fully Modulating Fan Speeds˜
Louver Control˜ ˜Follow Me˜
˜Carbon Filter˜Gold Coated Coils˜

*(1) Outdoor Unit: (DLCSR)
Cut Sheet/Specification
DLCSR Features Include:
˜Heats & Cools (-13F/-13F)˜˜Basepan Heater (Built in
˜Gold Coated Coils˜ ˜Refrigerant Leak Detection˜
˜Auto Restart˜



(Click For More Info/Specs):

DLFSH Wall Mount
Specifications





Outdoor KEY FEATURES

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -13° F (-25° C), making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.

FEATURES

  • Available in 110v
  • Built-in basepan heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 54.6 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 82 ~ 164 ft. (25 ~ 50 m.)
  • Cooling operating range
    • -13° ~ 122° F
  • Heating operating range
    -13° ~ 86° F

Compatible With:

  • DLFSHA High Wall (110v)

Color: Clay


DOCUMENTS

SPECIFICATIONS

DLCSRA Outdoor Unit
Heat Pump
Size 12
Outdoor Model DLCSRAH12AAJ
Electrical
Voltage-Phase-Cycle V-Ph-Hz 110v-1-60
Power Supply Indoor unit powered from outdoor unit
MCA A 15
MOCP – Fuse Rating A. 20
Operating Range
Cooling Outdoor DB Min – Max ° F (° C) -13°~122° (-25°~50°)
Heating Outdoor DB Min – Max ° F (° C) -13°~86° (-25°~30°)
Piping
Total Piping Length ft (m) 82 (25)
Lift (OD below ID) ft (m) 32 (10)
Pipe Connection Size – Liquid in (mm) 1/4 (6.35)
Pipe Connection Size – Suction in (mm) 1/2 (12.7)
Refrigerant
Type R410A
Charge lbs (kg) 2.64 (1.15)
Outdoor
Unit Width in (mm) 31.5 (800)
Unit Height in (mm) 21.81 (554)
Unit Depth in (mm) 13.11 (333)
Net Weight lbs (kg) 80.7 (36.6)
Airflow CFM 1,177
Sound Pressure dB(A) 54.7

Performance with DLFSHA High Wall

DLFSHAH12XAJ
ENERGY STAR® YES
Cooling System Tons 1.0
Cooling Rated Capacity Btu/h 12,000
Cooling Cap. Range Min – Max Btu/h 3,500~12,200
SEER 20.4
EER 12.5
Heating Rated Capacity (47° F) Btu/h 11,800
Heating Rated Capacity (17° F) Btu/h 7,200
Heating Maximum Capacity (17° F) Btu/h 8,000
Heating Maximum Capacity (5° F) Btu/h 7,800
Heating Cap. Range Min – Max Btu/h 1,400~12,400
HSPF 11.0
COP (47° F) W/W 3.20
COP (17° F) W/W 2.60
COP (5° F) W/W 1.97

Indoor KEY FEATURES

  • ECO Mode
    The intelligent 8-hour night cycle program saves up to 60% of energy to make it more comfortable at night when sleeping.
  • Follow Me
    Built-in temperature sensor in the Remote Controller will sense its surrounding temperature and adjust the room temperature more accurately to provide comfort.

FEATURES

  • Available in 110V
  • Up to 24.7 SEER and 11.0 HSPF when paired with the DLCSRA outdoor unit
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Turbo Mode
  • Four fan speeds
  • Sleep Mode
  • ECO Mode
  • Up-down louver control (fixed or swing)
  • Follow Me (senses temperature at handheld remote)
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 25 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
